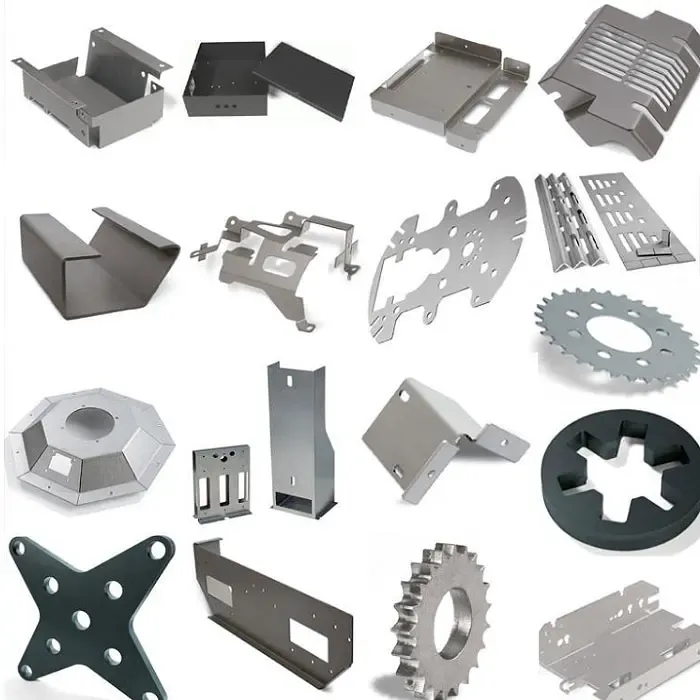

Custom Metal Stamping Services
Our CAM integrated CNC stamping facilities produce custom metal stamping parts according to your unique requirements and design specifications.
We make the custom metal stamping dies at our own machining factory so they can be crafted with fine detail. A team of expert engineers handles complex designs with accuracy and precision, which is what keeps a progressive tool running for millions of hits without drift.
What This Facility Gives You
ISO 21223:2019
Quality control standard applied to our custom stamping work.
Tolerance to 0.01 mm
Linear tolerance down to +/-0.01 mm, which is 0.004 inches.
50+ Material Options
More than fifty metal and alloy options available for stamped parts.
Multiple Operations
Stamping, punching, blanking, bending and many more operations in one tool.
Production Capabilities
| Maximum part size | 1500 x 1000 mm (5 x 3 ft) |
|---|---|
| Thickness range | 0.25 to 6 mm |
| Tonnage capacity | 20 to 200 tons |
| Linear tolerance | +/-0.01 mm (0.004 in) |
| Angular tolerance | +/-1 degree |
| Minimum spacing between holes | 1 to 0.5 x material thickness |
| Edge to feature | 0.4 mm |
| Presses | Advanced CNC metal stamping machines with automated punch presses |
Custom Metal Stamping FAQ
How close can holes be to each other?
Minimum spacing between holes is one to half of the material thickness, and edge to feature distance is 0.4 mm. Designs tighter than that risk tearing the material during the hit.
What is the largest stamped part you make?
Up to 1500 x 1000 mm, which is roughly 5 x 3 feet.
Who owns the tooling?
Tooling terms are agreed at quotation. Tell us at enquiry stage whether you want tooling ownership written into the order.
Related Pages
Send Your Stamping Design
Flat pattern or formed part drawing, material, thickness and annual quantity.
