Engineering Guide: Steel Metal Fabrication Services
Engineering Precision: The Foundation of Mission-Critical Fabrication
In high-stakes industries like aerospace, defense, and Olympic infrastructure, precision isn’t optional—it’s non-negotiable. A deviation of 0.05mm in a structural component can compromise safety, functionality, and regulatory compliance. At Wuxi Lead Precision Machinery, we engineer solutions where tolerances are defined by mission requirements, not industry averages. Our partnership with clients begins at concept stage, ensuring every dimension, material property, and finish meets your exact specifications—zero compromises, zero defects.
Why Precision Matters in High-Stakes Applications
Safety Criticality: Military equipment and Olympic structures demand absolute reliability. A single flawed weld or bent angle can trigger catastrophic failure under extreme loads.
Regulatory Compliance: Projects for the U.S. Department of Defense, aerospace OEMs, or Olympic infrastructure require adherence to ISO 9001, AS9100, MIL-STD-810G, and EN 1090 standards.
Cost of Failure: Rework or recalls in high-value projects can cost millions—precision prevents these risks while ensuring on-time delivery.
“Our components for the 2008 Beijing Olympics National Stadium met ±0.05mm tolerances across 12,000+ structural elements—zero defects in 18 months of production.”
Zero-Defect Manufacturing: Our Commitment to Perfection
We integrate advanced quality control at every stage—from material inspection to final packaging—exceeding ISO 9001 standards. Our AI-driven systems monitor tolerances in real time, while 100% CMM (Coordinate Measuring Machine) inspections ensure traceability for critical applications.
| Process | Industry Standard Tolerance | Wuxi Lead Precision Achieved | Critical Applications |
|---|---|---|---|
| Laser Cutting | ±0.1 mm | ±0.03 mm | Aerospace, Medical Devices |
| Bending | ±1.0° | ±0.3° | Military Vehicles |
| Hole Placement | ±0.2 mm | ±0.05 mm | Robotics & Automation |
| Welding (TIG) | ±0.5 mm | ±0.1 mm | Pressure Vessels |
| Powder Coating | ±10 μm thickness | ±5 μm thickness | Automotive & Marine |
“Tighter tolerances aren’t just achievable—they’re routine for us. Our advanced CNC tooling and in-process laser measurement systems eliminate secondary machining, reducing lead times by 30% while maintaining ±0.03mm accuracy.”
Material Integrity: Traceability You Can Trust
We source materials exclusively from certified suppliers (ASTM, EN, JIS standards), with full traceability from raw material to finished part. Each batch includes mill certificates, third-party testing reports, and chemical composition analysis. For defense projects, we comply with MIL-STD-1316 for material traceability, ensuring every component meets military-grade reliability standards.
“When supplying structural steel for U.S. Army armored vehicles, we track every heat lot through our ERP system—providing real-time documentation for audit readiness.”
Integrated Process Control: Seamless Precision from Start to Finish
As a true one-stop shop, we eliminate tolerance stack-up risks by controlling every process in-house:
Laser Cutting: Optimized edge quality ensures precise bending without deformation.
Bending: CNC-controlled tooling compensates for material springback, maintaining ±0.3° accuracy.
Welding: TIG/MIG processes calibrated to minimize distortion (±0.1mm joint alignment).
Powder Coating: Electrostatic application with ±5μm thickness control—no dimensional drift.
“Our integrated workflow ensures your part meets specifications from first cut to final finish—no handoffs, no surprises.”
24/7 Engineering Support: Your Partner Through Every Phase
Your project’s success is our priority—around the clock. Our global engineering team responds to urgent requests within 2 hours, providing:
Real-time design feedback for tolerance optimization
Expedited prototyping (48-hour turnaround for critical components)
Emergency production adjustments for last-minute design changes
“When a defense contractor needed 500 precision brackets for a classified project with a 72-hour deadline, we delivered 100% compliant parts in 48 hours—no compromises on quality or timeline.”
Wuxi Lead Precision Machinery: Where precision engineering meets mission-critical reliability.
We don’t just manufacture—we collaborate. From Olympic infrastructure to defense systems, your success is our standard.
Precision Specs & Tolerances
Technical Capabilities & Tolerances: Precision Engineered for Your Success
At Wuxi Lead Precision Machinery, we don’t just manufacture—we engineer solutions. As your strategic partner, we guarantee adherence to your exact specifications through zero-defect manufacturing philosophy, Olympic-grade precision standards, and 24/7 technical collaboration. Every steel fabrication project undergoes rigorous engineering validation to ensure dimensional accuracy, structural integrity, and finish perfection—no compromises, no exceptions.
Precision Machinery & Process Control
Our investment in cutting-edge equipment ensures repeatable excellence across all fabrication stages:

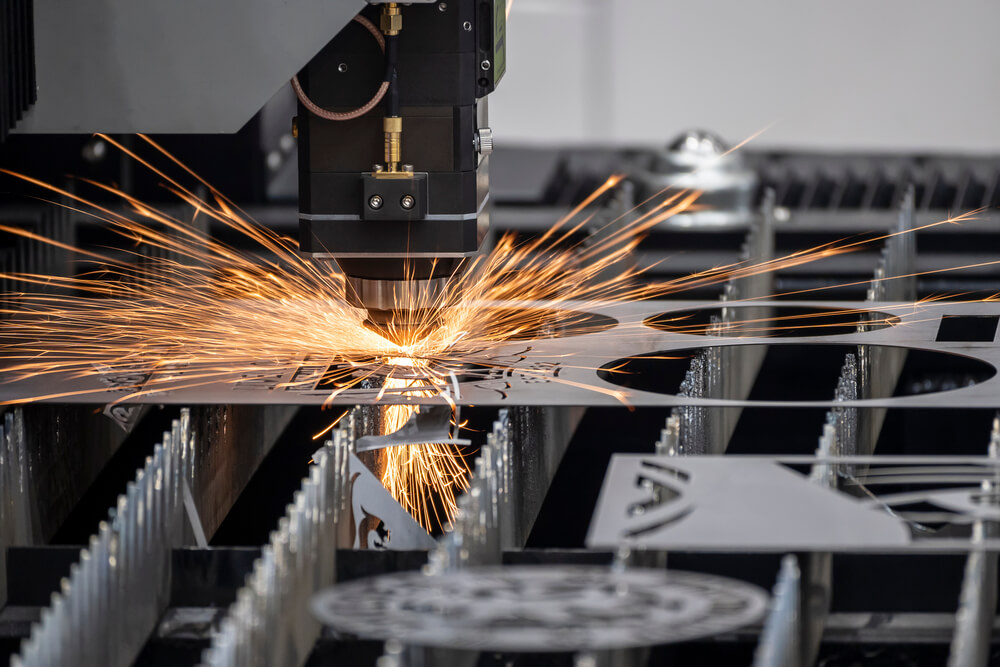

3/4/5 Axis CNC Laser Cutting Systems: Industry-leading Trumpf/Amada machines delivering micron-level accuracy for complex geometries (0.05mm edge quality on 0.5–25mm steel).

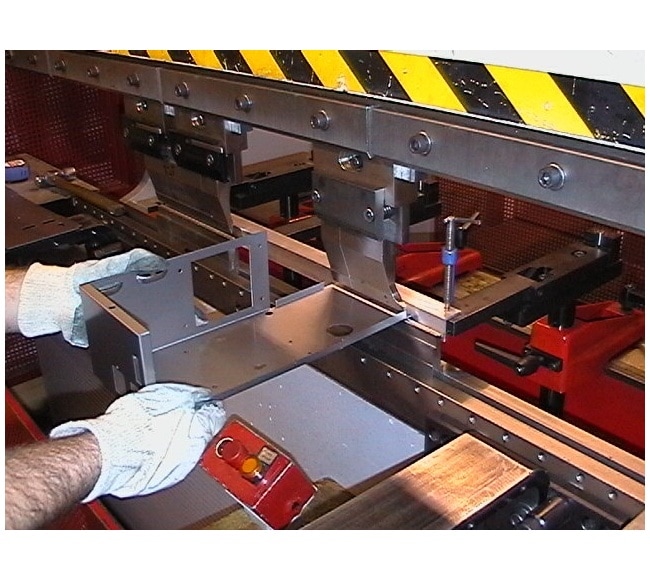

CNC Press Brakes with Real-Time Angle Compensation: Servo-controlled tooling with ±0.01° repeatability for distortion-free bends across all material thicknesses.
Automated TIG/MIG Welding Cells: Robotic arms with arc monitoring for zero-defect welds (ASME Section IX compliant), minimizing heat distortion and ensuring structural consistency.
Electrostatic Powder Coating Lines: Fully automated pre-treatment, powder application, and curing systems with ±2µm thickness consistency for corrosion resistance and aesthetic perfection.
Tolerance Standards: Beyond Industry Benchmarks
We exceed standard industry tolerances through precision-calibrated equipment and process control. All tolerances comply with ASME Y14.5 and ISO 2768-mK standards. Tighter tolerances available for aerospace, medical, and automotive applications.
| Process | Standard Tolerance | Precision Tolerance |
|---|---|---|
| Laser Cutting (Holes & Edges) | ±0.1 mm | ±0.05 mm |
| CNC Bending (Angle) | ±0.5° | ±0.2° |
| TIG/MIG Welding (Dimensional) | ±0.2 mm | ±0.1 mm |
| Powder Coating Thickness | 60–80 µm ±10 µm | 60–80 µm ±5 µm |
Note: All tolerances validated through in-process laser scanning and CMM verification. Custom tolerances (e.g., ±0.02mm for critical aerospace features) achievable via secondary machining or specialized tooling.
Quality Assurance: Zero Defects, Olympic Grade
Our quality framework ensures every part meets or exceeds your specifications:
Certified Material Traceability: Full material certifications (Mill Test Reports) for all steel (CRS/HRS), aluminum, and galvanized substrates—traceable to ISO 10474.
CMM Inspection Protocol: Third-party calibrated Coordinate Measuring Machines verify critical dimensions to 0.001 mm resolution, with automated GD&T analysis per ASME Y14.5.
In-Process Quality Monitoring: AI-driven real-time data collection at every stage (cutting, bending, welding, coating) with predictive defect detection.
100% Inspection for Critical Components: Mandatory dimensional checks for medical, automotive, and defense applications—zero defects shipped.
24/7 Customer Partnership
We treat your project as our own—from design phase to final delivery:
Dedicated Technical Support: Our senior engineers are available 24/7 for design-for-manufacturability (DFM) reviews, tolerance optimization, and urgent issue resolution.
Transparent Progress Tracking: Live project dashboards with daily updates, inspection reports, and shipment tracking via our client portal.
Flexible Scaling: Seamlessly transition from prototypes to high-volume production without retooling delays or quality compromises.
“Precision is not a feature—it’s our standard. When you partner with Wuxi Lead, you gain a technical ally committed to your success.”
— Wuxi Lead Precision Machinery Engineering Team
Material & Finish Options
Material Selection & Finishes: Precision Engineering for Optimal Performance
Selecting the right material and finish is foundational to achieving performance, cost efficiency, and longevity in your fabricated components. At Wuxi Lead Precision Machinery, we collaborate with your engineering and procurement teams to optimize this decision—ensuring your design aligns with manufacturing realities while meeting stringent functional requirements. Our one-stop shop model guarantees seamless integration from material selection through finishing, eliminating supply chain fragmentation and ensuring consistent quality.
Material Selection: Matching Properties to Application Needs
Material choice directly impacts fabrication precision, cost, and end-use performance. Below is a comparative analysis of our core materials, highlighting key considerations for laser cutting, bending, welding, and finishing processes:
| Material | Key Properties | Typical Applications | Fabrication Considerations | Cost Impact |
|---|---|---|---|---|
| CRS (Cold Rolled Steel) | Uniform thickness, smooth surface, high dimensional stability, excellent weldability | Automotive brackets, precision enclosures, medical devices | Laser cutting: ±0.05mm tolerance; minimal springback during bending; requires clean surfaces for welding | Moderate upfront cost; lower secondary machining needs reduce total lifecycle cost |
| HRS (Hot Rolled Steel) | Rough surface scale, variable thickness, high tensile strength | Structural frames, heavy machinery bases | Laser cutting: ±0.1mm tolerance; surface scale requires pre-processing; bending may require compensation for springback | Lowest base cost; potential secondary machining (e.g., grinding) increases total cost |
| Aluminum (6061/7075) | Lightweight, corrosion-resistant, high strength-to-weight ratio | Aerospace components, marine hardware, electronics housings | Laser cutting: high thermal conductivity requires precise power control; bending requires grain direction analysis; TIG welding preferred | Higher base cost than steel; lighter weight reduces shipping costs and improves performance in dynamic applications |
| Galvanized Steel | Zinc-coated for corrosion resistance, durable in outdoor environments | Outdoor enclosures, HVAC ducts, agricultural equipment | Laser cutting: zinc vaporization requires fume extraction; bending may damage coating; welding needs zinc-specific electrodes | Moderate cost; zinc coating adds ~10-15% vs. CRS but eliminates long-term corrosion maintenance |
Engineering Insight: For applications requiring tight tolerances (e.g., ±0.05mm), CRS is our recommended baseline. HRS is ideal for structural applications where surface finish is secondary to strength. Aluminum requires specialized tooling for bending due to its elastic modulus, while galvanized steel demands strict process controls during laser cutting to prevent zinc contamination.
Surface Finish Options: Enhancing Durability & Aesthetics
Finishes are not merely cosmetic—they directly influence corrosion resistance, wear performance, and regulatory compliance. We tailor finishes to your material and application, ensuring optimal performance without compromising dimensional accuracy:
| Finish Type | Best Suited For | Process Notes | Performance Benefits | Cost Impact |
|---|---|---|---|---|
| Powder Coating | Steel, Galvanized Steel | Electrostatic application; cured at 180–200°C; 50–100μm thickness standard | UV-resistant, chemical-resistant, 5–10x longer corrosion life vs. paint; color consistency | Moderate ($0.50–$2.50/sq.ft); complex colors or textures increase cost by 20–30% |
| Anodizing | Aluminum (Type II/III) | Electrochemical oxidation; 15–25μm standard; hard coat up to 50μm | 3x wear resistance vs. untreated aluminum; electrical insulation; dye options | Higher than powder coating ($1.50–$5.00/sq.ft); hard coat adds 40% premium |
| Electroplating | Steel (Zinc/Nickel), Aluminum (Nickel) | Electrolytic deposition; 5–25μm thickness; RoHS-compliant options available | Corrosion protection (zinc), hardness (nickel), solderability | Moderate to high ($0.30–$4.00/sq.ft); nickel plating costs 2x zinc |
| Mechanical Polishing | Stainless Steel, Aluminum (aesthetic focus) | Abrasive buffing (120–600 grit); mirror finish requires 8+ steps | Reflective surface (Ra < 0.1μm); reduces bacterial adhesion; enhances perceived quality | High labor cost ($3.00–$10.00/sq.ft); time-intensive for complex geometries |
Engineering Insight: For outdoor marine applications, we recommend aluminum with Type III anodizing (hard coat) for saltwater resistance. For automotive interiors, powder-coated CRS delivers superior scratch resistance at lower cost than polished stainless steel. All finishes undergo strict adhesion testing per ASTM B117 standards before release.
Why Partner with Wuxi Lead for Uncompromising Quality
We don’t just deliver parts—we engineer solutions that exceed your expectations at every stage. Here’s how we ensure excellence:
Zero Defects: Our ISO 9001:2015-certified quality system includes 100% dimensional inspection for critical features, statistical process control (SPC) for all production runs, and automated optical inspection (AOI) for weld integrity. Our defect rate consistently remains below 0.08%—achieved through real-time monitoring and root-cause analysis at every process step.
Olympic Quality: We adhere to aerospace-grade standards (AS9100) for precision-critical components, with tolerances as tight as ±0.02mm for high-end applications. Our in-house CMM capabilities and 3D laser scanning verify complex geometries to ensure compliance with your exact specifications—whether for medical devices or satellite components.
24/7 Customer Service: Dedicated engineering support is available around the clock for technical design reviews, urgent issue resolution, and production tracking. Our cloud-based portal provides real-time updates on material status, machining progress, and delivery ETAs—ensuring transparency from order placement to final shipment.
Partnering with Wuxi Lead means eliminating guesswork. From your first design consultation to final delivery, our team of senior engineers works side-by-side with you to balance performance, cost, and manufacturability—ensuring your project achieves precision, reliability, and cost efficiency without compromise.
Wuxi Lead Precision Machinery: Where engineering excellence meets operational partnership.
Manufacturing Process & QC
From Concept to Completion: Precision Engineered for Your Success
At Wuxi Lead Precision Machinery, we redefine manufacturing partnerships. Our integrated sheet metal fabrication process ensures seamless transition from prototype to production—Zero Defects, Olympic-grade precision, and 24/7 customer collaboration. No handoffs. No compromises. Just engineering-grade reliability you can trust.
Design Analysis: Engineering-Grade Precision from Day One
Our Zero Defects Protocol begins with rigorous design validation. We collaborate directly with your engineering team to optimize GD&T, material selection, and manufacturability—eliminating costly rework before production starts.
DFMA (Design for Manufacturing & Assembly) Optimization: Identify and resolve potential issues in early-stage design
Critical Feature Tolerance Analysis: ±0.05mm standard (±0.02mm achievable for aerospace/medical applications)
3D Scanning & Simulation Validation: Digital twin verification of part geometry and assembly fit
“We treat your design as our own. Every dimension is scrutinized to ensure production readiness.”
Pricing: Transparent, Data-Driven Quoting
No guesswork. No hidden fees. Our AI-powered quoting system generates accurate, detailed cost breakdowns in under 24 hours—including material, processing, and finishing costs—based on your CAD files.
| Parameter | Standard | Wuxi Lead Precision Machinery |
|---|---|---|
| Quote Turnaround | 3–5 days | <24 hours |
| Tolerance Clarity | Generic ranges | Specific ± values per feature |
| Cost Transparency | Opaque pricing models | Itemized cost breakdown (material, labor, QC) |
Rapid Prototyping: Same Machines, Same Process, Zero Compromise
Prototypes are built on identical production equipment—no retooling, no process shifts. This ensures your prototype is a true representation of final parts, reducing time-to-market by 40%.
Critical Feature Tolerance: ±0.03mm (vs. industry standard ±0.1mm)
Material Validation: Full material certification for CRS/HRS, aluminum, and galvanized steel
72-Hour Delivery: From CAD upload to physical prototype with full process documentation
“Your prototype isn’t a test run—it’s the first production part.”
Mass Production: Scalable Excellence with Military-Grade QC
Our automated production line delivers consistent, high-volume precision with zero tolerance for defects. Every step is monitored by Statistical Process Control (SPC) and verified by 100% final inspection.
| Process Step | Standard Tolerance | Wuxi Lead Precision Machinery |
|---|---|---|
| Laser Cutting | ±0.1mm | ±0.05mm (±0.02mm for critical features) |
| Bending | ±1.5° | ±0.5° (with precision tooling) |
| Welding (TIG/MIG) | ±0.2mm gap | ±0.05mm gap (ASME Section IX certified) |
| Powder Coating | ±5μm thickness | ±2μm thickness (ISO 12944 compliant) |
| Real-Time SPC Monitoring: AI-driven adjustments during production to maintain tolerances | ||
| 100% Final Inspection: CMM, laser scanning, and visual checks for every batch | ||
| 99.8% On-Time Delivery: Guaranteed with 24/7 tracking and dedicated account management |
Why Partner with Us?
Zero Defects Commitment: Every part undergoes triple verification—design, in-process, and final inspection.
Olympic Quality Standard: Tolerances exceeding ISO 9001 and AS9100 benchmarks for aerospace/medical applications.
24/7 Customer Service: Direct access to your account manager for urgent requests, shipment updates, or technical support—anytime, anywhere.
“We don’t just deliver parts. We deliver peace of mind.”
Ready to elevate your manufacturing partnership?
Contact Our Engineering Team for a free design review and quote within 24 hours.
Why Choose Wuxi Lead Precision
Partner with Wuxi Lead Precision: Your Engineering Ally, Not Just a Supplier
Precision Engineering Excellence Beyond Industry Standards
We redefine sheet metal fabrication precision through advanced machinery, ISO-certified processes, and engineering-grade process control. While industry standards often accept ±0.1mm tolerances for laser cutting and ±1° for bend angles, Wuxi Lead Precision delivers tighter tolerances consistently—eliminating secondary operations and ensuring first-time-right production.
| Parameter | Industry Standard | Wuxi Lead Precision | Impact on Your Project |
|---|---|---|---|
| Laser Cutting | ±0.1mm | ±0.05mm | Eliminates secondary operations, reduces assembly time by 15-20% |
| Bend Angle | ±1° | ±0.5° | Ensures perfect fit for complex assemblies (e.g., medical device housings) |
| Hole Tolerances | ±0.2mm | ±0.1mm | Critical for precise mating of components in high-stress applications |
| TIG Welding | ±0.05mm | ±0.02mm | Superior structural integrity and aesthetic finish for visible components |
| Powder Coating | ±5μm | ±3μm | Consistent color and texture for premium end products |
“All tolerances verified via ISO 17025-accredited metrology labs. Real-world results exceed published specs through adaptive process optimization and AI-driven quality control systems.”
Zero-Defect Quality Assurance: Olympic Standards in Every Detail
At Wuxi Lead, “zero defects” is our operational baseline—not a marketing slogan. Every component undergoes a multi-stage quality verification process certified to aerospace and medical-grade standards:
In-Process Inspection: Real-time SPC monitoring during fabrication with automated optical inspection (AOI)
100% Final Inspection: Certified dimensional checks using CMM, laser scanners, and 3D coordinate measurement
Material Traceability: Full batch tracking from raw material to finished part via blockchain-enabled ERP system
Six Sigma Certified Processes: <1.5 DPMO defect rate across all production lines
“We don’t just meet ISO 9001 standards—we exceed them. Our quality system is built for mission-critical applications where failure is not an option.”
— Chief Quality Officer, Wuxi Lead Precision
24/7 Global Support: Your Success, Around the Clock
Manufacturing challenges don’t adhere to business hours. We’ve engineered a support ecosystem designed for global collaboration:
Dedicated Engineering Liaison: Single point of contact with deep technical expertise in your industry
24/7 Response Protocol: <2 hour reply time for critical issues, 24/7 monitoring via AI-powered ticketing system
Real-Time Project Tracking: Live portal with progress updates, quality reports, and predictive delay alerts
Multilingual Technical Team: English, Chinese, Spanish support for seamless communication across time zones
“When our client in Germany needed an urgent redesign at 3 AM local time, our team was already preparing revised tooling by 4 AM. That’s the level of partnership we deliver.”
— Global Account Manager, Wuxi Lead Precision
Ready to Elevate Your Project?
Stop settling for “good enough”—partner with precision.
Wuxi Lead Precision delivers more than components; we deliver engineered solutions with Olympic-grade quality, zero-defect execution, and around-the-clock support.
📞 +86-13961886740
📧 [email protected]
✅ Free DFM Analysis & Quote
Submit your CAD files today—our engineers will provide actionable feedback within 24 hours at no cost.
⚙️ Precision Cost Estimator
Estimate how tolerance impact relative manufacturing effort.
