Engineering Guide: Sheet Metal Stores

Engineering Insight Precision as the Foundation of Sheet Metal Fabrication

In high-stakes industrial manufacturing, the term “precision” transcends mere specification; it represents the fundamental barrier between operational success and costly failure. Sheet metal components form the skeletal framework of critical systems across aerospace, defense, medical equipment, and advanced automation. Tolerances measured in fractions of a millimeter directly impact structural integrity, assembly efficiency, and the ultimate performance of the end product. Compromising on precision at the fabrication stage introduces cumulative errors that propagate through downstream processes, leading to misaligned assemblies, field failures, warranty claims, and significant reputational damage. For discerning B2B partners, selecting a sheet metal store is not a transactional decision but a strategic partnership where dimensional accuracy and process repeatability are non-negotiable prerequisites.

Wuxi Lead Precision Machinery operates at this critical intersection of engineering rigor and manufacturing execution. Our approach integrates advanced CNC laser cutting, precision bending with state-of-the-art press brakes, and rigorous in-process metrology to ensure every flat pattern and formed part adheres strictly to the most demanding engineering drawings. We understand that military-grade enclosures require absolute consistency to shield sensitive electronics, just as medical device housings demand flawless fit to ensure sterility and function. This commitment is validated through our direct contributions to projects requiring the highest levels of certification, including components for secure military communication systems and structural elements deployed within 2022 Winter Olympics venue infrastructure. These engagements demanded zero-defect delivery under stringent regulatory scrutiny, proving our processes meet the pinnacle of global manufacturing standards.

The tangible difference lies in our controlled environment and engineering oversight. Unlike standard sheet metal suppliers, we implement multi-stage verification protocols, utilizing calibrated CMMs and optical comparators not just for final inspection, but at critical stages within the fabrication sequence. This proactive quality management ensures deviations are identified and corrected before material progresses, safeguarding your timeline and budget. Our facility is engineered for stability, with climate-controlled workspaces minimizing thermal drift that can undermine micron-level accuracy during extended production runs.

Critical precision capabilities are consistently achieved through our integrated systems, as demonstrated below:

Partnering with a sheet metal fabricator capable of delivering Olympic and military-grade precision is an investment in your product’s reliability and your brand’s integrity. Wuxi Lead Precision Machinery provides the engineering depth, certified processes, and unwavering commitment to accuracy required for mission-critical applications. Demand verifiable precision – request our first-article inspection reports and process capability studies for your next project. The integrity of your final assembly depends on the foundation we build together.

Precision Specs & Tolerances

Wuxi Lead Precision Machinery delivers advanced sheet metal fabrication solutions tailored for high-precision industrial applications. Our technical capabilities are built around state-of-the-art equipment, rigorous quality assurance protocols, and a deep understanding of complex manufacturing requirements. At the core of our production floor lies a suite of 5-axis CNC machining centers, enabling us to handle intricate geometries and multi-faceted components with exceptional accuracy and efficiency. These systems provide dynamic tool positioning, reduced setup times, and the ability to machine complex parts in a single operation—critical advantages for aerospace, medical, and automation industries where precision and repeatability are non-negotiable.

Our 5-axis CNC technology supports a broad range of sheet metal materials, including stainless steel, aluminum alloys, carbon steel, and specialty alloys. This flexibility allows us to meet diverse performance and environmental demands across sectors. The integration of high-speed machining with simultaneous multi-axis movement ensures minimal tool deflection, superior surface finishes, and tighter tolerances—resulting in components that meet exact design specifications without the need for extensive post-processing.

Quality control is embedded at every stage of the manufacturing process. We employ a certified Coordinate Measuring Machine (CMM) inspection system to verify dimensional accuracy and geometric conformity. Our CMM system operates with micron-level precision, providing full traceability and comprehensive inspection reports for every critical component. These reports include detailed GD&T analysis, first-article inspection data, and batch consistency verification, ensuring complete compliance with ISO 9001 standards and customer-specific requirements.

All inspections are conducted in a temperature-controlled metrology lab to eliminate environmental variables, guaranteeing measurement stability and repeatability. Our quality engineers are trained in ASME Y14.5 standards and utilize advanced software such as PC-DMIS to analyze complex part features, including positional tolerances, flatness, concentricity, and profile deviations. This data-driven approach enables continuous process improvement and real-time corrective actions when necessary.

The following table outlines the standard tolerances we consistently achieve across our sheet metal fabrication and 5-axis CNC operations:

These capabilities reflect our commitment to engineering excellence and operational precision. At Wuxi Lead Precision Machinery, we do not just manufacture parts—we deliver fully validated, high-integrity components that perform reliably in the most demanding environments.

Material & Finish Options

Material Selection for Precision Sheet Metal Fabrication

Selecting the optimal material is a strategic decision impacting performance, cost, and manufacturability in sheet metal fabrication. At Wuxi Lead Precision Machinery, we prioritize material properties aligned with your end-use requirements, production volume, and environmental conditions. Below is a technical overview of key materials and finishes we engineer for high-tolerance components.

Aluminum Alloys dominate aerospace, electronics, and transportation sectors due to their exceptional strength-to-weight ratio and corrosion resistance. Grade 5052 offers superior formability for complex bends, while 6061-T6 provides higher structural integrity for load-bearing applications. Aluminum’s thermal and electrical conductivity also make it ideal for heat sinks and enclosures. Its lower density reduces shipping costs and assembly effort, though it requires precise tooling to prevent burring during CNC punching or laser cutting.

Carbon and Stainless Steel remain indispensable for heavy-duty industrial applications. Low-carbon steel (e.g., AISI 1008) delivers cost-effective weldability and machinability for brackets and chassis. For corrosive environments, 304 and 316 stainless steel offer robust resistance, with 316 excelling in marine or chemical exposure due to molybdenum content. While steel provides superior hardness and impact resistance, its higher weight and susceptibility to oxidation necessitate protective finishes. We optimize laser parameters to minimize heat-affected zones in thin-gauge steel sheets, ensuring dimensional accuracy.

Titanium Alloys (Grade 2, Grade 5) are reserved for mission-critical aerospace, medical, and defense components where extreme strength, temperature resilience, and biocompatibility are non-negotiable. Though costly and challenging to machine due to low thermal conductivity and work hardening, titanium’s fatigue resistance justifies its use in high-stress applications. Our multi-axis CNC systems with rigid tooling and controlled feeds mitigate galling risks during titanium fabrication.

Anodizing: Precision Surface Enhancement
Anodizing is the preferred electrochemical finish for aluminum, creating a durable, corrosion-resistant oxide layer. Type II (sulfuric acid) anodizing provides standard wear protection and dye receptivity for color-coding. For aerospace or military specs, Type III (hard anodizing) delivers thicker, harder coatings (50–150 µm) with superior abrasion resistance. Note that anodizing slightly increases part dimensions; we account for this in our Geometric Dimensioning and Tolerancing (GD&T) protocols. Titanium also accepts anodizing for color marking without compromising biocompatibility.

Material Specifications Comparison

Material choice directly influences tool life, cycle time, and final part quality. At Wuxi Lead, our engineering team collaborates with clients during the design phase to balance performance demands with production efficiency. We leverage advanced simulation software to predict material behavior during bending, welding, and finishing—ensuring your sheet metal components meet stringent industry standards while optimizing cost. Contact us for material-specific DFM analysis tailored to your project.

Manufacturing Process & QC

Sheet Metal Fabrication: From Design to Zero-Defect Mass Production

At Wuxi Lead Precision Machinery, our sheet metal fabrication process is engineered for precision, efficiency, and uncompromising quality. We follow a structured workflow that begins with design and culminates in flawless mass production, ensuring every component meets the highest industry standards. This integrated approach enables us to deliver consistent, zero-defect outcomes for global OEMs and high-end industrial clients.

The process begins with collaborative design engineering. Our team works closely with client specifications, utilizing advanced CAD/CAM software to develop detailed 3D models and flat patterns. Design for Manufacturability (DFM) analysis is conducted early to identify potential issues related to material selection, bend allowances, weld accessibility, and tolerances. This proactive evaluation ensures optimal performance during fabrication while minimizing waste and rework.

Once the design is finalized, we proceed to prototyping. Using high-precision laser cutting, CNC punching, and press braking, we produce functional prototypes that mirror final production conditions. These prototypes undergo rigorous inspection using coordinate measuring machines (CMM) and optical comparators to verify dimensional accuracy, surface finish, and structural integrity. Feedback from prototype testing is integrated into the design as needed, ensuring full alignment with performance requirements before scaling to production.

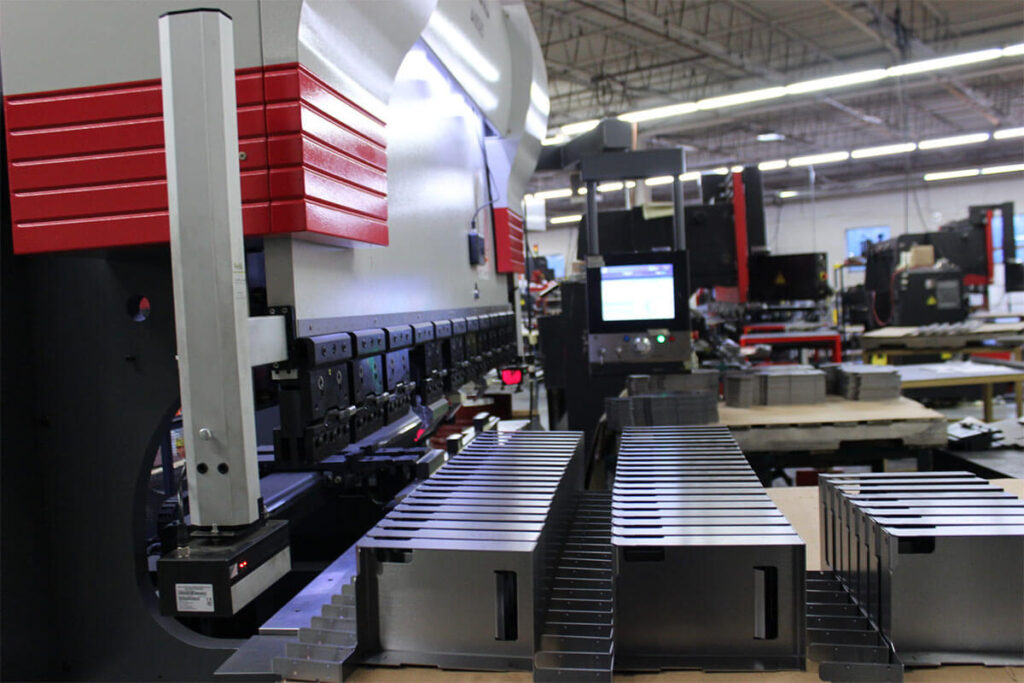

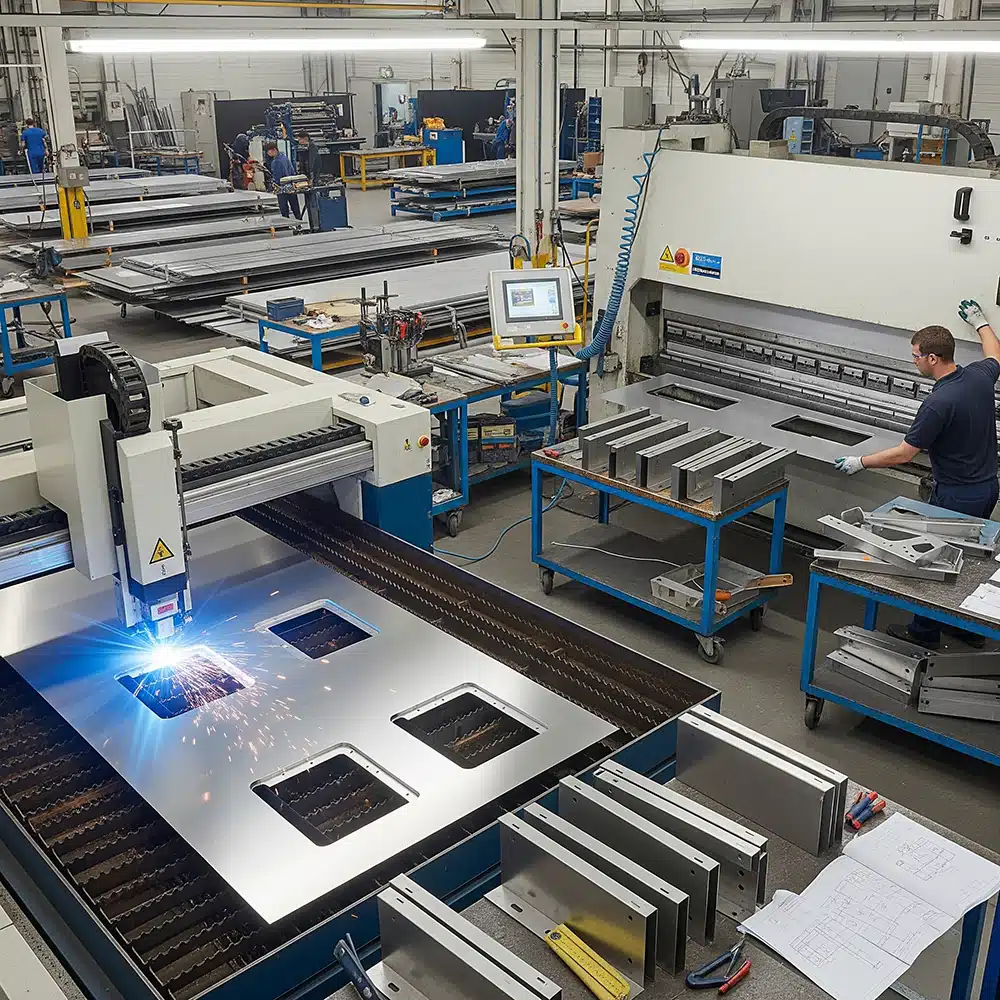

Mass production is executed on automated, tightly controlled production lines. Our facility leverages state-of-the-art fiber laser cutters, automated bending cells, and robotic welding systems to maintain consistency across high-volume runs. Each stage of fabrication—cutting, bending, welding, and finishing—is monitored in real time using integrated quality control checkpoints. Statistical Process Control (SPC) methodologies are applied to detect and correct deviations before they impact output.

Our zero-defect philosophy is enforced through a comprehensive quality management system compliant with ISO 9001:2015 standards. Every batch is traceable, with full documentation from raw material certification to final inspection reports. Surface treatments such as powder coating, anodizing, or passivation are applied under controlled environments to ensure durability and aesthetic consistency.

Through seamless integration of design validation, precision prototyping, and automated mass production, Wuxi Lead ensures every sheet metal component is manufactured to exacting specifications. Our commitment to zero defects is not a target—it is a guaranteed outcome.

Why Choose Wuxi Lead Precision

Partner with Lead Precision: Elevate Your Sheet Metal Fabrication Capability

Wuxi Lead Precision Machinery stands as your strategic partner for advanced sheet metal fabrication, engineered to resolve the critical challenges faced by high-demand manufacturing operations. Based in China with rigorous adherence to global quality standards including ISO 9001, we specialize in transforming complex designs into precision components with unwavering consistency. Our facility integrates cutting-edge CNC technology, expert metallurgical knowledge, and streamlined production protocols specifically tailored for sheet metal stores requiring reliable, high-tolerance output. We eliminate production bottlenecks and quality variances that erode your profitability and reputation, delivering components that meet exacting aerospace, medical, and industrial equipment specifications.

Our core capabilities are defined by measurable precision and scalability. The table below details our technical parameters for sheet metal processing:

Partnering with Lead Precision means accessing more than just a vendor; it means securing a committed extension of your engineering and production team. We proactively engage during the design phase to optimize manufacturability, reducing material waste and accelerating time-to-market. Our dedicated project managers provide transparent communication and real-time production tracking, ensuring you maintain control over your supply chain. We invest in continuous process refinement to guarantee that every batch meets your dimensional and surface finish requirements, directly supporting your ability to fulfill client commitments with confidence. This partnership model transforms fabrication from a cost center into a strategic asset for your business growth.

Initiate your precision partnership today by contacting our engineering and sales team directly. Send your detailed RFQs, technical drawings, or project specifications to Contact [email protected]. Our specialists will respond within 24 business hours to discuss material selection, tolerance validation, and a tailored production schedule aligned with your operational needs. Do not compromise on the quality and reliability of your sheet metal components. Partner with Wuxi Lead Precision Machinery to achieve uncompromising precision, scalable capacity, and sustainable competitive advantage in the global manufacturing landscape. Your designs become reality through our expertise.
