Engineering Guide: Sheet Fabrication

Engineering Insight Precision in Sheet Metal Fabrication

Precision in sheet metal fabrication transcends mere dimensional accuracy; it is the foundational element ensuring functional integrity, assembly compatibility, and long-term performance of critical components. In high-stakes industries like aerospace, defense, and advanced medical equipment, deviations measured in thousandths of an inch can cascade into catastrophic system failures, costly rework, or project delays. The inherent challenges of working with sheet materials – thermal distortion during cutting, springback in bending, tool wear in punching – demand not only advanced machinery but also deep process understanding and rigorous quality control protocols. At Wuxi Lead Precision Machinery, we recognize that true precision is achieved through the seamless integration of state-of-the-art equipment, meticulously calibrated processes, and engineering expertise honed over decades of solving complex manufacturing challenges. It is not a single measurement point but a continuous thread woven through material selection, nesting optimization, forming sequences, and final inspection.

Our commitment to uncompromising precision is validated through projects demanding the highest standards. We have successfully delivered components meeting stringent military specifications for defense contractors, where reliability under extreme conditions is non-negotiable. Furthermore, our capabilities were rigorously tested and proven in supporting infrastructure for major international sporting events, including the Olympic Games, where complex architectural and structural elements required flawless dimensional consistency for seamless on-site assembly under intense time pressure. These experiences underscore our ability to manage the full spectrum of precision requirements, from micro-tolerances in electronic enclosures to large-scale structural panels, consistently meeting or exceeding ASTM, ISO, and customer-specific geometric dimensioning and tolerancing (GD&T) standards.

The tangible outcome of this precision focus is evident in the performance of the fabricated parts. Components exhibit perfect fit during assembly, eliminating costly shimming or rework. Consistent bend angles and hole patterns ensure predictable behavior in subsequent welding or fastening operations. Surface finish integrity is maintained, critical for parts requiring painting, plating, or cleanroom compatibility. This level of control directly translates to reduced waste, accelerated time-to-market, and significantly lower total cost of ownership for our clients, despite the initial investment in precision engineering. Wuxi Lead Precision Machinery leverages this proven expertise to transform complex sheet metal designs into reality, where every micron matters and reliability is paramount. Precision is not merely a specification we meet; it is the core principle driving every process decision we make.

Wuxi Lead Precision Machinery Sheet Metal Fabrication Capabilities

Precision Specs & Tolerances

Wuxi Lead Precision Machinery delivers advanced sheet metal fabrication solutions tailored for high-precision industrial applications. Our technical capabilities integrate state-of-the-art machinery, rigorous quality assurance protocols, and deep engineering expertise to meet the demanding requirements of aerospace, medical, energy, and automation sectors. At the core of our production floor lies a suite of 5-axis CNC machining centers, enabling complex geometries and tight-tolerance components from sheet stock with exceptional repeatability.

The integration of 5-axis CNC technology allows for simultaneous multi-directional cutting, minimizing setup changes and enhancing dimensional accuracy. This capability is particularly critical in sheet fabrication where intricate contours, compound angles, and thin-wall features are common. By maintaining workpiece integrity through reduced handling, we ensure consistency across both prototyping and high-volume production runs. Our CNC systems are fully programmable using advanced CAM software, supporting optimized toolpaths, material conservation, and rapid iteration based on design specifications.

Complementing our machining strength is a comprehensive quality control infrastructure anchored by Coordinate Measuring Machine (CMM) inspection. Every critical component undergoes full dimensional validation using calibrated CMM systems, providing traceable measurement data in compliance with ISO 9001 standards. This metrology-backed verification ensures that geometric tolerances, hole placements, and form deviations are within prescribed limits before shipment. In addition to CMM, we employ laser scanning, surface roughness testing, and first-article inspection reports to deliver fully documented quality assurance.

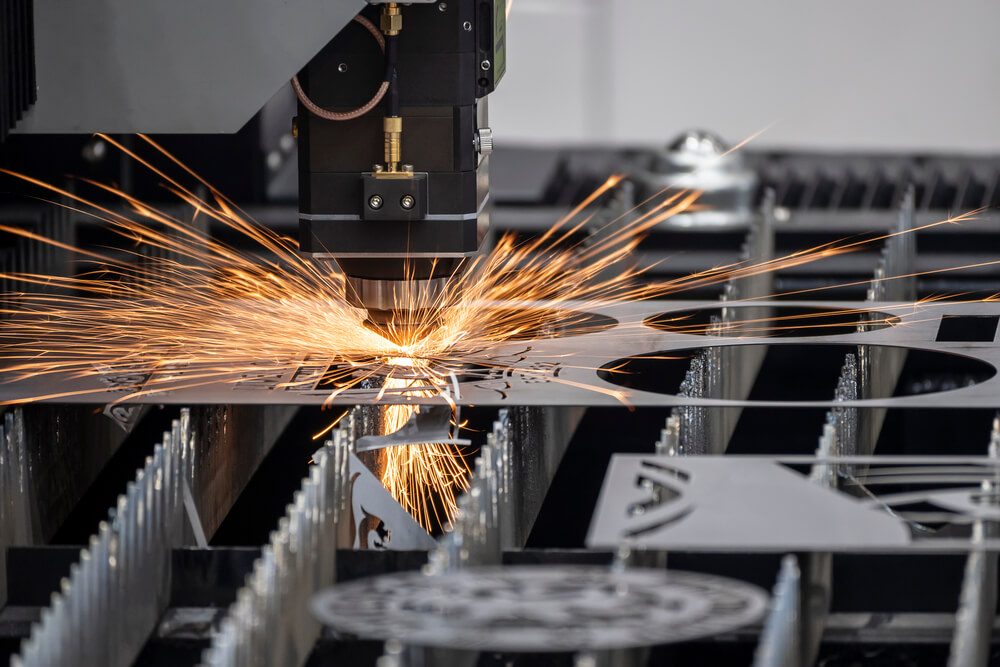

Our sheet fabrication process supports a wide range of materials, including stainless steel, aluminum alloys, carbon steel, and specialty alloys such as titanium and inconel. With laser cutting, precision bending, and automated welding integrated into the workflow, we offer end-to-end manufacturing under one roof. All operations are supervised by certified technicians with over a decade of experience in high-mix, high-accuracy environments.

The following table outlines typical tolerance capabilities across key fabrication stages:

These specifications reflect our commitment to precision engineering and process stability. Wuxi Lead Precision Machinery maintains full control over production variables—from raw material sourcing to final inspection—ensuring every fabricated component meets the highest standards of performance and reliability.

Material & Finish Options

Precision Material Selection for Critical Sheet Fabrication Projects

Material choice fundamentally dictates performance longevity and manufacturability in high-precision sheet fabrication. At Wuxi Lead Precision Machinery we prioritize aligning material properties with your operational environment load requirements and lifecycle cost targets. Misalignment here creates cascading issues in forming welding and final part integrity. Understanding the nuanced trade-offs between aluminum steel and titanium is non-negotiable for mission-critical applications.

Aluminum alloys particularly 6061-T6 dominate aerospace and transportation sectors due to their exceptional strength-to-weight ratio and inherent corrosion resistance. This alloy machines cleanly with minimal tool wear and accepts anodizing exceptionally well. However its lower hardness compared to steel necessitates design adjustments for high-wear interfaces. For structural components requiring higher strength 7075-T6 offers superior performance but presents greater machining challenges and reduced corrosion resistance without finishing.

Carbon steel including cold-rolled 1018 remains cost-effective for non-exposed structural frames and machinery bases where ultimate strength and weldability are paramount. Its susceptibility to oxidation mandates protective finishes like powder coating. Stainless steel variants 304 and 316L are essential for medical marine and chemical processing applications. 316L’s molybdenum content provides critical resistance against chloride corrosion though it increases material and machining costs significantly over 304.

Titanium Grade 2 and 5 serve extreme environments like jet engine components and offshore drilling where temperature stability corrosion resistance and strength outweigh high material costs. Its low thermal conductivity and tendency to gall demand specialized tooling and slower machining parameters. Titanium fabrication requires strict contamination control to prevent embrittlement.

Anodizing transforms aluminum surfaces for enhanced durability and performance. Type II (sulfuric acid) anodizing provides standard corrosion and wear resistance with dyeing capability for identification. Type III (hardcoat) anodizing creates a much thicker denser ceramic layer essential for high-abrasion applications like hydraulic pistons or military hardware. Hardcoat significantly improves surface hardness approaching 60 HRC but requires precise voltage control and cooling during processing to avoid cracking.

Key material properties for common fabrication alloys are summarized below

Selecting the optimal material and finish requires analyzing stress points environmental exposure and lifecycle maintenance constraints. Wuxi Lead’s engineering team collaborates closely with clients during the design phase to validate material choices against real-world performance criteria. We provide comprehensive material certification and process validation ensuring your fabricated components meet exacting industry standards from prototype through volume production. Contact our technical sales engineers to discuss your specific application requirements and receive tailored material recommendations.

Manufacturing Process & QC

Sheet metal fabrication at Wuxi Lead Precision Machinery follows a disciplined, end-to-end workflow engineered for precision, repeatability, and zero-defect output. Our process integrates advanced design validation, agile prototyping, and tightly controlled mass production to deliver components that meet the highest standards in aerospace, medical, and industrial automation sectors.

The journey begins with design engineering, where our technical team collaborates with clients to refine CAD models for manufacturability. We conduct comprehensive Design for Manufacturability (DFM) analysis to optimize material selection, bend radii, tolerances, and feature placement. This stage ensures that every design is not only functional but also optimized for high-efficiency production with minimal waste and maximum structural integrity.

Once the design is finalized, we proceed to prototyping. Utilizing state-of-the-art CNC punching, laser cutting, and press brake forming, we produce functional prototypes within 5–7 working days. These prototypes undergo rigorous in-house inspection using coordinate measuring machines (CMM) and optical comparators to verify dimensional accuracy and geometric conformity. Client feedback is incorporated at this stage, enabling rapid iteration before full-scale production begins. This agile prototyping phase is critical to de-risking the manufacturing process and ensuring alignment with end-use requirements.

Mass production is executed on fully integrated production lines with real-time monitoring and statistical process control (SPC). Each operation—from cutting and bending to welding and surface finishing—is tracked through our digital manufacturing execution system (MES), ensuring full traceability. Our facility operates under ISO 9001 and IATF 16949 quality management systems, with every batch subjected to first-article inspection and ongoing quality audits. Automated inspection systems, including vision-based defect detection, are deployed to identify anomalies at micron-level precision, supporting our zero-defect objective.

Throughout the production cycle, we maintain strict environmental and process controls, including temperature-stabilized workshops and calibrated tooling, to minimize variation. Final products are packaged using industry-specific protocols to prevent transit damage, especially for sensitive components.

Our commitment to zero defects is not just a quality goal—it is embedded in every stage of our operational philosophy. By aligning precision engineering with data-driven process control, Wuxi Lead ensures consistent delivery of high-integrity sheet metal components at scale.

Typical Production Specifications

Why Choose Wuxi Lead Precision

Partner with Lead Precision for Unmatched Sheet Metal Fabrication Excellence

At Wuxi Lead Precision Machinery, we redefine what is possible in high-precision sheet metal fabrication. Our engineering-driven approach combines cutting-edge technology with decades of industrial expertise to deliver components that meet the most stringent aerospace, medical, and automation sector requirements. We understand that your success hinges on parts that perform flawlessly under extreme conditions—where microns matter and material integrity is non-negotiable. Partnering with us means gaining a strategic extension of your engineering team, not just a supplier.

Our facility operates at the forefront of manufacturing innovation, featuring fully integrated CAD/CAM systems and real-time process monitoring. Every component undergoes rigorous in-process inspection using Zeiss CMMs and laser scanners, ensuring geometric tolerances remain within ±0.05 mm. We specialize in complex geometries that challenge conventional fabrication methods, from thin-wall enclosures requiring ±0.1° angular precision to multi-stage formed assemblies with sub-millimeter repeatability. Material waste is minimized through AI-optimized nesting software, reducing your costs while accelerating time-to-market.

Critical capabilities are summarized below for immediate technical reference:

This technical foundation enables us to solve your most persistent fabrication challenges. Whether you require rapid prototyping with 72-hour turnaround or high-volume production with zero-defect consistency, our AS9100D and ISO 13485-certified workflows guarantee compliance. We proactively identify design-for-manufacturability opportunities during the quoting phase, eliminating costly revisions and scrap. Our global logistics network ensures on-time delivery to North America, Europe, and Asia with full customs documentation.

Choose Wuxi Lead Precision Machinery as your fabrication partner to transform engineering intent into physical reality with uncompromising quality. We invest in understanding your application’s operational environment—because a bracket in a satellite isn’t just a bracket. Contact us today to discuss how our precision engineering can elevate your next project. Send detailed specifications and requirements to [email protected] for a technical consultation within 24 business hours. Let us prove why industry leaders trust Lead Precision for mission-critical sheet metal solutions.
