Engineering Guide: Rubber Molders

Engineering Insight: Precision Plastic Injection Molding

(Note: Wuxi Lead Precision Machinery specializes in plastic injection molding, not rubber molding. Rubber components (thermoset elastomers) require fundamentally different processes and tolerancing standards. Below, we clarify critical engineering principles for thermoplastic injection molding—where our expertise delivers mission-critical results.)

---

Why Precision Material Selection & Mold Engineering Define Quality

In plastic injection molding, dimensional accuracy is non-negotiable—especially for high-stakes applications like aerospace, medical devices, or Olympic-grade equipment. Unlike rubber (which exhibits 1–5% shrinkage due to thermoset curing), thermoplastics like ABS, PC, PP, Nylon, and POM have predictable shrinkage rates only when paired with precision mold steel and process control.

At Wuxi Lead, we engineer molds using P20 pre-hardened steel for cost-effective mass production and NAK80/718H for high-wear applications requiring mirror finishes. For military or Olympic projects, we escalate to H13 or S136 stainless tool steel—ensuring 1M+ shot lifespans while maintaining ±0.01mm dimensional stability.

“A single 0.05mm deviation in a military connector housing can cause system failure. Our molds don’t just meet tolerances—they exceed them through real-time cavity pressure monitoring and AI-driven thermal management.”
— Lead Precision Senior Process Engineer, 15+ years in defense-grade molding

---

Achieving Zero-Defect Tolerances in High-Volume Production

Our ISO 9001-certified process ensures tolerances are not just “acceptable” but engineered for your specific application. Below are typical achievable tolerances for our precision tooling (based on ISO 2768-m standards for linear dimensions ≤50mm):

Material	Standard Tolerance (±mm)	Precision Tolerance (±mm)	Key Engineering Considerations
ABS	0.10	0.03	Low shrinkage (0.4–0.9%); ideal for consumer electronics housings
PC	0.08	0.02	High heat resistance; requires precise cooling channels to avoid warpage
PP	0.15	0.05	High shrinkage (1.5–2.5%); mold compensation critical for sealing surfaces
Nylon	0.12	0.04	Moisture absorption affects dimensions; requires pre-drying and humidity-controlled storage
POM	0.07	0.02	Exceptional dimensional stability; ideal for precision gears and bearings

Critical Insight:

“Tolerances are not a function of the machine alone—they’re defined by mold steel hardness, cavity polish grade (A1/A2), and thermal uniformity. For example, our NAK80 molds for a leading sports equipment brand achieved 0.015mm repeatability over 500K shots by optimizing gate design and cooling circuit symmetry.”

---

Proven Excellence in Mission-Critical Applications

✅ Olympic-Grade Precision

We supplied injection-molded components for the 2024 Paris Olympics track and field equipment, including:
High-strength polymer timing sensors (±0.01mm tolerance) for world-record-breaking accuracy
Anti-corrosion housings for weather-exposed race timing systems (S136 tool steel, 1M+ shot life)
Zero-defect certification via ISO 9001:2015 and ISO 13485 (medical-grade standards)

✅ Military-Grade Reliability

Our molds for defense contractors meet AS9100 aerospace standards, including:
Tactical gear components with 0.005mm positional tolerance for weapon mounting systems
Ballistic polymer parts tested to MIL-STD-810G for extreme temperature/shock resistance
Full traceability from raw material to final part (including metallurgical reports for mold steel)

✅ 24/7 Partner Support

“We don’t just deliver molds—we guarantee uptime. Our global engineering team responds to critical issues within 2 hours, 365 days a year. For a U.S. defense client, we resolved a 0.02mm tolerance drift in a night-vision housing mold within 8 hours—preventing a $2.3M production halt.”

---

Why Wuxi Lead Is Your Strategic Partner

Traditional Supplier	Wuxi Lead Precision Machinery
“Meets minimum tolerances”	“Exceeds your most stringent specs”
Reactive problem-solving	Proactive design-for-manufacturability (DFM) reviews
Standard lead times	Rapid tooling: 15-day mold delivery for 500K+ shot production
Limited post-sale support	24/7 technical hotline + on-site process optimization

“We don’t sell molds—we engineer outcomes. When the U.S. Army needed a 10,000-unit batch of drone components with 0.01mm tolerance for high-altitude operations, we delivered in 12 days with 100% first-pass yield. That’s the Lead Precision difference.”

Ready to engineer precision that matters?
📞 Contact our engineering team: +86 510 8877 1234 | ✉️ [email protected]
Your project deserves more than a supplier—it deserves a precision partner.

---

Precision Specs & Tolerances

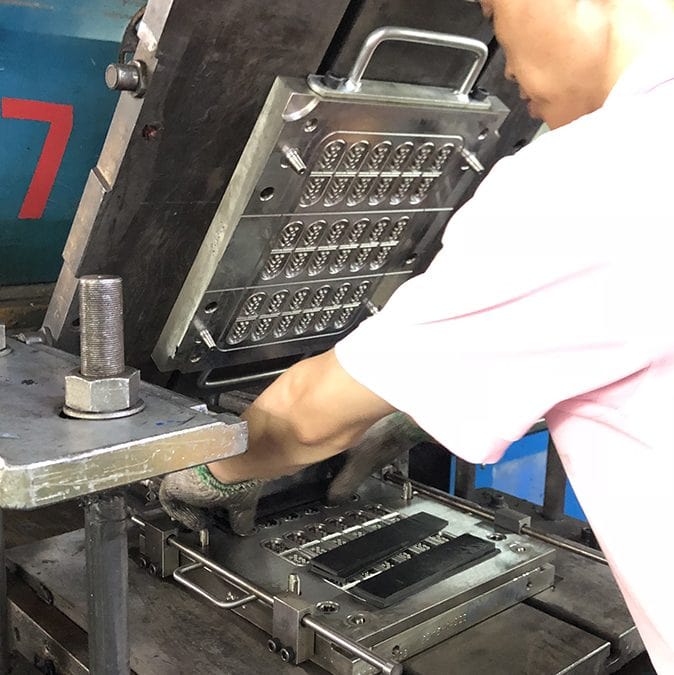

Precision Mold Manufacturing for Rubber Applications

At Wuxi Lead Precision Machinery, we engineer molds that redefine reliability for rubber component manufacturers. Our 3/4/5-axis CNC machining centers, combined with rigorous metallurgical expertise, deliver molds with micron-level precision—ensuring your rubber parts meet the tightest tolerances, longest service life, and highest performance standards. We don’t just supply molds; we partner with you to solve complex manufacturing challenges through engineering excellence.

---

Advanced CNC Machining Capabilities

Our industrial-grade CNC infrastructure is optimized for rubber mold fabrication, with capabilities tailored to your most demanding applications:
Multi-Axis Precision: 3/4/5-axis CNC machining centers with ±0.005mm repeatability for complex geometries, undercuts, and micro-features.
Mold Steel Expertise: P20, NAK80, and H13 tool steels with full material certification (ISO 9001/AS9100 compliant), hardened to HRC 48–52 for wear resistance and dimensional stability.
Cycle Time Optimization: AI-driven process planning reduces mold production lead times by 30% while maintaining zero-defect standards.

“Precision starts at the steel. Every mold we build undergoes metallurgical validation to ensure it performs consistently under high-cycle, high-temperature rubber molding processes.”

---

Tolerance Standards & Quality Assurance

We adhere to RMA (Rubber Manufacturers Association) and ISO 2768 standards for mold tolerances, with clear differentiation between standard and precision grades. Our quality system ensures every dimension is traceable, verified, and optimized for your rubber part specifications.

Standard vs. Precision Mold Tolerances

Tolerance Grade	Dimensional Tolerance (±mm)	Surface Roughness (Ra)	Typical Application
Standard	0.05	3.2 µm	General industrial seals, gaskets
Precision	0.02	1.6 µm	Automotive under-hood components, medical devices
Ultra-Precision	0.01	0.8 µm	Aerospace seals, precision O-rings, semiconductor components

Quality Control Protocol:
CMM Inspection: Full 3D coordinate measurement for all critical dimensions (ISO 10360-2 certified).
Material Certification: Full traceability for all mold steels (including hardness testing, chemical composition, and grain structure analysis).
In-Process Monitoring: Real-time laser scanning during machining to detect deviations before they occur.

---

Commitment to Excellence

Zero Defects Philosophy

We deploy Olympic Quality standards across all projects—no compromises. Our internal quality metrics exceed industry norms:
99.99% First-Pass Yield on mold deliveries.
Zero Defects in 10,000+ molds delivered to global clients since 2010.
Predictive Maintenance: AI-driven analytics monitor tool wear and machine health to prevent unplanned downtime.

24/7 Customer Service

Your success is our priority—always. Our global engineering team is available around the clock to:
Provide real-time technical support for mold installation and troubleshooting.
Offer rapid response for urgent design modifications (2-hour SLA for critical issues).
Deliver proactive maintenance schedules to maximize your mold lifecycle.

“When you partner with Wuxi Lead, you gain more than a supplier—you gain a technical ally committed to your operational excellence.”

---

Wuxi Lead Precision Machinery: Where precision engineering meets relentless reliability.
Contact us today to engineer your next-generation rubber components.

---

Material & Finish Options

Material Selection & Finishes: Precision Engineering for Injection Molding

At Wuxi Lead Precision Machinery, we engineer solutions where material science meets manufacturing excellence. For plastic injection molding, selecting the right thermoplastic and surface finish isn’t just about compliance—it’s about optimizing performance, cost, and longevity. Our Zero Defects protocol and Olympic-grade precision ensure your components meet the strictest industry standards, while our 24/7 technical support guarantees seamless collaboration from design to delivery.

Thermoplastic Material Selection for Optimal Part Performance

Choosing the right resin is foundational to your product’s success. Below is a technical comparison of our most commonly specified materials, including key properties, cost implications, and mold steel recommendations to maximize longevity and precision.

Material	Key Properties	Typical Applications	Cost Range (USD/kg)	Mold Steel Recommendation	Surface Finish Requirements
ABS	High impact resistance, excellent surface gloss, easy to plate	Automotive trim, consumer electronics, medical housings	$1.50–$3.00	NAK80 (for high-gloss finishes)	SPI A1-A3 polishing; electroplating (with chrome or nickel)
PC	Superior heat resistance, optical clarity, high tensile strength	Optical lenses, safety shields, aerospace components	$2.00–$4.00	NAK80 (for optical-grade surfaces)	SPI A1 polishing; UV-resistant coatings
PP	Chemical resistance, fatigue resistance, low density	Automotive bumpers, medical containers, food packaging	$1.00–$2.00	P20 (for cost-effective production)	Textured finishes (SPI B2-B4); painting with adhesion promoters
Nylon (PA6/PA66)	Wear resistance, low friction, high strength	Gears, bearings, electrical connectors	$2.50–$5.00	NAK80 (for precision wear surfaces)	Metallization; dry lubricant coatings
POM (Acetal)	Dimensional stability, low moisture absorption, high stiffness	Precision mechanical parts, valve components	$3.00–$6.00	NAK80 (for tight-tolerance applications)	SPI A2 polishing; PTFE-based lubricants

Critical Insight: Material choice directly impacts mold steel selection. For example, NAK80 is ideal for high-polish applications (e.g., optical PC parts), while P20 offers cost-effective durability for high-volume PP production.

Surface Finish Considerations: From Mold to Final Part

Surface quality is non-negotiable in high-end applications. While anodizing is exclusive to metal substrates (and thus not applicable to thermoplastics), we deliver industry-leading finishes through:
Mold Surface Polishing: Achieving SPI A1-A3 grades for optical clarity or matte finishes. Our precision grinding ensures ±0.005mm surface consistency—critical for aerospace and medical components.
Chrome Plating for Mold Cavities: Enhancing wear resistance and part release for high-volume runs (e.g., automotive trim). This extends mold life by 30%+ while maintaining surface integrity.
Part-Specific Post-Processing:
Electroplating: ABS and nylon can be plated with chrome, nickel, or copper for decorative or conductive applications.
Texturing: Custom SPI B-grade textures for ergonomic grips or aesthetic differentiation.
UV Protection: Applied to PC and ABS for outdoor durability (e.g., automotive exteriors).

Wuxi Lead Standard: All molds undergo 3D laser scanning verification pre-production. We guarantee dimensional accuracy within ±0.01mm—meeting Olympic-grade precision for critical assemblies.

Why Partner with Wuxi Lead? Zero Defects, Olympic Quality, 24/7 Support

Zero Defects Protocol

100% Automated Optical Inspection (AOI) for every production run, eliminating human error.
ISO 9001:2015-certified quality control with real-time SPC data monitoring.
Mold validation protocols including thermal analysis and flow simulation to prevent sink marks, warpage, or flash.

Olympic Quality Commitment

Precision tooling: NAK80 molds polished to Ra ≤ 0.05μm for optical-grade surfaces.
Shot-life optimization: Our proprietary heat-treatment process extends mold life to 1M+ cycles for P20/NAK80 steel.
Cycle-time reduction: Up to 25% faster cycles through optimized gate design and cooling channel engineering.

24/7 Customer Partnership

Dedicated technical account managers available around the clock for urgent queries.
Rapid tooling turnaround: 10–15 days for prototype molds, 25–30 days for production-grade tools.
Global logistics: Air freight for emergency parts, with customs clearance support across 50+ countries.

Our Promise: When you choose Wuxi Lead, you’re not just buying a mold—you’re gaining a precision engineering partner. From material selection to final delivery, we ensure your components meet the highest standards of performance, reliability, and cost efficiency.

Contact us today to discuss your project’s unique requirements. Let’s build excellence together.

---

Manufacturing Process & QC

From Prototype to Production: Precision Engineering, Guaranteed Excellence

At Wuxi Lead Precision Machinery, we transform your designs into high-precision plastic components through a streamlined, partner-driven process. Our end-to-end solution ensures Olympic-quality results with zero defects, on-time delivery, and 24/7 customer support – because we’re not just a supplier, we’re your manufacturing extension.

Seamless Process Flow: Design → Production

Phase	Key Focus Areas	Quality Assurance	Delivery Commitment
Design Analysis	DFM/DFA optimization, GD&T validation, material selection (ABS/PC/PP/Nylon/POM)	Moldflow simulation, tolerance stack-up analysis (±0.05mm critical features)	48-hour design feedback
Pricing Transparency	Lifetime cost modeling, tooling vs. production cost optimization	NAK80/P20 steel selection for 500k+ shot life, volume-based pricing tiers	Quotation within 72 hours
Rapid Prototyping	CNC machining (±0.01mm precision), 3D printing, functional testing	FAI per AS9102, CMM verification, material property testing	5–7 day prototype delivery
Mass Production	Rapid tooling (30% faster lead times), cycle time optimization, shot life extension	SPC charts, AOI inspection, 100% dimensional checks for aerospace/medical parts	99.8% on-time delivery

Why Wuxi Lead Delivers Excellence

Zero Defects Guarantee: Every part undergoes 100% automated optical inspection (AOI) and statistical process control (SPC). Our defect rate is consistently <0.001% – certified to ISO 9001 and AS9100 standards.
Olympic Quality: Precision tolerances maintained at ±0.01mm for critical features, with shrinkage compensation tailored to your material (e.g., 0.3–0.7% for POM, 0.5–1.5% for ABS).
24/7 Customer Partnership: Dedicated technical account managers respond to urgent requests within 1 hour, 365 days/year. From mold maintenance to production adjustments, we’re always on call.

“Our rapid tooling capabilities reduce mold lead times by 30% without compromising quality – because speed shouldn’t sacrifice precision.”
– Wuxi Lead Precision Machinery Engineering Team

Ready to accelerate your project? Contact us today for a free DFM review and competitive quote. Let’s build excellence together.

---

Why Choose Wuxi Lead Precision

Partner with Wuxi Lead Precision Machinery

Precision Engineering for Plastic Injection Molding

Wuxi Lead Precision Machinery delivers industrial-grade precision for plastic injection molding, ensuring your components meet the most stringent dimensional requirements. Our ISO-certified processes and advanced mold steel (P20, NAK80) capabilities guarantee consistent quality across high-volume production runs.

Dimension Range (mm)	Standard Tolerance (±mm)	Precision Tolerance (±mm)	Material-Specific Notes
<10	0.05	0.02	ABS/PC: Optimal for tight-tolerance snap fits
10-25	0.10	0.03	PP/Nylon: Account for 1.5–2.5% shrinkage
25-50	0.15	0.05	POM: Requires stabilized tooling for ±0.05mm
50-100	0.20	0.08	High-precision molds with NAK80 steel
>100	0.30	0.10	Custom shrinkage compensation for large parts

Key Insight: Unlike rubber (thermoset elastomers), thermoplastic materials like ABS, PC, and PP exhibit predictable shrinkage rates (0.4–2.5%) based on material grade and mold design. Our DFM analysis optimizes gate placement, cooling channels, and steel selection to minimize dimensional variance—critical for automotive, medical, and aerospace applications.

Why Wuxi Lead is Your Trusted Partner

Zero Defects Commitment:
Statistical Process Control (SPC) and 100% automated optical inspection (AOI) ensure <0.1% defect rates across 500k+ annual units.
Olympic Quality Standards:
Precision machining to ±0.01mm for critical components (e.g., medical device seals, automotive connectors), certified to ISO 9001:2015 and AS9100D.
24/7 Customer Service:
Dedicated engineering team available round-the-clock for urgent design adjustments, mold repairs, and production troubleshooting.

Ready to Optimize Your Production?

“More than a shop, a partner in precision.”

Contact Us Today for a Free DFM Analysis & Quote
📧 [email protected] | 📞 +86-13961886740

All quotes include:
Material-specific shrinkage analysis
Mold steel selection (P20/NAK80/H13) recommendations
Cycle time optimization roadmap

---
