Engineering Guide: Powder Coated Steel Sheet

Engineering Insight Precision in Powder Coated Steel Sheet Fabrication

Achieving optimal performance and longevity in powder coated steel sheet components demands uncompromising precision throughout the entire manufacturing chain. While the powder coating process itself is critical, its effectiveness is fundamentally dependent on the dimensional accuracy and surface integrity of the underlying steel substrate. Any deviation in flatness, edge consistency, or critical feature location introduced during cutting, forming, or machining directly compromises coating adhesion, uniformity, and final part functionality. In high-stakes applications where corrosion resistance, structural integrity, and aesthetic consistency are non-negotiable, tolerances measured in microns become the difference between success and premature failure.

The interplay between substrate precision and coating performance is scientifically defined. Imperfections such as micro-burrs from laser cutting, inconsistent bend radii, or surface contamination from inadequate cleaning create weak points. These defects disrupt the electrostatic application of powder, lead to uneven film build, and critically, provide pathways for moisture ingress at the metal-coating interface. This significantly accelerates corrosion under film, undermining the primary protective purpose of the coating. Furthermore, precise dimensional control ensures consistent part fitment during assembly, preventing stress points that can cause coating chipping or cracking in service. True engineering excellence requires managing the entire process as an integrated system, not isolated steps.

Wuxi Lead Precision Machinery operates at this elevated standard daily. Our CNC fabrication cells, governed by rigorous process controls and ISO 9001-certified procedures, consistently achieve tolerances down to ±0.05mm on complex sheet metal geometries. This precision foundation is non-optional for the demanding sectors we serve. Our documented experience supplying precision powder coated components for Olympic venue infrastructure and critical military support systems underscores our capability. These projects demanded flawless corrosion resistance in extreme environments, absolute dimensional repeatability for seamless integration, and coatings meeting stringent military-grade specifications – requirements only achievable through foundational manufacturing accuracy. We understand that the coating is the final guardian; its effectiveness is built upon the precision of the steel beneath it.

Our integrated approach guarantees substrate perfection before coating begins. Every sheet undergoes validated cleaning and profiling, followed by dimensional verification against the original CAD model using CMM technology. Only components meeting our exacting pre-coat criteria proceed. This systematic control, proven in mission-critical applications, ensures the powder coating performs as engineered – delivering maximum durability, appearance, and value for the end user. Precision in fabrication isn’t merely a step; it is the essential prerequisite for powder coating excellence.

Critical Process Specifications for High-Performance Powder Coating

Precision Specs & Tolerances

Wuxi Lead Precision Machinery delivers advanced custom metal manufacturing solutions, specializing in precision-engineered powder coated steel sheet components for demanding industrial applications. Our technical capabilities are anchored in state-of-the-art 5-axis CNC machining systems, which enable complex geometries, tight tolerances, and superior surface finishes on steel substrates prior to coating. This multi-axis precision ensures minimal part handling, reduced setup errors, and exceptional repeatability—critical for high-performance components in aerospace, automotive, medical, and industrial equipment sectors.

Our 5-axis CNC machining centers operate with simultaneous motion across all axes, allowing for intricate contours, undercuts, and multi-faceted features to be machined in a single setup. This capability is particularly advantageous when preparing steel sheets for powder coating, as it ensures dimensional consistency and optimal surface preparation. Each machining cycle is supported by advanced CAD/CAM programming and in-process tool monitoring, ensuring peak efficiency and long-term part accuracy.

Prior to powder coating, all machined steel components undergo rigorous dimensional verification using Coordinate Measuring Machine (CMM) inspection. Our CMM systems provide full 3D metrology with micron-level precision, validating critical features against original design specifications. This quality control step ensures that every part meets exacting standards before surface treatment, minimizing rework and guaranteeing compatibility with downstream assembly processes.

Post-coating, we perform adhesion testing, film thickness measurement, and visual inspection to confirm coating integrity and uniformity. Our powder coating process is applied to clean, properly pre-treated steel surfaces, ensuring maximum durability, corrosion resistance, and aesthetic consistency. We work with a range of powder types, including epoxy, polyester, and hybrid formulations, tailored to environmental exposure and functional requirements.

All manufacturing and inspection data is documented and archived, providing full traceability for every production batch. Our integrated workflow—from CNC machining to final inspection—ensures that powder coated steel components meet both mechanical and cosmetic specifications required in high-end industrial markets.

The following table outlines key technical specifications and achievable tolerances for our powder coated steel sheet manufacturing process:

Wuxi Lead Precision Machinery combines engineering expertise with precision equipment and disciplined quality control to deliver reliable, high-performance powder coated steel components—engineered to exact customer specifications.

Material & Finish Options

Material Selection for Powder Coated Steel Sheet Fabrication

Selecting the optimal base material for powder coated steel sheet applications requires balancing mechanical performance, environmental resilience, and finishing compatibility. At Wuxi Lead Precision Machinery, our precision CNC fabrication processes demand substrates that maintain dimensional stability during coating application and curing. While aluminum and titanium offer niche advantages, cold-rolled steel remains the dominant substrate for industrial powder coating due to its structural integrity, cost efficiency, and exceptional adhesion properties.

Steel provides unmatched tensile strength and rigidity for load-bearing components, with cold-rolled variants delivering the smooth surface finish essential for uniform powder dispersion. Its thermal conductivity ensures even heat distribution during the 180–200°C curing cycle, preventing defects like orange peel or pinholes. Aluminum excels in weight-sensitive applications and offers natural corrosion resistance, but requires chromate conversion coating prior to powder application to achieve adhesion parity with steel. Titanium’s extreme strength-to-weight ratio suits aerospace or medical implants, yet its oxide layer impedes standard powder adhesion—making it impractical for typical industrial coating processes. Crucially, steel’s magnetic properties facilitate efficient part handling in automated coating lines, reducing production bottlenecks.

Material performance specifications directly impact final product longevity:

For high-volume industrial applications, cold-rolled steel delivers the optimal balance of weldability, machinability, and coating adhesion. Its surface profile (typically 3–5 μm Ra after abrasive blasting) creates mechanical “tooth” for powder anchoring, while consistent thickness tolerances (±0.05mm) prevent warpage during thermal cycling. Aluminum’s lower melting point risks distortion in complex geometries under curing temperatures, and titanium’s reactivity necessitates inert-atmosphere curing—adding prohibitive cost for standard B2B manufacturing.

Wuxi Lead Precision Machinery leverages ISO 9001-certified processes to optimize steel substrate preparation, including precision degreasing, iron phosphate conversion coating, and electrostatic powder application. This ensures 500+ hour salt spray resistance per ASTM B117 standards. When specifying powder coated steel sheet, prioritize SAE 1008–1020 steel grades for their low carbon content and minimal outgassing during curing. For outdoor or chemical-exposure environments, combine steel substrates with polyester-polyurethane hybrid powders to achieve 15+ year service life. Our engineering team collaborates with clients to validate material-coating synergies through accelerated lifecycle testing, eliminating field failure risks before production launch.

Manufacturing Process & QC

The production process for powder coated steel sheets at Wuxi Lead Precision Machinery follows a rigorously controlled sequence designed to ensure zero defects and consistent high performance. Each stage—Design, Prototyping, and Mass Production—is engineered with precision, integrating advanced technology and strict quality assurance protocols to meet the exacting demands of industrial clients.

The process begins with Design, where engineering teams collaborate closely with clients to translate technical specifications into manufacturable solutions. Using CAD/CAM software and finite element analysis, we validate structural integrity, dimensional accuracy, and coating compatibility. Material selection is optimized based on environmental exposure, mechanical load, and finish requirements, ensuring the final product meets both functional and aesthetic criteria. Design for manufacturability (DFM) principles are applied to eliminate potential production flaws before physical work begins.

Following design approval, the Prototyping phase commences. A limited run of components is produced using the same tooling, materials, and processes intended for full-scale production. This allows for real-world validation of form, fit, and function. Each prototype undergoes comprehensive inspection, including dimensional metrology, adhesion testing, salt spray resistance, and visual surface analysis under controlled lighting. Any deviations are traced to root causes and corrected through iterative refinement. This stage is critical in preventing costly errors during mass production and ensures full compliance with international standards such as ISO 9001 and ASTM D3359.

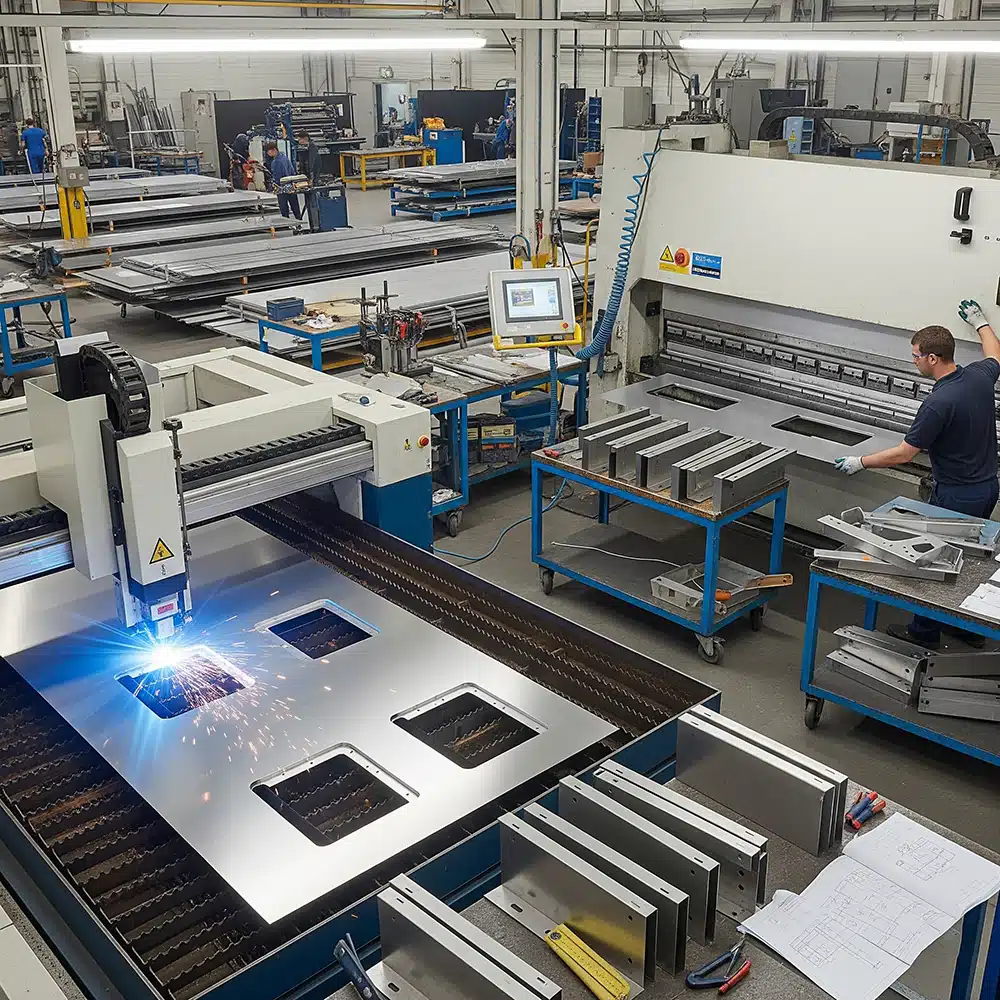

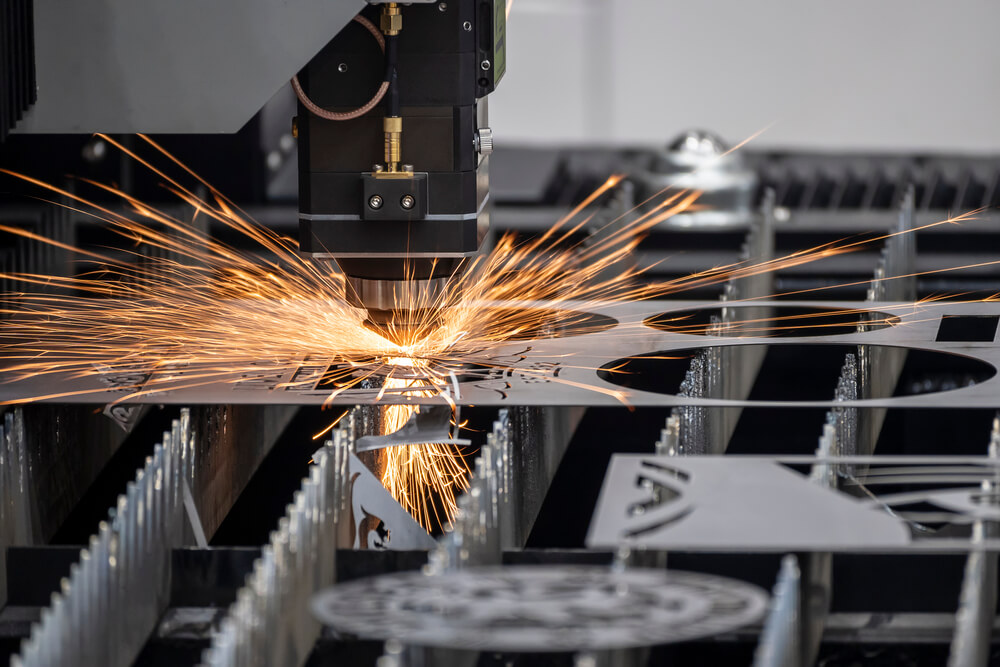

Once the prototype is validated, the process transitions to Mass Production. Our automated production lines integrate laser cutting, CNC bending, robotic welding, and precision cleaning systems to maintain repeatability and efficiency. Steel sheets are thoroughly cleaned and pretreated using iron phosphate or zinc phosphate processes to enhance coating adhesion and corrosion resistance. The powder coating is applied via electrostatic spray deposition, ensuring uniform thickness and edge coverage. Curing is performed in digitally controlled convection ovens with precise time-temperature profiles to achieve optimal cross-linking of the polymer resin.

Throughout all stages, statistical process control (SPC) monitors key parameters in real time. In-process inspections, final audits, and batch traceability systems support our zero-defect objective. Non-conforming parts are immediately quarantined and analyzed using root cause corrective action (RCCA) methodologies.

The following table outlines key production specifications for powder coated steel sheets:

This structured approach ensures that every powder coated steel sheet delivered by Wuxi Lead Precision Machinery meets the highest standards of quality, durability, and dimensional accuracy.

Why Choose Wuxi Lead Precision

Partner with Lead Precision for Uncompromised Powder Coated Steel Excellence

Stop compromising on quality, lead times, or technical precision in your powder coated steel sheet applications. At Wuxi Lead Precision Machinery, we engineer solutions—not just parts—for industries where failure is not an option. With 15 years of specialized expertise in custom metal manufacturing, we transform your most demanding specifications into reality through integrated CNC fabrication and aerospace-grade powder coating processes. Our ISO 9001-certified facility in Wuxi operates under rigorous zero-defect protocols, ensuring every component meets exact dimensional tolerances and surface integrity standards before it leaves our shop floor.

Powder coating demands more than cosmetic finish—it requires metallurgical compatibility, precise pretreatment, and thermal control to achieve corrosion resistance and longevity. We deploy robotic spraying systems with ±5μm film thickness consistency and multi-stage curing ovens calibrated to ASTM D638 standards. Unlike generic suppliers, our engineers collaborate with you from prototype to production, optimizing material selection (including Q235B, Q345B, and SS304 alloys), bend radii, and coating chemistry to eliminate adhesion failures or warpage. This proactive engineering partnership reduces your total cost of ownership by preventing field defects and accelerating time-to-market.

Critical Powder Coated Steel Sheet Specifications We Guarantee

Our end-to-end control—from laser cutting and CNC bending to chemical pretreatment and electrostatic powder application—ensures seamless integration of form, function, and finish. We support volumes from single prototypes to 50,000+ units monthly, with real-time quality data accessible via our customer portal. When your project requires powder coated steel sheets that perform under extreme thermal cycles, chemical exposure, or structural stress, our process validation protocols deliver documented reliability.

Initiate your precision project with a technical consultation, not a sales pitch. Contact our engineering team directly at [email protected] or +86-510-8873-6888 to discuss material certifications, DFM analysis, or accelerated sampling. Specify your alloy grade, dimensional requirements, and environmental exposure conditions—we will respond within 4 business hours with a feasibility assessment and process flow diagram. Wuxi Lead Precision Machinery: Where powder coated steel meets uncompromised engineering integrity. Partner with us to eliminate supply chain risk and elevate your product’s performance legacy.
