Engineering Guide: Laser Cutting Metal Parts

Engineering Insight: Precision in Laser Cutting Metal Parts

In the realm of advanced sheet metal fabrication, precision is not merely a performance metric—it is the foundation of reliability, functionality, and long-term value. At Wuxi Lead Precision Machinery, we understand that the integrity of every component begins with exacting control over dimensional accuracy, edge quality, and material consistency. This is especially critical in laser cutting metal parts, where even micron-level deviations can compromise the performance of complex assemblies in aerospace, defense, medical, and high-performance industrial applications.

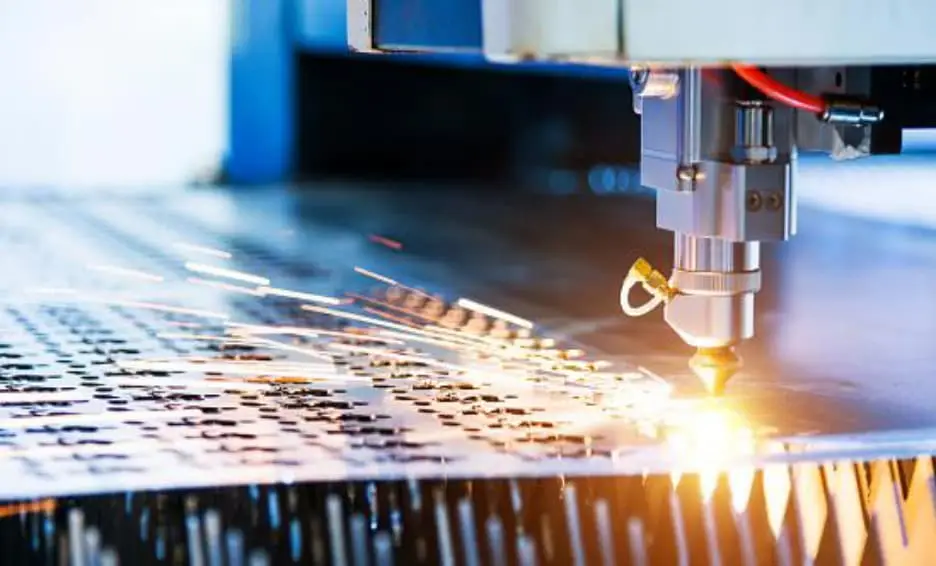

Laser cutting offers unparalleled advantages in speed, flexibility, and repeatability, but its true potential is only realized when paired with precision engineering and rigorous process control. Our CNC fiber laser systems utilize high-density beam focusing, real-time adaptive optics, and closed-loop positioning to maintain tolerances as tight as ±0.05 mm. This level of accuracy ensures clean kerf widths, minimal heat-affected zones, and burr-free edges—essential attributes for parts that must meet stringent assembly and safety standards.

Our commitment to precision is validated through decades of trusted service in mission-critical industries. Wuxi Lead has supplied components and subsystems for infrastructure projects associated with Olympic venues and precision-critical elements for military-grade equipment. These applications demand not only compliance with international standards such as ISO 2768 and AS9100 but also the ability to consistently reproduce results across large production runs under variable material conditions.

Material selection plays a pivotal role in achieving precision. Our facility processes a wide range of metals, including stainless steel, aluminum, carbon steel, and specialty alloys, each requiring tailored laser parameters. Advanced nesting software optimizes material usage while maintaining part integrity, reducing waste without sacrificing accuracy. Furthermore, in-house quality assurance includes coordinate measuring machine (CMM) inspection, laser scanning, and first-article reporting to verify conformance before shipment.

At the core of our capability is a vertically integrated manufacturing ecosystem. From design support and prototyping to full-scale production, Wuxi Lead maintains full control over the production chain. This enables rapid iteration, traceability, and responsiveness—qualities essential for clients operating in regulated or time-sensitive environments.

We believe that precision in laser cutting is not achieved through technology alone, but through the integration of skilled engineering, disciplined process management, and a culture of continuous improvement. For global OEMs and tier-one suppliers, this means receiving not just metal parts, but guaranteed performance.

Typical Laser Cutting Specifications at Wuxi Lead Precision Machinery

Precision Specs & Tolerances

Advanced Laser Cutting Capabilities for Precision Metal Components

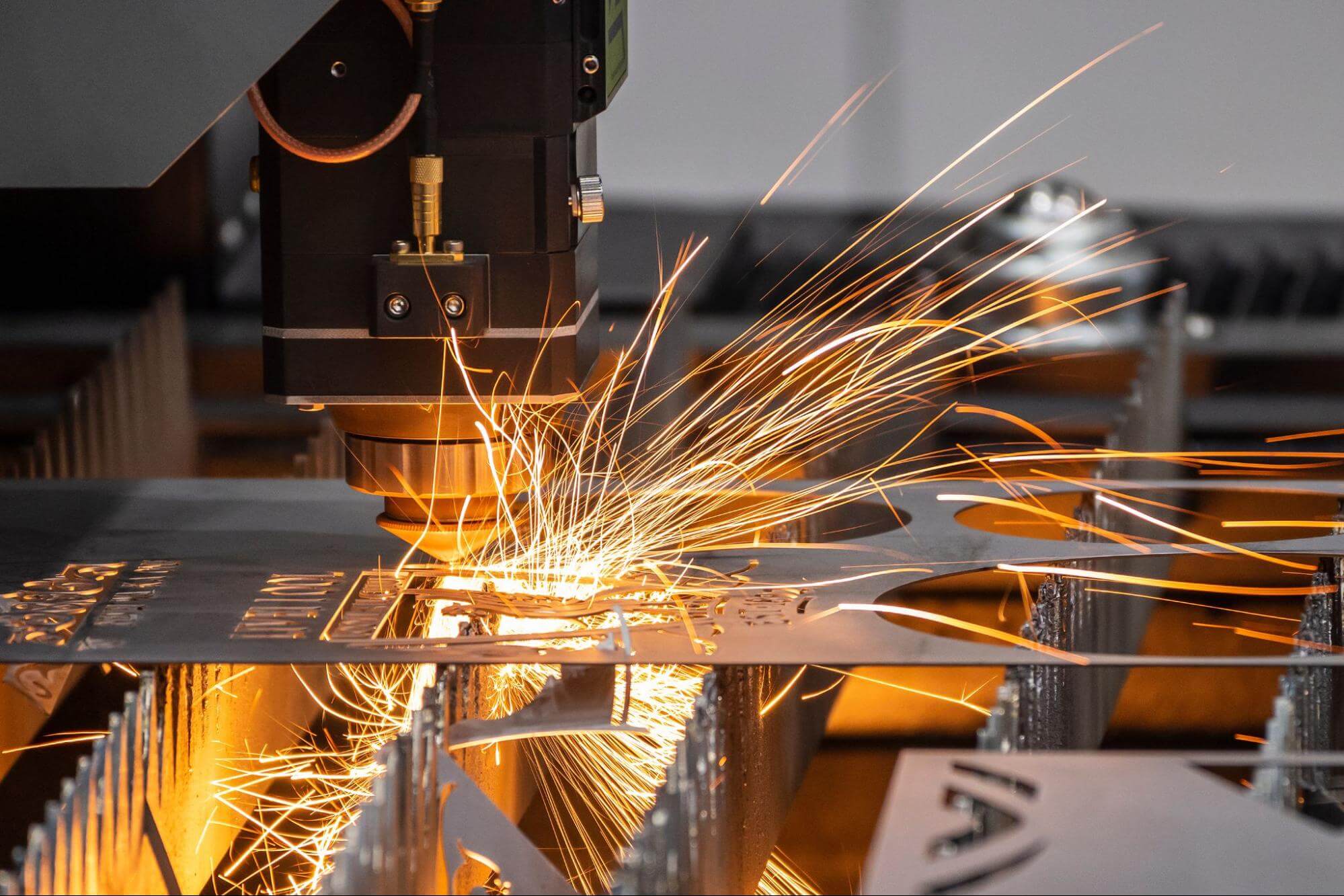

Wuxi Lead Precision Machinery delivers uncompromising precision in laser cutting metal parts through integrated 5-axis CNC technology. Our fiber laser systems handle complex geometries unattainable with conventional 3-axis platforms, enabling simultaneous multi-axis motion for intricate contours, undercuts, and compound angles. This capability eliminates secondary operations for parts requiring beveled edges, tapered holes, or organic 3D forms, directly enhancing efficiency and dimensional consistency. Material versatility spans carbon steel up to 25mm, stainless steel to 20mm, aluminum to 15mm, and specialty alloys, all processed with optimized kerf control and minimal heat-affected zones. High-power resonators (up to 12kW) ensure clean cuts in thick plates while maintaining edge squareness below 0.1mm deviation. All systems feature real-time adaptive focus and collision avoidance, critical for uninterrupted production of aerospace brackets, medical housings, and energy sector manifolds.

Quality assurance is engineered into every process stage. Pre-cut material validation confirms flatness and composition via spectrographic analysis. During cutting, in-process sensors monitor beam alignment and assist gas purity, automatically correcting thermal drift. Post-production, every critical component undergoes full-spectrum inspection using Zeiss CONTURA CMM systems with 0.0005mm probe resolution. Our metrology lab validates geometric dimensioning and tolerancing (GD&T) per ASME Y14.5, including positional tolerances, profile deviations, and surface finish parameters. Statistical process control (SPC) data is documented in client-specific reports, providing traceability from raw material to final shipment. This closed-loop QC system reduces scrap rates by 35% compared to industry averages and ensures first-article approval on 98% of complex projects.

Tolerance performance reflects our technical leadership in high-mix, low-volume manufacturing. The table below details achievable specifications under controlled production conditions:

These capabilities support mission-critical applications where geometric complexity intersects with stringent regulatory demands. By combining 5-axis laser agility with metrology-grade verification, Wuxi Lead transforms design intent into certified reality—reducing assembly time, eliminating fit-up corrections, and accelerating time-to-market for global OEMs. Our engineering team collaborates directly with client designers to optimize part manufacturability, ensuring tolerances align with functional requirements without unnecessary cost escalation. This technical partnership underpins our reputation for solving the most demanding metal fabrication challenges.

Material & Finish Options

Material Selection for Laser Cutting Metal Parts

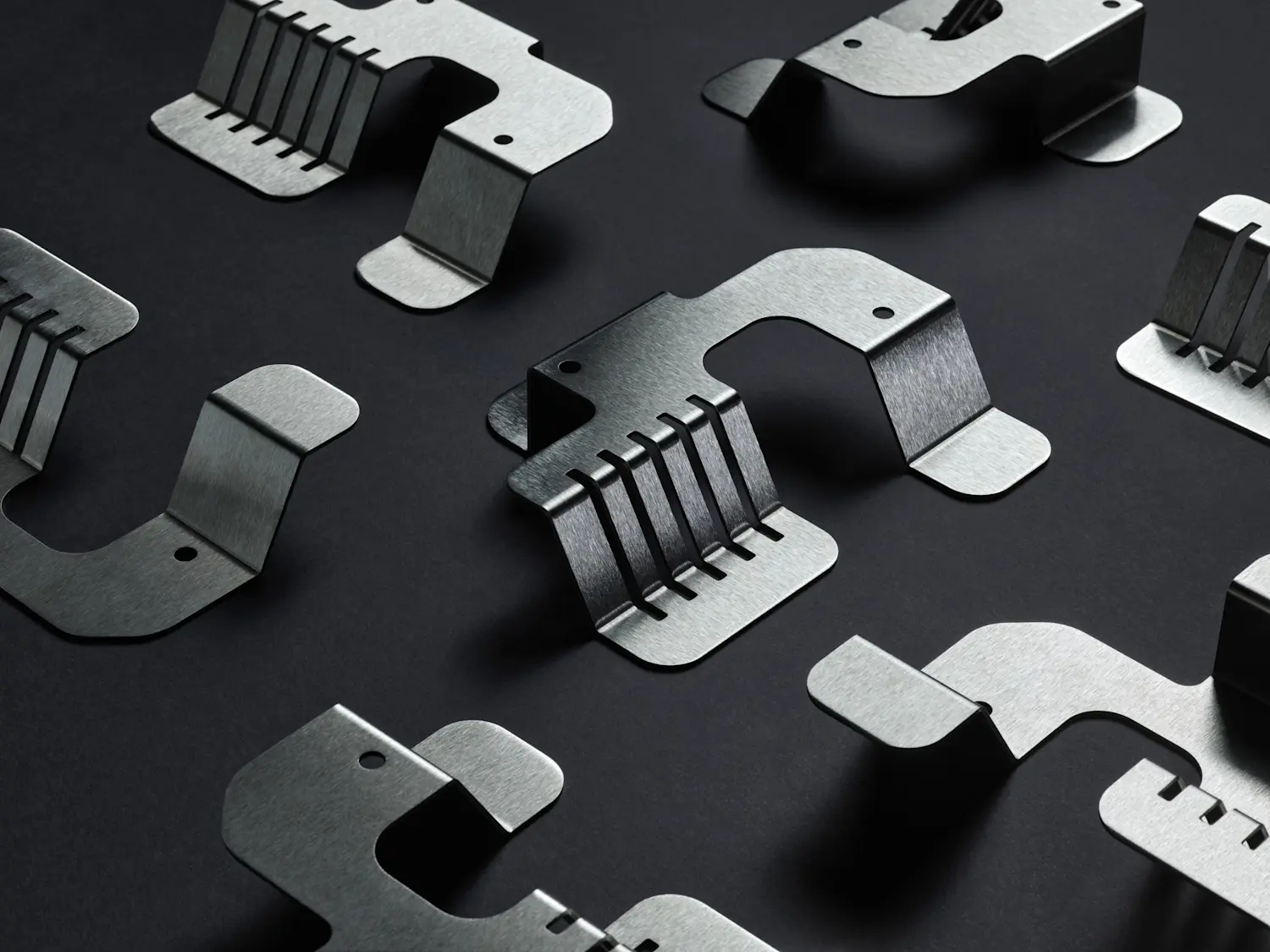

Selecting the appropriate material is critical in achieving optimal performance, durability, and cost-efficiency in sheet metal fabrication. At Wuxi Lead Precision Machinery, we specialize in high-precision laser cutting of industrial-grade metals, with a focus on aluminum, steel, and titanium. Each material offers distinct mechanical properties and processing characteristics that influence suitability for specific applications across aerospace, automotive, medical, and industrial equipment sectors.

Aluminum is widely favored for its excellent strength-to-weight ratio, corrosion resistance, and thermal conductivity. It is particularly well-suited for applications requiring lightweight components without sacrificing structural integrity. Aluminum alloys such as 5052, 6061, and 7075 are commonly laser-cut due to their workability and weldability. However, aluminum’s high reflectivity and thermal conductivity demand precise laser parameters to ensure clean, burr-free edges. Post-processing finishes such as anodizing enhance surface hardness and corrosion resistance, making it ideal for both functional and aesthetic applications.

Steel remains the backbone of industrial fabrication due to its strength, availability, and cost-effectiveness. Carbon steel grades like Q235 and Q345 are frequently used in structural components, enclosures, and machinery frames. Stainless steel, particularly grades 304 and 316, offers superior corrosion resistance and a clean aesthetic, making it suitable for food processing, medical devices, and marine environments. Laser cutting steel provides high dimensional accuracy and smooth edges, especially when using high-power fiber lasers. Minimal heat-affected zones ensure mechanical properties are preserved, enabling consistent post-welding and forming operations.

Titanium and its alloys, such as Grade 2 and Grade 5 (Ti-6Al-4V), are used in high-performance applications where extreme strength, heat resistance, and biocompatibility are essential. Common in aerospace and medical implant manufacturing, titanium presents challenges in laser cutting due to its reactivity at elevated temperatures and low thermal conductivity. Specialized inert gas shielding (typically argon or helium) is required during cutting to prevent oxidation and maintain material integrity. Despite higher material and processing costs, titanium’s unparalleled performance in harsh environments justifies its use in mission-critical components.

The choice of finish further defines the functional lifespan and appearance of laser-cut parts. Anodizing, primarily applied to aluminum, creates a durable, non-conductive oxide layer that improves wear resistance and allows for color coding. Type II (sulfuric acid) and Type III (hardcoat) anodizing are standard options, with the latter offering superior thickness and hardness for industrial use.

Below is a comparative overview of key material properties relevant to laser cutting:

Understanding material behavior under laser energy and selecting the appropriate finish ensures precision, reliability, and long-term performance in demanding environments. Wuxi Lead Precision Machinery applies advanced process controls and material expertise to deliver laser-cut components that meet the highest industrial standards.

Manufacturing Process & QC

Precision Laser Cutting: From Concept to Zero-Defect Production

At Wuxi Lead Precision Machinery, our laser cutting process for metal parts is engineered for uncompromising quality and efficiency, directly supporting your high-volume manufacturing goals. We adhere to a rigorously controlled three-phase workflow: Design Validation, Prototyping & Refinement, and Zero-Defect Mass Production. This structured approach eliminates costly errors and ensures seamless transition from blueprint to final component.

The process begins with comprehensive Design for Manufacturability (DFM) analysis. Our engineering team collaborates closely with your designers to scrutinize CAD files, identifying potential issues like material stress points, kerf width implications, or feature spacing limitations before cutting commences. We verify material suitability against your specifications and laser capabilities, ensuring optimal cut quality and structural integrity. This proactive validation prevents downstream rework and accelerates time-to-market, transforming theoretical designs into production-ready plans.

Prototyping is not an optional step; it is our critical quality gate. Using your approved design, we produce functional prototypes on the same industrial-grade fiber laser systems designated for your production run. Each prototype undergoes stringent First Article Inspection (FAI) per AS9102 or equivalent standards, measuring critical dimensions, edge quality, and material properties against your original specifications. We provide detailed inspection reports, enabling collaborative refinement if necessary. This phase validates the entire process chain – from nesting software to machine parameters – guaranteeing that the prototype is the production part, eliminating guesswork.

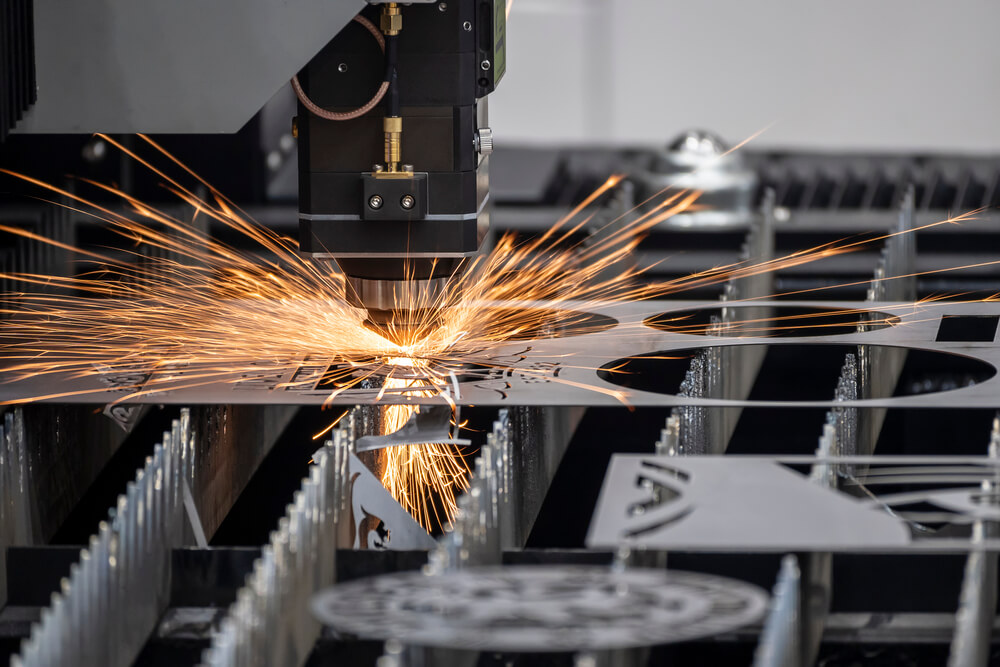

Mass production leverages the validated process parameters established during prototyping. Our state-of-the-art fiber laser systems, operating under strict Statistical Process Control (SPC), maintain micron-level precision throughout the run. Automated material handling and real-time monitoring systems track key variables like laser power, gas pressure, and focal position. Every component undergoes 100% in-process dimensional verification at critical stages, supported by final batch certification reports. This integrated system, combined with our ISO 9001-certified quality management protocols, ensures absolute adherence to your tolerances and delivers true Zero Defect output, batch after batch.

Wuxi Lead Laser Cutting Core Specifications

This disciplined methodology transforms design intent into flawless physical reality. Partner with Wuxi Lead to convert your sheet metal fabrication requirements into a predictable, high-yield process where Zero Defects is the operational standard, not merely an aspiration. Let us secure your production success.

Why Choose Wuxi Lead Precision

Partner with Lead Precision for Unmatched Excellence in Laser Cutting Metal Parts

When precision, speed, and reliability define your manufacturing requirements, partnering with Wuxi Lead Precision Machinery ensures your sheet metal fabrication projects meet the highest global standards. As a leading innovator in advanced laser cutting technology, we specialize in delivering custom metal components with micron-level accuracy, rapid turnaround, and full traceability. Our state-of-the-art facility in Wuxi, China, integrates intelligent automation, fiber laser systems, and rigorous quality control protocols to serve industries where performance cannot be compromised—automotive, aerospace, medical devices, and industrial equipment.

At Lead Precision, we understand that your supply chain depends on consistency and responsiveness. That’s why our engineering team collaborates closely with clients from initial design review through final inspection, ensuring manufacturability, cost-efficiency, and compliance with international standards such as ISO 9001 and AS9100. Whether you require low-volume prototypes or high-volume production runs, our 5-axis and 3D laser cutting capabilities handle complex geometries in carbon steel, stainless steel, aluminum, and specialty alloys up to 30 mm in thickness.

Our commitment to precision is matched only by our dedication to service. With real-time production tracking, detailed inspection reports, and global logistics coordination, we act as an extension of your engineering and procurement teams. Every part is manufactured under controlled conditions, with material certifications, first-article inspections, and in-process quality checks to eliminate variability.

Below are the technical capabilities that define our laser cutting services

We invite global manufacturers to experience the Lead Precision difference—where cutting-edge technology meets engineering integrity. Our team is ready to support your next project with technical consultation, rapid quoting, and scalable production solutions tailored to your specifications.

Contact us today to begin the conversation. Email us at [email protected] and receive a detailed response within 12 business hours. Let Wuxi Lead Precision Machinery become your trusted partner in high-precision sheet metal fabrication.
