Engineering Guide: [Injection Molding Companies]

Engineering Insight: The Role of Precision in Injection Molding Tooling

In the highly competitive landscape of injection molding, precision is not merely a performance metric—it is the foundation of reliability, repeatability, and long-term cost efficiency. For injection molding companies, the quality of end products is directly tied to the accuracy and durability of the tooling used in production. Even minor deviations in mold geometry can lead to part defects, increased scrap rates, and costly downtime. At Wuxi Lead Precision Machinery, we understand that success in this sector hinges on micron-level consistency, thermal stability, and structural integrity under high-cycle operations.

With over 15 years of experience in custom metal manufacturing, Lead Precision has served industries where failure is not an option—Olympic-grade equipment and military defense systems. These demanding applications have shaped our engineering philosophy: every component must perform flawlessly under extreme conditions. This same rigor is applied to the molds and tooling we produce for injection molding companies. Our team leverages advanced CNC machining, precision grinding, and in-house metrology to ensure tolerances as tight as ±0.002 mm, enabling our clients to achieve superior part consistency across millions of cycles.

Material selection and heat treatment are equally critical. We specialize in high-hardness tool steels such as H13, S136, and P20, optimized for wear resistance and thermal fatigue performance. Each mold undergoes rigorous inspection using coordinate measuring machines (CMM) and 3D scanning to validate dimensional accuracy before delivery. This end-to-end quality control ensures that molds not only meet but exceed industry standards for longevity and performance.

Beyond technical capability, our engineering team collaborates closely with injection molding partners during the design phase—offering Design for Manufacturability (DFM) analysis, mold flow simulation support, and rapid prototyping. This proactive engagement reduces time-to-market and mitigates risks associated with complex geometries or tight tolerance requirements.

The following table outlines key specifications and capabilities relevant to our mold manufacturing services:

Precision in injection molding tooling is not a luxury—it is a necessity for operational excellence. Wuxi Lead Precision Machinery brings military-grade discipline and Olympic-level precision to every project, ensuring that our partners achieve maximum uptime, minimal maintenance, and unmatched product quality. For injection molding companies aiming to lead in high-performance markets, partnering with a precision-focused manufacturer is a strategic advantage.

Precision Specs & Tolerances

Technical Capabilities: Precision Engineered for Injection Mold Excellence

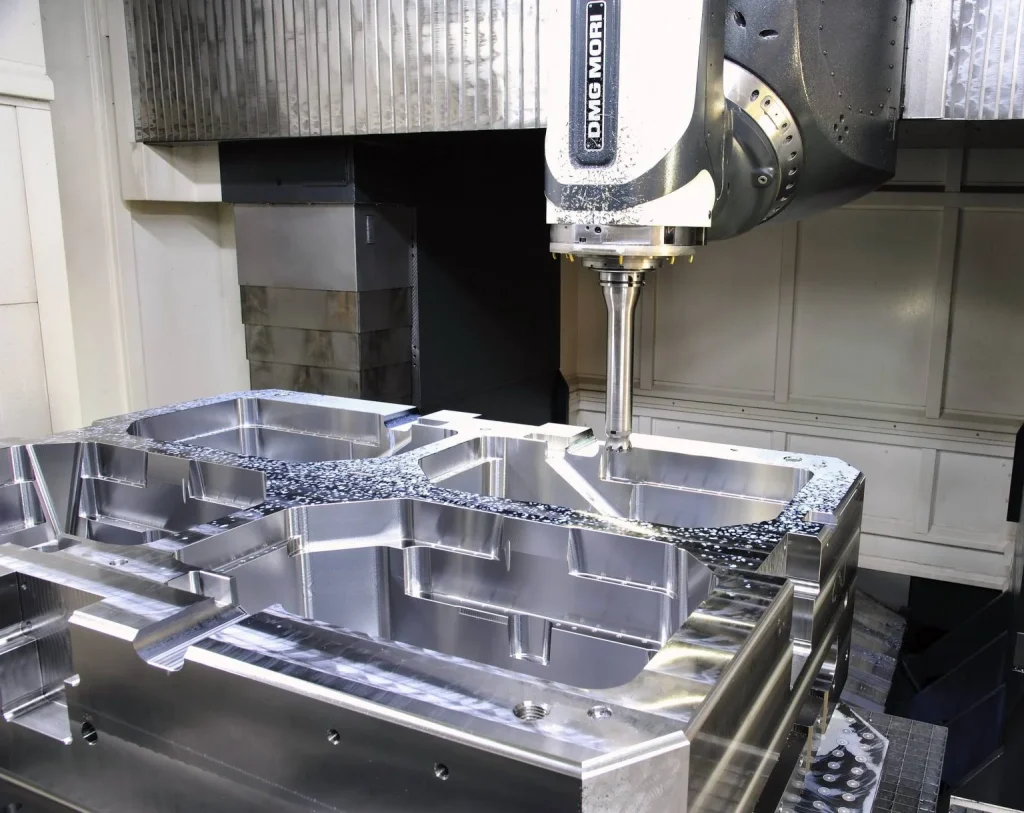

Wuxi Lead Precision Machinery delivers uncompromising precision for injection molding companies requiring complex, high-tolerance metal components. Our core strength lies in advanced 5-axis CNC machining, enabling the production of intricate mold bases, cores, cavities, and electrodes that demand geometric complexity and micron-level accuracy. Unlike conventional 3-axis systems, our 5-axis technology eliminates secondary setups, ensuring critical features maintain positional integrity while reducing lead times by up to 40%. This capability is essential for multi-surface contours, undercuts, and organic shapes common in modern mold design, directly translating to smoother part ejection, reduced weld lines, and extended mold life. We specialize in machining hardened tool steels including P20, H13, S7, and maraging steels, alongside aluminum and copper alloys for rapid prototyping electrodes. Material integrity is preserved through optimized toolpaths and cryogenic cooling strategies, minimizing thermal distortion during high-speed cutting.

Quality assurance is non-negotiable in mold manufacturing, where a single micron deviation impacts part consistency. Every component undergoes rigorous Coordinate Measuring Machine (CMM) inspection using Zeiss CONTURA systems, programmed to ISO 10360-2 standards. Our inspection protocol validates dimensional conformity against CAD models, surface finish, and geometric tolerances across all critical features. Full inspection reports with GD&T analysis are provided, ensuring traceability and enabling proactive adjustments before mold assembly. This data-driven approach eliminates costly trial-and-error during mold commissioning, guaranteeing first-time-right performance in the press.

Our technical specifications reflect industry-leading precision achievable across standard production runs. Tighter tolerances are attainable for mission-critical features through dedicated process validation:

These capabilities are integrated within a controlled ISO 9001-certified environment, where environmental stability (20°C ±0.5°C) and calibrated metrology equipment ensure repeatability. For injection molding partners, this means reduced scrap rates, faster time-to-market, and molds capable of sustaining 500,000+ cycles without rework. We collaborate closely during the design phase to optimize manufacturability, leveraging our machining expertise to resolve potential thermal or ejection challenges before metal cutting begins. Precision isn’t just a specification at Wuxi Lead—it’s the foundation of your mold’s operational reliability.

Material & Finish Options

Material selection is a critical decision in custom metal manufacturing, particularly for injection molding companies that require durable, high-precision components such as mold bases, cores, cavities, and inserts. The performance, lifespan, and cost-efficiency of a mold are directly influenced by the base material and surface treatment chosen. At Wuxi Lead Precision Machinery, we guide our clients through selecting the optimal combination of material and finish based on production volume, part complexity, thermal requirements, and environmental exposure.

Aluminum is often selected for low- to medium-volume production due to its excellent thermal conductivity and machinability. It allows for faster cooling cycles, reducing overall cycle times in injection molding. Aluminum molds are ideal for prototyping and short-run production where rapid turnaround is essential. However, due to its lower hardness and wear resistance compared to steel, aluminum is not recommended for high-volume runs or abrasive materials.

Steel, particularly tool steels such as P20, H13, and S136, remains the standard for high-volume injection molding applications. These alloys offer superior hardness, wear resistance, and dimensional stability under prolonged thermal cycling. P20 steel is commonly used for mold bases and moderate production runs, while H13 excels in applications involving high heat and stress. Stainless tool steels like S136 provide excellent corrosion resistance, making them suitable for molding medical or food-grade plastics where cleanliness is paramount.

Titanium is less common but offers exceptional strength-to-density ratio and corrosion resistance. While not typically used for full mold construction due to cost and machining complexity, titanium alloys are sometimes employed in specialized wear components or inserts requiring extreme durability and lightweight properties. Its use is generally limited to niche, high-performance applications where standard materials fall short.

Surface finishing, particularly anodizing, plays a vital role in enhancing material performance. Anodizing is primarily applied to aluminum to increase surface hardness, improve wear resistance, and provide electrical insulation. Type II (sulfuric acid) anodizing offers moderate protection with aesthetic versatility, while Type III (hardcoat) anodizing delivers a dense, wear-resistant layer suitable for functional components exposed to mechanical contact. Although steel and titanium do not undergo conventional anodizing, they benefit from alternative treatments such as nitriding, chrome plating, or PVD coatings to achieve similar performance enhancements.

The table below summarizes key mechanical and thermal properties of the primary materials used in precision mold manufacturing.

At Wuxi Lead Precision Machinery, we integrate material science with precision engineering to deliver molds that meet exact operational demands. Our engineering team collaborates closely with clients to recommend the optimal material and surface treatment strategy, ensuring maximum productivity and part quality.

Manufacturing Process & QC

Precision Metal Components: The Zero-Defect Production Process for Injection Molding Excellence

For injection molding companies, metal component failure directly translates to costly press downtime, scrapped parts, and damaged client relationships. At Wuxi Lead Precision Machinery, we eliminate this risk through a rigorously controlled production process designed for absolute reliability from initial concept to high-volume delivery. Our methodology ensures every mold base, insert, or core meets the exacting demands of modern injection molding, preventing defects before they occur.

The process begins with collaborative Design for Manufacturability (DFM) analysis. Our engineering team works directly with your specifications, scrutinizing 3D models for potential stress points, cooling inefficiencies, or manufacturability challenges inherent in the mold design. We simulate thermal behavior and structural loads, identifying and resolving issues like weld lines or sink marks at the digital stage. This proactive review prevents costly revisions later, ensuring the design is optimized for both performance and precision metal fabrication. Material selection is validated against your resin type, cycle times, and wear requirements, guaranteeing compatibility and longevity.

Prototyping is not merely a form check; it is full functional validation. Utilizing our advanced 5-axis CNC machining centers and wire EDM capabilities, we produce fully operational metal components matching the final production process. Every critical dimension, surface finish, and cooling channel is measured against the refined DFM model using calibrated CMMs and optical comparators. This phase validates the design’s real-world performance under simulated molding conditions, confirming thermal stability, alignment accuracy, and dimensional integrity. Any deviation triggers immediate engineering feedback to the design phase, closing the loop before mass production commences.

Mass production operates under our Zero Defects Quality Management System. Every machining operation is governed by Statistical Process Control (SPC) with real-time monitoring of critical parameters like spindle load, tool wear, and coolant pressure. In-process inspections at defined stages verify conformance, while final inspection employs full-spectrum metrology against the original CAD model. Our closed-loop system automatically adjusts machining parameters based on measurement data, ensuring consistent output within the tightest tolerances. Traceability is maintained for every component, linking material certs, process data, and inspection reports to the final shipment.

This integrated approach guarantees components that install flawlessly, perform consistently, and maximize your mold’s operational life. The result is minimized downtime, reduced scrap rates, and predictable, high-quality plastic part production for your customers.

Critical Production Specifications for Injection Molding Components

Why Choose Wuxi Lead Precision

Partner with Lead Precision for Unmatched Expertise in Custom Metal Manufacturing

When precision, reliability, and engineering excellence are non-negotiable, injection molding companies worldwide turn to Wuxi Lead Precision Machinery as their trusted manufacturing partner. With over a decade of specialized experience in delivering custom metal components for high-performance molding systems, we bridge the gap between innovative design and industrial durability. Our advanced CNC machining capabilities, strict quality control protocols, and deep understanding of the injection molding industry ensure that every part we produce meets the exacting standards of modern manufacturing.

At Lead Precision, we recognize that injection molding is not just about forming plastic—it’s about creating a system where every metal component must withstand extreme pressures, temperatures, and repetitive cycles without compromise. That’s why we focus exclusively on high-tolerance machining of molds, mold bases, ejector systems, hot runner components, and custom tooling solutions tailored to your production needs. Our facility in Wuxi, China, is equipped with state-of-the-art 5-axis CNC machines, wire EDM, and surface grinding technology, enabling us to deliver complex geometries with tolerances down to ±0.002 mm.

We don’t just manufacture parts—we engineer performance. From prototype development to full-scale production runs, our team collaborates closely with your engineers to optimize designs for manufacturability, longevity, and cost-efficiency. Whether you require hardened tool steels, stainless alloys, or aluminum molds for rapid prototyping, we source only premium-grade materials and apply precision heat treatment processes to ensure maximum wear resistance and dimensional stability.

Our commitment to quality is validated through ISO 9001:2015 certification and rigorous in-process inspections using CMMs, optical comparators, and surface roughness testers. Every component shipped from our facility undergoes full dimensional and material verification, giving you confidence in consistency and reliability.

Below are key specifications that define our manufacturing capabilities:

Partnering with Wuxi Lead Precision Machinery means gaining a long-term ally in precision manufacturing—one that understands the demands of injection molding at every level. We are committed to on-time delivery, transparent communication, and continuous improvement across every project.

For engineering support, quotes, or technical collaboration, contact us today at [email protected]. Let us help you elevate your molding performance through precision-crafted metal solutions.
