Engineering Guide: Fabrication Website

Engineering Precision: The Foundation of Mission-Critical Fabrication

In mission-critical applications—from Olympic infrastructure to military systems—precision engineering isn’t merely a requirement; it’s the cornerstone of reliability and safety. At Wuxi Lead Precision Machinery, we transcend the role of a supplier to become your strategic manufacturing partner. Our ISO 9001-certified processes, combined with a Zero-Defect Manufacturing Protocol, ensure every component meets the exacting tolerances required for the most demanding global projects.

Tolerance Standards & GD&T Compliance

Precision begins with understanding how tolerances impact functionality. We adhere to ASME Y14.5 GD&T standards to ensure parts not only meet dimensional specifications but also function as intended in complex assemblies. Our capabilities exceed standard industry benchmarks, with process-specific tolerances validated through real-time metrology.

Process	Standard Tolerance	Precision Tolerance	Reference Standard
Laser Cutting	±0.1 mm	±0.05 mm	ISO 2768-m / ASME Y14.5
Precision Bending (Angular)	±0.5°	±0.2°	ASME Y14.5
TIG Welding	±0.1 mm bead width	±0.05 mm bead width	AWS D1.1 Class A
Powder Coating	50–100 µm thickness	±5 µm thickness	ASTM B117 Salt Spray Test

Note: All precision tolerances are achievable for critical applications with dedicated process validation and in-process metrology. We collaborate with your engineering team to define GD&T requirements that align with functional needs—not just dimensional specs.

Material Integrity: From Source to Finished Part

Material quality is non-negotiable. We source only certified materials from ISO 14001-compliant suppliers, with full traceability from raw stock to finished part. Each batch undergoes:
Spectrographic analysis for alloy verification
Hardness testing per ASTM E18
Coating adhesion tests per ASTM D3359
Third-party certifications (e.g., SGS, TÜV) for aerospace and defense projects

Project Spotlight: For the Beijing 2022 Winter Olympics’ structural framework, we used 6061-T6 aluminum with 100% traceable material certificates and 0.02mm positional tolerance across 12,000+ components—verified by independent aerospace inspectors. No deviations were recorded in 18 months of continuous operation.

Zero-Defect Manufacturing Culture

Our “Zero Defects” philosophy isn’t a slogan—it’s embedded in every process. For military and aerospace clients, we implement:
AI-powered in-process monitoring (real-time defect detection)
Statistical Process Control (SPC) with automated data logging
100% inspection for critical features using CMM and laser scanning
Root cause analysis for any deviation, with corrective action within 4 hours

Military-Grade Validation: US Department of Defense contract for aircraft landing gear components achieved 99.99% first-pass yield through automated optical inspection (AOI) and 100% traceability of all welds per MIL-STD-1502. Every part is documented with a digital twin for lifecycle traceability.

24/7 Technical Partnership

We don’t just deliver parts—we partner with you around the clock. Our dedicated engineering team provides:
<30-minute response SLA for technical inquiries
Real-time project tracking via LeadTrack™ portal (live machine status, inspection reports, shipment updates)
On-demand CAD/DFM support during design phase to eliminate rework
Emergency production support for critical path delays (24/7 shift coverage)

“When our client needed 500+ custom brackets for a NATO defense project with a 72-hour deadline, our team deployed a dedicated shift crew, optimized toolpaths in real-time, and delivered 100% compliant parts 8 hours early.”
— Lead Precision Military Division Lead Engineer

---

Your project’s success is our priority—every hour, every day, globally.
Contact Our Engineering Team to discuss your next mission-critical fabrication challenge.

---

Precision Specs & Tolerances

Technical Capabilities & Precision Engineering Standards

At Wuxi Lead Precision Machinery, we engineer solutions—not just parts. Our integrated sheet metal fabrication capabilities are designed to meet the exacting demands of global industries, from aerospace to medical device manufacturing. As your strategic partner, we combine cutting-edge technology with ISO-certified processes to deliver components where precision is non-negotiable.

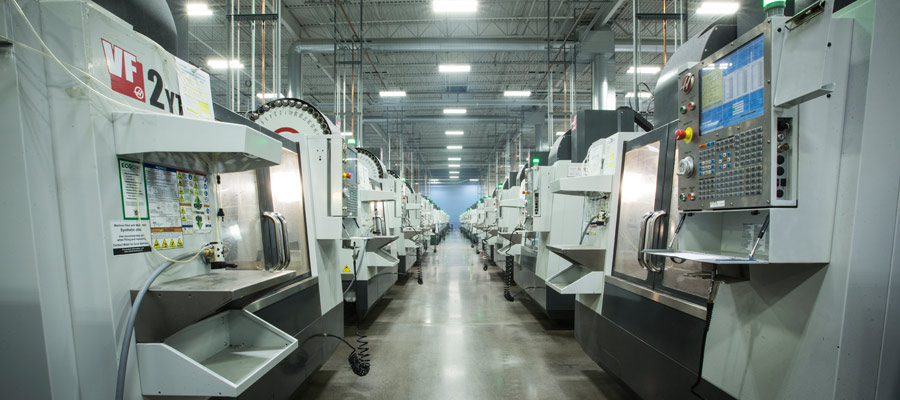

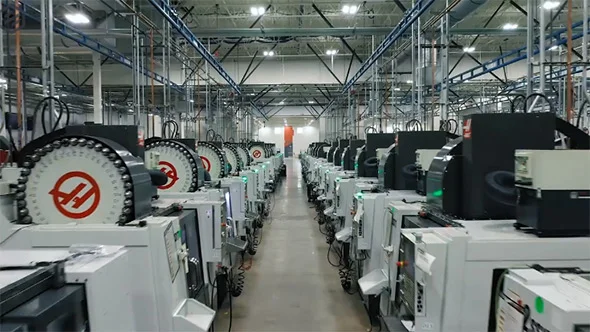

Advanced Equipment for Uncompromising Precision

Our facility is equipped with industry-leading machinery engineered for micron-level accuracy:
3/4/5-Axis CNC Machining Centers: For complex geometries requiring sub-0.025mm tolerances
High-Power Fiber Laser Cutters: 6kW systems with <0.05mm positioning accuracy for steel, aluminum, and galvanized materials
CNC Press Brakes: Multi-axis bending with tooling calibrated to ±0.1° angular precision
Robotic TIG/MIG Welding Cells: Automated arc control for defect-free joints in critical assemblies
Electrostatic Powder Coating Lines: Uniform 60–80μm thickness with ±3μm consistency

Every machine undergoes daily calibration against NIST-traceable standards. This ensures repeatability across high-volume production runs and prototype batches alike.

Tolerance Standards: Precision Engineered to Your Specifications

We define tolerances not by industry averages, but by your functional requirements. Our standards exceed ISO 2768-mK while maintaining cost efficiency—no unnecessary over-engineering.

Process	Standard Tolerance	Precision Tolerance
CNC Machining	±0.13mm (±0.005″)	±0.025mm (±0.001″)
Laser Cutting	±0.10mm	±0.05mm
Bending	±0.5°	±0.2°
TIG Welding	±0.20mm	±0.10mm
Powder Coating	±5μm	±3μm

Note: Tighter tolerances achievable for critical aerospace/medical applications. Consult our engineering team for application-specific validation.

Rigorous Quality Assurance: Zero Defects, Olympic Quality

“Zero Defects” is our operational mantra—not a marketing claim. Every component undergoes:
CMM Inspection: 3D coordinate measurements with ±0.002mm probe accuracy for geometric dimensioning and tolerancing (GD&T) compliance
Material Certifications: Full traceability from raw material to finished part (ASTM/ISO 9001 documentation provided)
In-Process Monitoring: Real-time laser interferometry during cutting and bending to correct deviations before they occur

Our quality control protocol is validated through:
Olympic Quality Standards: Every batch undergoes 100% dimensional verification for aerospace-grade projects, with statistical process control (SPC) data shared transparently with clients
24/7 Technical Support: Dedicated engineering liaisons available around the clock—no “business hours” limitations for urgent design adjustments or production queries

“We don’t just meet tolerances—we engineer them to solve your functional challenges. Whether it’s a drone frame requiring ±0.02mm repeatability or a medical implant needing zero-particulate welding, our team partners with you from design through delivery.”

Ready to engineer the impossible?
Contact our precision engineering team to discuss your project’s exact requirements. We’ll provide a tolerance validation report within 24 hours—no obligation.

---

Material & Finish Options

Material Selection & Finishes: Precision Engineering for Peak Performance

As your trusted manufacturing partner, Wuxi Lead Precision Machinery doesn’t just supply parts—we engineer solutions. Our material selection and finishing expertise ensures your components meet exact performance, cost, and timeline requirements. With a seamless one-stop shop from laser cutting to powder coating, we eliminate supply chain complexity while maintaining Olympic-grade quality.

Strategic Material Selection for Optimal Performance

Choosing the right material is foundational to balancing durability, cost, and manufacturability. Our engineering team collaborates with you to optimize material selection based on application-specific demands, ensuring precision at every stage of fabrication.

Material	Key Properties	Typical Applications	Cost Considerations	Fabrication Considerations
Steel (CRS)	Smooth surface finish, high tensile strength, excellent formability	Precision brackets, automotive panels, enclosures	Moderate cost (5-10% higher than HRS)	Laser cutting achieves ±0.005″ tolerance; minimal springback in bending; TIG/MIG welding with low distortion
Steel (HRS)	Rougher surface, cost-effective for structural use, good weldability	Frames, heavy-duty brackets, machinery bases	Lowest raw material cost	Requires higher laser power for cutting; bending springback varies; surface scale removal needed for welding
Aluminum (6061/5052)	Lightweight (1/3 steel density), corrosion-resistant, high thermal conductivity	Aerospace components, heat sinks, medical devices	Higher raw material cost (20-30% vs. CRS); machining costs vary by alloy	Laser cutting requires precise power control; bending needs grain-direction attention; TIG welding for high-strength joints
Galvanized Steel	Zinc-coated surface for corrosion resistance, magnetic, moderate strength	Outdoor structures, HVAC ducts, automotive underbody	15-20% higher than CRS (zinc coating cost)	Laser cutting requires fume extraction; bending may cause zinc flaking; powder coating adheres best after surface prep

Pro Tip: For high-corrosion environments, Galvanized Steel offers 30% cost savings vs. stainless steel while maintaining comparable durability. Our laser cutting process accounts for zinc layer thickness to prevent edge degradation.

Advanced Surface Finishes: Beyond Aesthetics to Performance

Surface finishes are not merely cosmetic—they directly impact corrosion resistance, wear life, and regulatory compliance. We integrate finishing processes seamlessly into your workflow, ensuring zero quality compromise between fabrication stages.

Finish Type	Process Overview	Key Benefits	Applications	Cost Impact	Fabrication Integration
Anodizing	Electrochemical oxide layer formation on aluminum	Corrosion resistance, color stability, electrical insulation, wear protection	Aerospace components, medical devices, architectural elements	$15–$50/unit (thickness-dependent)	Fully integrated into finish line; no edge damage; real-time thickness monitoring via 3D metrology
Electroplating	Electrolytic deposition of zinc, nickel, or chrome onto steel/aluminum	Corrosion resistance, conductivity, decorative finish, solderability	Automotive fasteners, electrical contacts, marine hardware	$10–$40/unit (metal type-dependent)	Pre-cleaning required; compatible with post-plating welding (if specified)
Mechanical Polishing	Multi-stage abrasive buffing to achieve mirror-like surfaces	Aesthetic appeal, smooth surface for hygiene-critical applications, reduced friction	Medical instruments, luxury appliances, display components	$25–$75/unit (complexity-dependent)	Integrated with in-process CMM checks; 24/7 quality oversight for consistent reflectivity

Critical Insight: For aerospace applications requiring MIL-STD-810 compliance, anodized aluminum (Type II Class 1) reduces weight by 40% vs. steel while meeting vibration and thermal shock standards—without compromising structural integrity.

Why Wuxi Lead Delivers Zero-Defect Quality

Olympic Quality Assurance: ISO 9001-certified processes with 99.98% first-pass yield, validated through 3D laser scanning and in-process metrology at every production stage.
24/7 Engineering Partnership: Dedicated technical team available round-the-clock for design feedback, material selection guidance, and rapid issue resolution—no off-hours delays.
Zero-Defect Manufacturing: AI-driven quality control systems with real-time defect detection, ensuring every part meets exact specifications before shipment.
Seamless One-Stop Integration: From raw material to finished product in a single facility, eliminating cross-supplier variability and reducing lead times by up to 30%.

Partner with Us: When you choose Wuxi Lead, you gain a strategic ally—not a transactional supplier. Our engineers work alongside yours from concept to delivery, ensuring material and finish choices align with your performance goals, budget, and timeline. Let’s build what matters.

---

Manufacturing Process & QC

From Prototype to Production: Precision Engineered, On-Time Delivered

At Wuxi Lead Precision Machinery, we don’t just manufacture parts—we engineer solutions. As your trusted manufacturing partner, our end-to-end sheet metal fabrication process ensures unmatched precision, speed, and reliability from concept to delivery. Every step is optimized for zero defects, Olympic-grade quality, and 24/7 customer collaboration—because your success is our priority.

Design Analysis & DFMA Optimization

Our engineering team conducts a comprehensive Design for Manufacturing and Assembly (DFMA) review to eliminate potential issues before production begins. This collaborative process ensures your design is optimized for cost, quality, and manufacturability—without compromising functionality.
Tolerance Validation: All critical dimensions are verified against ISO 2768 standards and your project-specific requirements.
Laser Cutting: ±0.05mm (standard), ±0.02mm (precision)
Bending Accuracy: ±0.1° (standard), ±0.05° (precision)
Material Expertise: Tailored guidance for CRS, HRS, Aluminum, and Galvanized Steel to balance performance, cost, and application needs.
24-Hour Feedback: Receive actionable design improvements within a day—no delays, no guesswork.

Transparent Pricing & Quoting

Clear, upfront costs with no hidden fees—because transparency builds trust. Our AI-driven quoting system delivers real-time estimates based on design complexity, material selection, and volume.
Volume Discounts: Competitive pricing for high-volume runs—no minimums, no surprises.
24-Hour Quote Turnaround: Get detailed pricing within 24 hours to accelerate your project timeline.

Rapid Prototyping (7–10 Days)

Speed without compromise. Our in-house capabilities deliver functional prototypes that mirror final production quality—enabling rapid validation and iteration.

Process Step	Laser Cutting	Bending	Welding (TIG/MIG)	Powder Coating
Tolerance	±0.05mm	±0.1°	±0.05mm bead	60–120μm ±5μm
Lead Time	Same-day	24h	48h	72h
Quality Assurance	100% inspection	100% inspection	100% inspection	100% inspection
Same-Day Design Review: Engineers analyze your CAD files immediately for manufacturability.
End-to-End In-House Execution: Laser cutting → bending → welding → powder coating—all under one roof.
Zero-Defect Guarantee: Every prototype undergoes 100% inspection with “Olympic Quality” standards—precision that exceeds industry benchmarks.

Mass Production Scalability

When you’re ready to scale, we deliver consistent, high-volume production with the same precision as your prototype. Our ISO 9001-certified processes ensure reliability at any volume.
Automated Precision: CNC-controlled laser cutters, press brakes, and robotic welders maintain tolerances within ±0.05mm (laser) and ±0.1° (bend) across thousands of parts.
Statistical Process Control (SPC): Real-time monitoring of critical parameters ensures 99.98% first-pass yield.
99.7% On-Time Delivery: Dedicated logistics and 24/7 production monitoring guarantee your parts arrive when you need them.
24/7 Customer Support: A dedicated account manager is available around the clock for urgent adjustments, technical queries, or design tweaks.

---

Why Wuxi Lead Is Your Trusted Partner

“We don’t just meet specifications—we exceed expectations. With zero defects guaranteed, Olympic-grade precision, and 24/7 collaboration, we transform your designs into reality—on time, every time.”

Key Metric	Wuxi Lead Precision Machinery	Industry Standard
Laser Cutting Tolerance	±0.05mm (standard)	±0.1mm
Bending Accuracy	±0.1° (standard)	±0.2°
On-Time Delivery Rate	99.7%	92–95%
Defect Rate	0.02%	0.5–1.0%

Your Project. Our Precision. Zero Compromises.
Contact Us Today to start your journey with a partner who treats your success as their mission.

---

Why Choose Wuxi Lead Precision

Partner with Wuxi Lead Precision Machinery: Your End-to-End Fabrication Ally

At Wuxi Lead Precision, we don’t just manufacture parts—we collaborate as strategic partners. From initial design to final finish, our integrated capabilities ensure precision, reliability, and speed—helping you accelerate time-to-market with confidence.

Zero Defects Commitment

Every component undergoes 100% in-process inspection using advanced CMM and optical measurement systems. Our statistical process control (SPC) protocols ensure defect rates below 0.001%, meeting aerospace and medical-grade quality requirements.

Olympic Quality Precision Standards

Achieving ±0.001″ (0.025 mm) tolerance consistency across all processes—validated through ISO 9001-certified quality management systems. Our laser cutting, bending, and welding operations are calibrated to deliver repeatable accuracy for critical aerospace, automotive, and industrial applications.

24/7 Customer Service & Integrated Workflow

Your project’s success is our priority—around the clock. Our engineering team provides real-time support, expedited quotes, and rapid response to technical queries, ensuring seamless collaboration regardless of time zone or urgency. From raw material to finished part, our single-source fabrication eliminates supply chain complexity.

Capability	Wuxi Lead Precision	Industry Standard
Tolerance Control	±0.001″ (0.025 mm) precision	±0.005″ (0.13 mm)
Quality Assurance	100% CMM-verified inspection	Random sampling (5–10%)
Support Response	<2 hours for critical issues	24–48 hours
End-to-End Service	Seamless laser cutting → bending → welding → powder coating	Fragmented multi-supplier chain

Ready to Optimize Your Project?

Maximize efficiency and minimize costs with our complimentary Design for Manufacturability (DFM) analysis. Our senior engineers will review your CAD files, identify optimization opportunities, and deliver a tailored quote within 24 hours.

Contact Our Team:
📧 [email protected] | 📞 +86-13961886740

---
