Engineering Guide: Custom Cnc Metal Cutting

Engineering Insight: The Critical Role of Precision in Custom CNC Metal Cutting

In the realm of advanced manufacturing, custom CNC metal cutting stands as a cornerstone of modern industrial capability. At Wuxi Lead Precision Machinery, we understand that precision is not merely a performance metric—it is the foundation upon which reliability, safety, and innovation are built. Whether producing components for aerospace systems, defense applications, or high-performance industrial equipment, the margin for error in custom CNC metal cutting is effectively zero. This demand for absolute accuracy drives every facet of our engineering process, from material selection to final inspection.

Precision in CNC metal cutting ensures dimensional consistency, surface integrity, and geometric accuracy across production runs. Even deviations measured in microns can lead to component failure in high-stress environments. This is especially critical in sectors such as military and aerospace, where parts must endure extreme temperatures, pressures, and mechanical loads. At Lead Precision, our CNC machining centers operate with tolerances as tight as ±0.002 mm, supported by real-time monitoring systems and closed-loop feedback mechanisms that maintain control throughout the cutting process.

Our commitment to precision is underscored by our proven track record in mission-critical projects. We have supplied components for national defense systems and contributed to infrastructure projects associated with Olympic-scale events—applications where failure is not an option. These experiences have refined our ability to manage complex geometries, exotic alloys, and stringent quality requirements under demanding timelines.

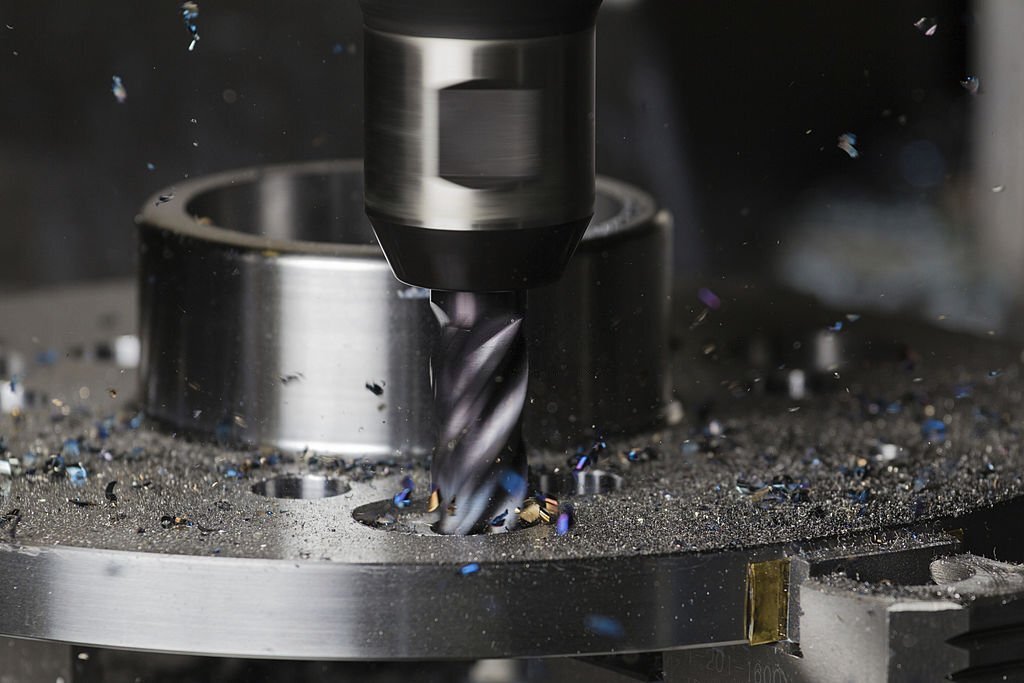

Custom CNC metal cutting at Lead Precision leverages multi-axis machining (up to 5-axis simultaneous movement), enabling the production of intricate features in a single setup. This reduces cumulative error, improves surface finish, and enhances repeatability. Our engineers employ advanced simulation software to model toolpaths and anticipate thermal deformation, ensuring that the final product matches the digital design with exceptional fidelity.

Material selection further influences the precision of the final component. We routinely work with titanium alloys, Inconel, hardened steels, and aluminum aerospace grades—each presenting unique challenges in thermal expansion, tool wear, and chip evacuation. Our process parameters are optimized per material, ensuring optimal cutting speeds, feed rates, and coolant application.

Below are key performance specifications that define our custom CNC metal cutting capabilities:

Precision is not achieved through machinery alone—it is the result of integrated engineering expertise, rigorous quality control, and a culture of continuous improvement. At Wuxi Lead Precision Machinery, we bring decades of applied knowledge to every custom CNC metal cutting project, ensuring that each component meets the highest standards of performance and reliability.

Precision Specs & Tolerances

Technical Capabilities: Precision Engineered for Complex Metal Components

Wuxi Lead Precision Machinery delivers advanced custom CNC metal cutting solutions engineered for the most demanding high-value manufacturing sectors. Our core strength lies in integrating state-of-the-art multi-axis machining with rigorous, data-driven quality validation. This ensures components meet exacting functional and dimensional requirements critical for aerospace, medical device, and industrial automation applications where failure is not an option.

Our production backbone comprises a modern fleet of 5-axis CNC machining centers from leading global manufacturers. These systems provide simultaneous multi-directional tool movement, enabling the precise fabrication of intricate geometries—deep cavities, compound angles, organic contours—in a single setup. This eliminates cumulative error from multiple fixtures, significantly improving part accuracy while reducing lead times and handling costs. We routinely machine challenging materials including aerospace-grade aluminum alloys (7075-T6, 2024), titanium (Gr5, Gr2), stainless steels (17-4PH, 316L), and high-temperature superalloys (Inconel 718), maintaining tight control over surface integrity and metallurgical properties.

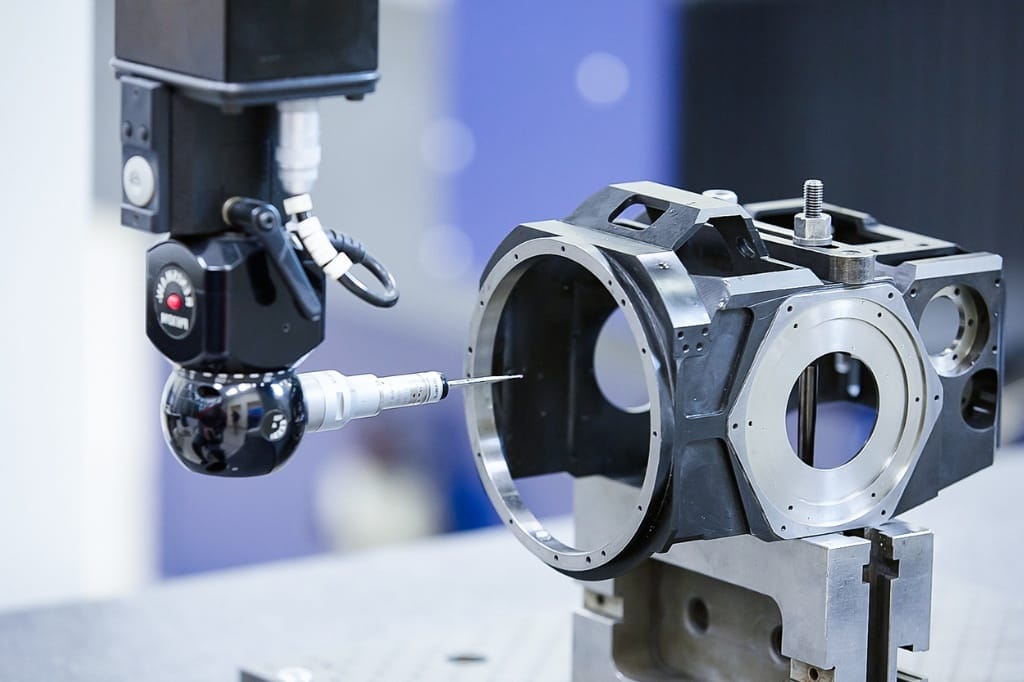

Quality assurance is not a final checkpoint but an integrated process. Every critical dimension and feature undergoes verification using calibrated Coordinate Measuring Machines (CMMs) equipped with high-precision probes and advanced metrology software. This generates comprehensive inspection reports traceable to international standards (ISO 17025), providing objective evidence of conformance. Our CMM protocols cover dimensional accuracy, geometric tolerances (GD&T), and surface finish verification against client specifications, ensuring components function flawlessly in their final assembly.

The following table details our standard achievable tolerance ranges under controlled production conditions. Specific project requirements may allow for tighter control through optimized process planning.

Note: Achievable tolerances depend on part geometry, material, feature size, and specified surface finish. Final capability is confirmed during Engineering Review.

This combination of 5-axis precision machining and systematic CMM-based quality control forms the foundation of our value proposition. We transform complex engineering drawings into certified, high-integrity metal components with repeatability and accountability. Partnering with Wuxi Lead ensures your critical metal parts are manufactured to the highest standards of dimensional fidelity, directly supporting your product performance, reliability, and time-to-market objectives in competitive global markets. Our engineering team collaborates closely with clients during the design phase to optimize manufacturability and ensure tolerance specifications are both achievable and cost-effective.

Material & Finish Options

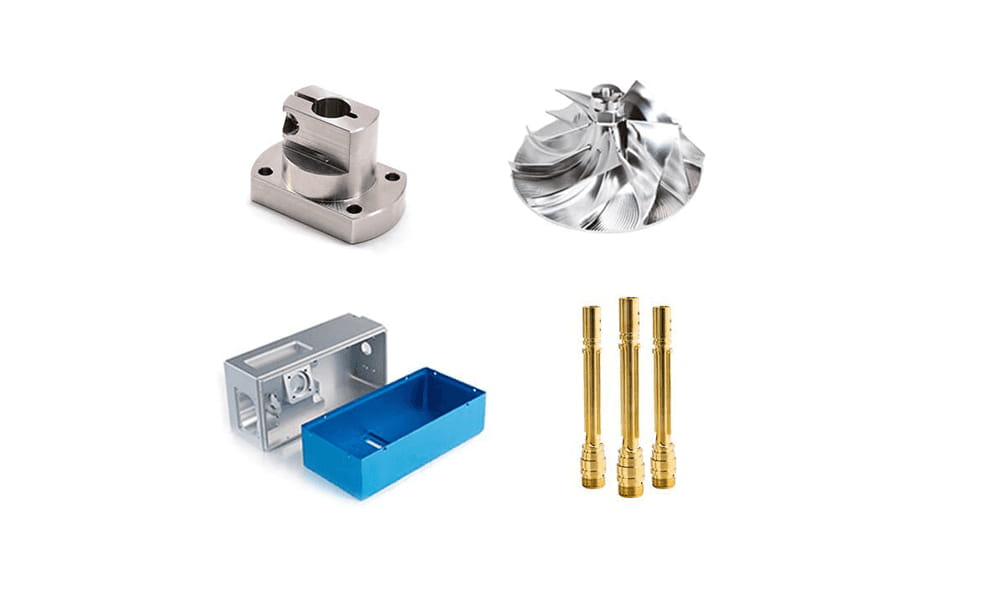

Material Selection for Custom CNC Metal Cutting: Aluminum, Steel, and Titanium

Selecting the appropriate material is a critical step in custom CNC metal cutting, directly influencing part performance, durability, and cost-efficiency. At Wuxi Lead Precision Machinery, we specialize in high-precision CNC machining of aluminum, steel, and titanium—three of the most widely used metals in aerospace, automotive, medical, and industrial applications. Each material offers distinct mechanical properties, machinability characteristics, and compatibility with surface treatments such as anodizing.

Aluminum is favored for its excellent strength-to-weight ratio, thermal conductivity, and corrosion resistance. It is particularly suitable for lightweight structural components and heat-sensitive applications. Grade 6061-T6 is among the most commonly machined aluminum alloys due to its balanced mechanical properties and weldability. Aluminum is also highly compatible with anodizing, a surface treatment that enhances wear resistance and provides electrical insulation. Type II (sulfuric acid) and Type III (hardcoat) anodizing are frequently applied to aluminum parts to improve surface hardness and longevity.

Steel offers superior strength, toughness, and wear resistance, making it ideal for high-load and high-durability applications. Among the various grades, 4140 and 1018 are frequently used in precision CNC machining. 4140, a chromium-molybdenum alloy steel, provides excellent hardenability and is often used in shafts, gears, and tooling. 1018, a low-carbon steel, is valued for its machinability and is commonly selected for prototypes and non-critical structural parts. While steel does not anodize, it can be treated with electroplating, passivation, or powder coating to enhance corrosion resistance and surface finish.

Titanium, particularly Grade 5 (Ti-6Al-4V), is renowned for its exceptional strength-to-density ratio and resistance to extreme environments. It is widely used in aerospace, medical implants, and marine applications. Although titanium is more challenging to machine due to its low thermal conductivity and tendency to gall, our advanced CNC systems at Wuxi Lead are optimized to handle these challenges with precision tooling and controlled cutting parameters. Titanium does not support conventional anodizing but can undergo specialized surface treatments such as plasma electrolytic oxidation (PEO) for improved wear and corrosion resistance.

Below is a comparison of key mechanical properties for commonly machined grades:

Choosing the right material involves balancing performance requirements, environmental exposure, and post-processing needs. Our engineering team at Wuxi Lead Precision Machinery supports clients in material selection to ensure optimal part functionality and manufacturability.

Manufacturing Process & QC

Achieving Zero Defects in Custom CNC Metal Cutting: The Wuxi Lead Process

At Wuxi Lead Precision Machinery, our custom CNC metal cutting process is engineered from inception to delivery for absolute precision and zero defects. This rigorous methodology, honed for demanding aerospace, medical, and energy sector clients, transforms complex designs into flawless production components through three integrated phases: Design Integration, Precision Prototyping, and Scalable Mass Production. Each stage employs closed-loop metrology and stringent process controls to eliminate errors before they occur, ensuring first-article conformity and sustained quality at volume.

Design Integration begins with deep collaboration. Our engineering team works directly with client CAD/CAM data, performing comprehensive manufacturability analysis (DFM) to optimize geometry, material selection, and toolpaths. We identify potential stress points, thin-wall challenges, or tolerance stack-ups early, proposing solutions that maintain functional intent while enhancing producibility. This phase includes thermal stability assessment for critical alloys and fixture strategy development, ensuring the design is not just possible, but perfectly executable on our high-precision equipment. Full documentation, including annotated models and process plans, is established before any metal is cut.

Precision Prototyping is our critical validation step. Utilizing the exact production-grade CNC machining centers and metrology systems intended for volume runs, we manufacture initial prototypes under controlled conditions. Every feature is verified against the nominal CAD model using our Zeiss CONTURA CMM and optical comparators, generating detailed First Article Inspection (FAI) reports per AS9102 standards. Dimensional accuracy, surface finish, and material integrity are meticulously assessed. Any deviation triggers immediate root-cause analysis and process refinement; the prototype phase is complete only when zero non-conformances are recorded across all critical characteristics. This de-risks the transition to mass production.

Scalable Mass Production leverages the validated process with unwavering discipline. Our automated production cells, featuring Haas and DMG MORI 5-axis machining centers with integrated probing, run under real-time SPC monitoring. In-process gauging checks critical dimensions after key operations, feeding data directly into control charts. Full final inspection of every component against the approved FAI standard is mandatory, utilizing our coordinate measuring machines and surface roughness testers. Material traceability from certified mills to finished part shipment is maintained, with all process parameters and inspection results archived for full lifecycle accountability. This systematic execution guarantees consistent output meeting the most stringent zero-defect requirements.

Our core production capabilities ensure this methodology delivers:

This integrated Design-Prototype-Production workflow, underpinned by advanced technology and uncompromising quality protocols, is how Wuxi Lead Precision Machinery consistently achieves zero-defect outcomes for the world’s most critical metal components.

Why Choose Wuxi Lead Precision

Partner with Lead Precision for Unmatched Expertise in Custom CNC Metal Cutting

At Wuxi Lead Precision Machinery, we understand that precision, reliability, and consistency are non-negotiable in high-performance manufacturing. As a trusted leader in precision CNC machining based in China, we specialize in delivering custom CNC metal cutting solutions tailored to the exacting demands of aerospace, automotive, medical device, and industrial equipment industries. Our engineering-driven approach ensures that every component we produce meets the highest standards of dimensional accuracy, surface finish, and material integrity.

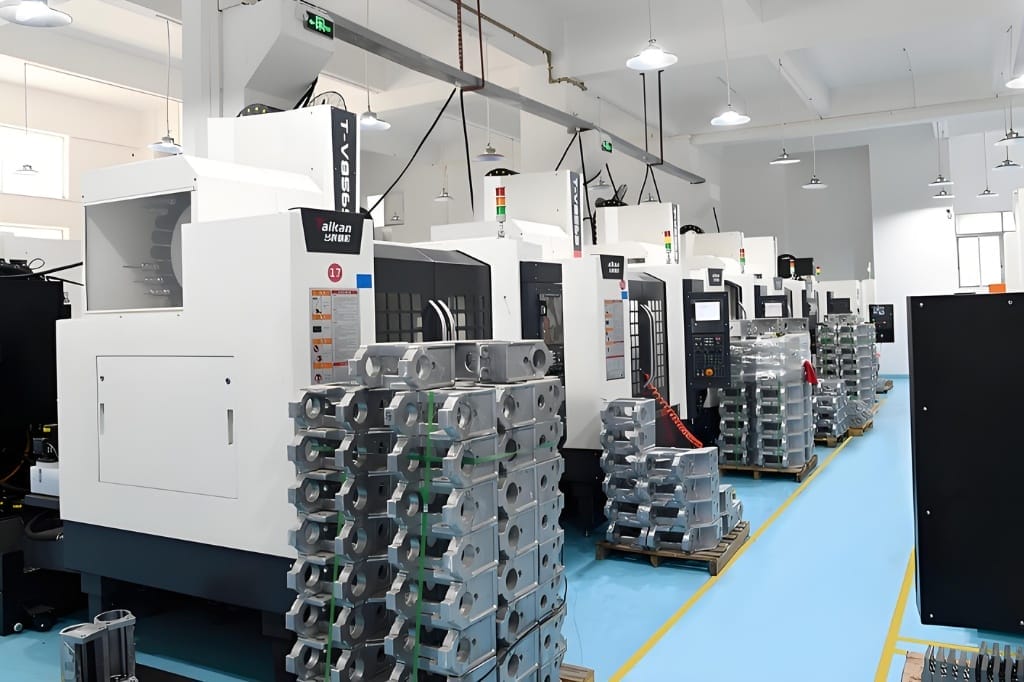

When you partner with Lead Precision, you gain more than a supplier—you gain a strategic manufacturing ally. Our facility is equipped with advanced 3-, 4-, and 5-axis CNC machining centers, high-speed milling systems, and multi-axis turning centers, enabling us to handle complex geometries and tight tolerance requirements with ease. From prototype development to full-scale production runs, our team of certified engineers and machinists work closely with clients to optimize designs, select appropriate materials, and streamline manufacturing processes for cost-efficiency and speed-to-market.

We pride ourselves on a quality-first culture. Our ISO 9001:2015-certified production environment is supported by comprehensive in-process inspection protocols and final quality verification using coordinate measuring machines (CMM), optical comparators, and surface roughness testers. Every custom CNC metal cutting project undergoes rigorous quality control to ensure compliance with international standards and customer-specific requirements.

Our capabilities are engineered for performance across a broad range of metals, including aluminum alloys, stainless steel, titanium, brass, and specialty alloys. Whether your application demands high-volume production or low-volume, high-mix complexity, we deliver consistent results with on-time delivery and full traceability.

Below are key technical specifications that define our custom CNC metal cutting services:

At Wuxi Lead Precision Machinery, we believe that true precision begins with partnership. Let us help you turn complex designs into flawless metal components. Contact us today at [email protected] to discuss your next custom CNC metal cutting project. Our engineering team is ready to support your goals with responsive communication, technical insight, and manufacturing excellence.
