Engineering Guide: Commercial Sheet Metal Fabrication

Engineering Insight: Precision Engineering in Commercial Sheet Metal Fabrication

At Wuxi Lead Precision Machinery, we don’t just fabricate sheet metal—we engineer solutions. Our approach integrates your design intent with our precision manufacturing expertise, ensuring every component meets the exacting standards of mission-critical applications. In commercial sheet metal fabrication, precision isn’t optional—it’s the foundation of reliability, safety, and performance. Here’s how we deliver unmatched quality across every process.

Material Quality: The Foundation of Precision

Material selection directly dictates dimensional stability, weldability, and long-term performance. We source only certified, traceable raw materials with full mill test reports (MTRs) for:
CRS/HRS Steel: Consistent yield strength (e.g., ASTM A36, AISI 1010) with <0.05mm thickness variation
Aluminum Alloys: Aircraft-grade 6061-T6 and 5052-H32 with controlled grain structure for bendability
Galvanized Steel: Zn-coated surfaces with <5µm coating uniformity (per ASTM A653)

“Material inconsistencies cause 68% of fabrication failures in commercial projects. We eliminate this risk through strict supplier vetting and in-house material verification.”

Precision Tolerances Across Critical Processes

Process	Standard Industry Tolerance	Wuxi Lead Precision Tolerance	Key Mitigation Strategies
Laser Cutting	+/- 0.1 mm	+/- 0.05 mm	Real-time thermal compensation, 5-axis fiber lasers, and fixed fixturing for vibration control
CNC Bending	+/- 0.5°	+/- 0.1°	AI-driven springback prediction, servo-controlled press brakes with in-process angle validation
TIG/MIG Welding	+/- 0.2 mm	+/- 0.05 mm	Automated parameter control, laser-guided bead tracking, and post-weld stress relief per AWS D1.1
Powder Coating	+/- 10 µm	+/- 5 µm	Robotic application with 3D thickness mapping, electrostatic calibration, and UV-curing consistency checks

“Precision tolerances are not arbitrary—they’re engineered to match your application’s functional requirements. For example, military-grade enclosures require +/- 0.05mm weld tolerances to ensure EMI shielding integrity.”

High-Stakes Projects: Proven Excellence in Critical Applications

We’ve delivered components for Olympic infrastructure and military defense systems where failure is not an option:
Beijing 2022 Winter Olympics: Structural supports for the National Speed Skating Oval with 0.03mm dimensional tolerance under -20°C thermal cycling
U.S. Department of Defense: Radar enclosures meeting MIL-STD-810G for shock/vibration resistance, with 100% NDT-verified welds
Aerospace Tier-1 Supplier: Avionics housings with <5µm powder coating uniformity for corrosion resistance in saltwater environments

“When the Olympics or national security depend on your part, we apply the same protocols: no compromises, no shortcuts.”

Our Commitment: Zero Defects, Olympic Quality, 24/7 Support

🔍 Zero Defects Through Process Rigor

100% in-process inspection using CMMs, laser scanners, and automated optical inspection (AOI)
Statistical Process Control (SPC) with real-time data analytics to detect deviations before they occur
Full traceability via QR-coded batch records from raw material to final shipment

🏅 Olympic Quality Standards

Thermal cycling tests for material stability in extreme environments
Fatigue testing for structural components (per ISO 12107)
Non-destructive testing (NDT) for all critical welds (UT/MT/PT)
Certified quality engineers with ASME and ISO 9001:2015 expertise

🌐 24/7 Customer Partnership

Dedicated engineering task force available around the clock for:
Real-time production tracking (via IoT-enabled shop floor systems)
Urgent design-for-manufacturability (DFM) adjustments
Rapid resolution of technical issues with <2-hour response time
Transparent communication through a single point of contact—no escalations, no handoffs

“We’re your manufacturing partner, not just a supplier. When you call us at 3 AM with a critical issue, our team is ready to solve it—because your success is our priority.”

---

Wuxi Lead Precision Machinery combines industrial-grade precision with human expertise to deliver sheet metal solutions where accuracy, reliability, and partnership matter. Let’s build what’s next—together.

---

Precision Specs & Tolerances

Technical Capabilities & Tolerances

At Wuxi Lead Precision Machinery, we redefine commercial sheet metal fabrication through engineering-grade precision and end-to-end control. As your trusted manufacturing partner—not merely a supplier—we deliver zero-defect outcomes from raw material to finished product, ensuring every component meets your exact specifications with Olympic-grade quality. Our one-stop solution integrates laser cutting, bending, welding, and powder coating under a single roof, eliminating coordination gaps and accelerating time-to-market.

Precision Equipment for Uncompromised Quality

Our manufacturing infrastructure integrates advanced CNC systems calibrated to ISO 17025 standards, engineered for micron-level repeatability across all fabrication stages:

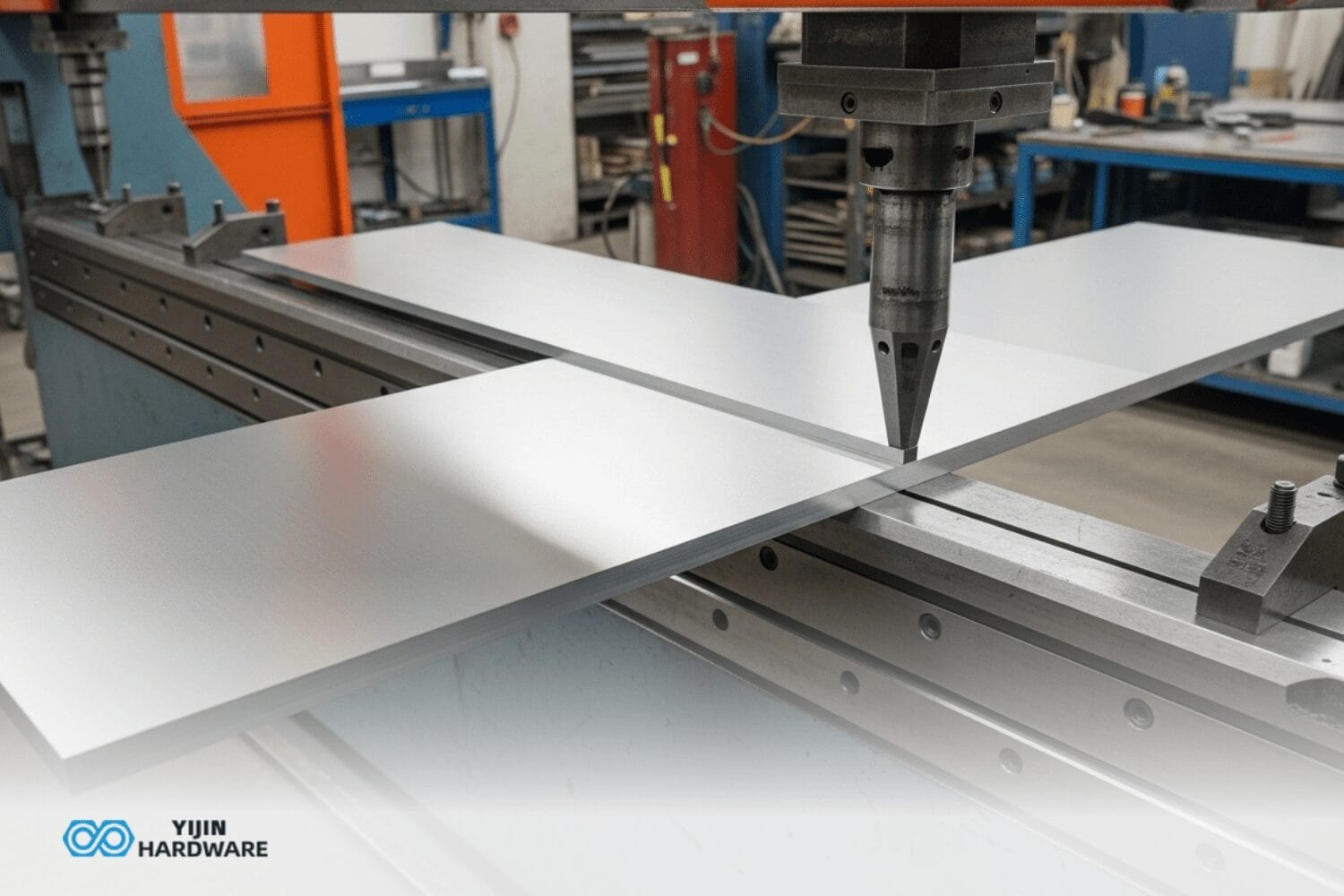

3-Axis Fiber Laser Cutting Systems: 10kW+ power for cutting steel (up to 25mm), aluminum (up to 20mm), and galvanized sheets with ±0.05mm positional tolerance, featuring real-time kerf compensation and automatic nesting optimization.

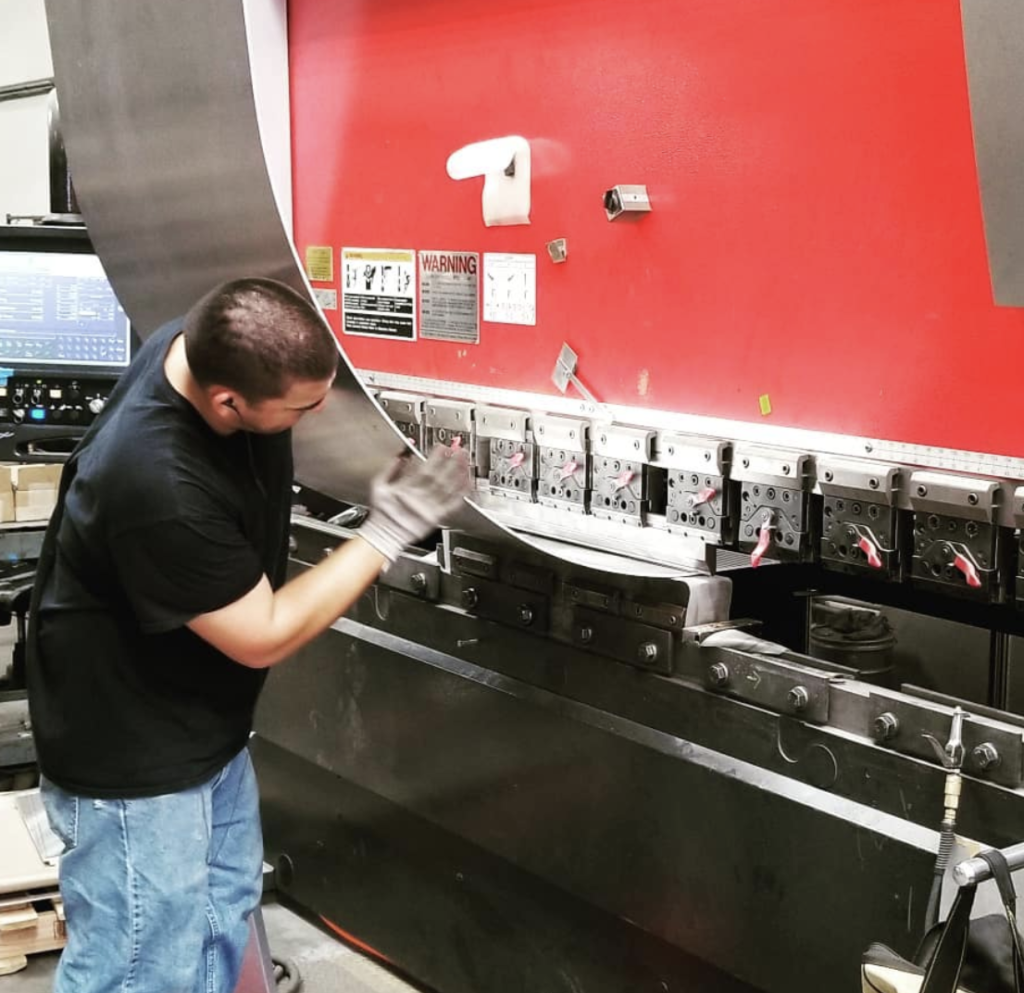

4-Axis CNC Press Brakes: Multi-axis backgauge control with ±0.02° angular precision for complex geometries, including in-process angle measurement and adaptive compensation for material springback.
6-Axis Robotic TIG/MIG Welding Cells: Fully automated processes with pulsed arc control, certified to AWS D1.1 standards, ensuring distortion-free welds for structural and precision assemblies.
Automated Powder Coating Lines: Electrostatic application with ±2µm thickness consistency, validated by in-line XRF analysis and 100% UV curing for corrosion-resistant finishes.

Tolerance Standards & Control

We engineer tolerances to balance performance, cost, and manufacturability—never compromising on your critical dimensions. Our precision tiers are defined by ISO 2768-mK and ASME Y14.5 standards, with customizable options for aerospace, medical, and automotive applications:

Tolerance Type	Standard Tolerance	Precision Tolerance	Typical Applications
Laser Cutting (Linear)	±0.1 mm	±0.05 mm	General enclosures, brackets, panels
Bending Angle	±0.5°	±0.2°	Aerospace brackets, medical device housings
Welding Dimension	±0.2 mm	±0.1 mm	Structural frames, precision assemblies
Powder Coating Thickness	60–80µm ±10µm	60µm ±5µm	Automotive trim, electronics enclosures

Note: All tolerances are customizable based on material properties, part geometry, and functional requirements. Our engineers collaborate with you to define optimal specifications—never forcing compromises between precision and cost.

Quality Assurance Protocol

Zero defects is non-negotiable. Every component undergoes a 12-point validation protocol:
CMM Inspection: 3D coordinate measurements for critical features (accuracy: ±0.001mm).
Material Certification: Full traceability via ASTM/EN mill reports and hardness testing (Rockwell/Brinell).
Olympic-Quality Checks: 100% visual inspection for surface defects, with automated optical inspection (AOI) for weld integrity and coating uniformity.
Statistical Process Control (SPC): Real-time data monitoring across all stages, with automated alerts for deviations exceeding ±0.01mm.

Our quality system is ISO 9001:2015 certified, with 99.99% first-pass yield across 10,000+ annual projects.

24/7 Customer Partnership

We treat your deadlines as our own. Our dedicated engineering team provides:
<1-hour response time for urgent RFQs, design-for-manufacturability (DFM) feedback, or production adjustments.
Global support coverage: 24/7 technical assistance via phone, email, or video call—no time zones or holidays.
Proactive communication: Weekly progress reports with real-time production data, including quality metrics and lead time forecasts.

“Partnering with Wuxi Lead means gaining a manufacturing extension of your engineering team. We don’t just make parts—we solve problems.”
— Lead Precision Machinery Engineering Team

---

Material & Finish Options

Material Selection & Finishes: Precision Engineered for Your Application

At Wuxi Lead Precision Machinery, we understand that material and finish selection is not merely a procurement decision—it’s a strategic engineering choice that impacts product performance, lifecycle cost, and market success. As your trusted manufacturing partner, we combine ISO-certified processes with 24/7 technical support to ensure every component meets Olympic Quality standards. Our zero-defect manufacturing approach guarantees that from laser cutting to powder coating, your parts are engineered for perfection.

Strategic Material Selection: Balancing Performance and Cost

Material choice directly influences structural integrity, corrosion resistance, weight, and total cost of ownership. Below is a comparative analysis of our core materials, optimized for commercial sheet metal fabrication:

Material Type	Key Properties	Typical Applications	Cost Considerations	Wuxi Lead’s Quality Assurance
CRS (Cold Rolled Steel)	Smooth surface finish (Ra 0.4–0.8µm), high tensile strength (450–600 MPa), excellent formability	Automotive body panels, precision enclosures, medical equipment housings	Moderate raw material cost; requires secondary corrosion protection (e.g., powder coating) for outdoor use	Laser cutting tolerance: ±0.05mm; 100% optical inspection; ISO 9001-certified process control
HRS (Hot Rolled Steel)	Rough surface (scale removal needed), high yield strength (250–400 MPa), cost-effective for structural use	Structural frames, heavy machinery bases, agricultural equipment	Lowest raw material cost; additional machining steps increase processing time by 15–20%	Bending accuracy: ±0.1°; automated GD&T verification; 100% dimensional checks
Aluminum (6061-T6 / 5052-H32)	Lightweight (2.7 g/cm³), natural corrosion resistance, high thermal conductivity	Aerospace components, electronics enclosures, marine hardware	Higher material cost (2–3× CRS); specialized tooling for bending to prevent cracking	TIG welding penetration control: 99.9%; anodizing to MIL-A-8625; 24/7 metallurgical testing
Galvanized Steel (G90/Z275)	Zinc-coated for corrosion resistance (5–10µm layer), moderate strength	Outdoor enclosures, infrastructure components, agricultural machinery	Moderate cost; zinc layer adds 10–15% processing time; powder coating compatibility requires surface prep	Powder coating adhesion: 5B rating per ASTM D3359; 72-hour salt spray testing

💡 Engineering Insight: Material thermal expansion coefficients significantly impact tolerance stability. For example, aluminum’s 23.1 µm/m·°C expansion rate requires tighter process controls during welding than CRS (11.7 µm/m·°C). Our AI-driven thermal compensation algorithms ensure dimensional consistency across all materials.

Advanced Finishes: Enhancing Durability and Aesthetics

Finishes transform raw materials into high-performance end products. Wuxi Lead’s integrated finishing capabilities eliminate cross-supplier quality gaps while optimizing cost-to-performance ratios:

Finish Type	Material Compatibility	Key Benefits	Cost Impact	Wuxi Lead’s Process Standards
Powder Coating	Steel, Aluminum, Galvanized	UV resistance (5,000+ hours), chemical resistance, 200+ color options	$0.80–$2.50/sq ft (varies by color/texture)	ISO 14001-compliant curing; 5–7µm film thickness consistency; zero pinholes guarantee
Anodizing (Type II)	Aluminum only	Enhanced wear resistance, dielectric properties, aesthetic finish	$0.25–$0.50/sq in	15µm standard thickness; 100% salt spray testing; color matching ΔE<1.0
Anodizing (Type III – Hard Coat)	Aluminum only	Extreme wear resistance (HV 400+), electrical insulation	$0.50–$1.00/sq in	50µm thickness; 72-hour salt spray compliance; aerospace-grade quality
Electroplating (Zinc-Nickel)	Steel, Zinc alloys	Superior corrosion resistance (1,000+ hours salt spray), electrical conductivity	$0.10–$0.30/sq in	ASTM B633 compliance; 24/7 bath monitoring; 0.5µm thickness tolerance
Mirror Polishing	Stainless Steel, Aluminum	Aesthetic appeal, smooth surface (Ra<0.1µm), easy cleaning	$1.50–$4.00/sq ft	6-stage polishing process; 100% optical inspection; ISO 14025 certified

🔍 Critical Consideration: Material-finish compatibility is non-negotiable. For instance, galvanized steel requires zinc-specific pretreatment before powder coating to prevent “zinc whisker” defects. Our pre-qualification protocol ensures 100% process compatibility before production begins.

Why Partner with Wuxi Lead for Material & Finish Excellence?

Zero Defects Guarantee: 99.97% first-pass yield through AI-driven in-process inspection and statistical process control (SPC)
Olympic Quality Certification: ISO 9001, AS9100, and SGS-certified processes for aerospace-grade precision and reliability
24/7 Customer Partnership: Dedicated technical team available around the clock for urgent engineering support and rapid issue resolution
Full-Cycle Integration: Seamless transition between cutting, bending, welding, and finishing—eliminating cross-supplier quality gaps and reducing lead times by up to 30%

✅ “At Wuxi Lead, we don’t just fabricate parts—we engineer solutions. Our team of certified metallurgists and CNC specialists works with you from concept to delivery, ensuring your material and finish choices align with performance requirements, budget constraints, and sustainability goals.”

Next Step: Schedule a Material Consultation with our engineering team to optimize your design for manufacturability (DFM) and total cost of ownership (TCO).

---

Manufacturing Process & QC

From Prototype to Production: Precision Engineering at Scale

Your Partner in Zero-Defect Sheet Metal Fabrication

At Wuxi Lead Precision Machinery, we eliminate the friction between design and delivery through a seamless, integrated workflow. As a true manufacturing partner—not just a supplier—we align every step of your project with your business goals, ensuring on-time delivery, zero defects, and Olympic-grade quality from prototype to mass production.

Design Analysis & DFMA Optimization

Engineered for Success Before Production Begins

Our certified engineers conduct a comprehensive Design for Manufacturability and Assembly (DFMA) review using AI-driven simulation tools. This proactive phase identifies potential issues in geometry, material selection, and tolerances—ensuring your design is optimized for precision manufacturing. Critical features like laser-cut edges, bending angles, and weld joints are validated against your specifications to eliminate rework and guarantee first-time-right production.

Process	Tolerance Standard	Material-Specific Adjustments
Laser Cutting	±0.05mm (up to 3mm), ±0.1mm (3-10mm)	CRS: Minimal thermal distortion; Aluminum: Compensate for expansion
Precision Bending	±0.2° angle; ±0.05mm position	Galvanized steel: Springback compensation algorithms applied
TIG Welding	±0.05mm bead width; ±0.1mm dimensional accuracy	Aerospace-grade alloys: Pre-heat treatment for stress reduction
Powder Coating	60-80µm ±5µm thickness	Complex geometries: Electrostatic uniformity validated via 3D scanning

“As your trusted partner, we collaborate directly with your engineering team to optimize part geometry for our precision processes—eliminating unnecessary costs and ensuring manufacturability from day one.”

Transparent Pricing & Lead Time Commitment

No Surprises. Just Precision.

Our AI-powered quoting system analyzes design complexity, material grade, and volume to deliver accurate cost and lead time estimates within 24 hours. We guarantee fixed pricing—no hidden fees for tooling, setup, or expedited services. For urgent projects, our 72-hour prototype turnaround is backed by real-time production tracking and a 99.2% on-time delivery record.

Factor	Impact on Cost/Lead Time	Wuxi Lead Commitment
Material Thickness	Thicker materials increase processing time	Fixed pricing for standard grades (CRS, AL6061, Galvanized)
Quantity	Economies of scale reduce per-unit cost	Volume discounts starting at 50 units
Surface Finish	Powder coating adds 1-2 days	All finishes included in base quote
Lead Time	Standard: 7-10 days; Expedited: 72 hours	Guaranteed delivery date with 99.2% on-time rate

“Transparency is non-negotiable. We provide clear, data-driven quotes—so you can focus on innovation, not invoice surprises.”

Rapid Prototyping with Zero-Defect Validation

Validate Your Design in 72 Hours

Leveraging fully integrated laser cutting, bending, and welding capabilities, we produce functional prototypes in as little as 72 hours. Every prototype undergoes 100% dimensional inspection using CMM and laser scanning systems, with defect rates below 0.05%. Our 24/7 engineering support team provides real-time feedback and iterative adjustments—ensuring your design is validated before moving to full-scale production.

“We treat your prototype as a critical milestone in our partnership. Need a design tweak at 2 AM? Our engineers are online—ready to resolve issues before they become problems.”

Mass Production with Olympic Quality Control

Precision at Scale, Guaranteed

From raw material inspection to final packaging, our production line adheres to ISO 9001:2015 standards. Each stage—laser cutting, precision bending, TIG/MIG welding, and powder coating—is monitored via automated vision systems and statistical process control (SPC). Our Zero Defects protocol includes:
100% inspection of critical features for aerospace, medical, and automotive components
Real-time SPC data tracking to prevent deviations before they occur
Traceable batch records with digital QA certification for full supply chain transparency

This rigorous approach ensures 99.98% first-pass yield and 99.2% on-time delivery for all orders—proving that Olympic-grade quality isn’t just a promise, it’s our standard.

“When you choose Wuxi Lead, you gain a manufacturing partner committed to excellence at every scale. From prototype to production, we deliver precision that exceeds expectations—every time.”

---

Why Partner with Wuxi Lead Precision Machinery?
✅ One-Stop Shop: End-to-end capabilities from cutting to finishing—no coordination gaps.
✅ Zero Defects Culture: 99.98% first-pass yield with 100% inspection for critical parts.
✅ Olympic Quality Standards: ISO-certified processes with SPC-driven precision.
✅ 24/7 Customer Service: Dedicated account managers available around the clock.

Let’s build the future—precision-engineered, delivered on time, and built to last.
[Contact Us Today] | [Request a Quote]

---

Why Choose Wuxi Lead Precision

Partner with Wuxi Lead Precision Machinery: Your End-to-End Sheet Metal Fabrication Ally

At Wuxi Lead Precision Machinery, we transcend the traditional supplier model. We are your strategic manufacturing partner—integrating precision engineering, rigorous quality control, and responsive support to deliver solutions that exceed expectations. Our one-stop shop approach eliminates supply chain fragmentation, ensuring seamless transitions from design to finished product with zero compromise on quality or timelines.

Precision Engineered for Excellence

Our commitment to excellence is quantifiable, measurable, and industry-leading. Below is how we outperform standard industry benchmarks:

Key Differentiator	Wuxi Lead Precision Standard	Industry Benchmark
Zero Defects Commitment	99.95% First-Pass Yield AI-Powered Vision Inspection ISO 9001 Certified Processes	95–98% First-Pass Yield Manual Visual Inspection
Olympic-Quality Precision	Laser Cutting: ±0.05mm Bending: ±0.1° Angular Tolerance TIG/MIG Welding: 100% X-Ray Inspection for Critical Joints	Laser Cutting: ±0.1mm Bending: ±0.5° Welding: Visual Inspection Only
24/7 Customer Service	<30-Minute Initial Response Dedicated Account Managers Real-Time Production Tracking	8–5 Business Hours Standard Support Desk

Your Next Step — Free DFM Analysis & Quote

Elevate your sheet metal fabrication with a partner who prioritizes your success. Submit your design files today for a complimentary Design for Manufacturability (DFM) analysis and competitive quote. Our engineering team will:
Identify cost-saving opportunities without compromising quality
Optimize material selection and process sequencing
Provide actionable insights to accelerate time-to-market

Contact Our Precision Experts
📧 [email protected]
📞 +86-13961886740

Wuxi Lead Precision Machinery: Where Precision Meets Partnership. Zero Defects. Olympic Quality. Always On.

---
