Engineering Insight The Non-Negotiable Value of Precision in CNC Machining

In high-stakes manufacturing sectors, dimensional accuracy is not merely a specification; it is the foundational requirement determining product functionality, safety, and market viability. At Wuxi Lead Precision Machinery, we engineer CNC machines where precision transcends standard tolerances, operating consistently within micrometer-level deviations. This capability is rigorously validated through our direct contributions to projects demanding absolute reliability, including critical components for Olympic timing systems and specialized aerospace/military applications where failure is inconceivable. These engagements underscore a fundamental truth: modern precision engineering requires machines capable of sustained, repeatable accuracy under real-world production conditions, not just idealized laboratory results.

The cost of insufficient precision manifests rapidly. Microscopic deviations in mating surfaces lead to assembly failures, premature wear, or catastrophic system malfunctions in final products. In medical device manufacturing, a micron-scale error can compromise biocompatibility. Within aerospace assemblies, thermal expansion mismatches due to imprecise machining jeopardize structural integrity at altitude. Achieving true precision demands more than high-resolution encoders; it necessitates holistic engineering. This includes thermally stable machine structures with compensated linear axes, advanced vibration damping, rigorously calibrated spindle systems, and closed-loop control capable of real-time error correction. Material behavior under cutting forces and environmental fluctuations must be anticipated and mitigated within the machine’s design architecture. Lead Precision integrates these principles from the ground up, ensuring our CNC platforms deliver not just initial accuracy, but long-term stability across shifts and seasons.

Our commitment to measurable precision is demonstrated in the core specifications of our flagship 5-axis machining centers. The following table details the performance benchmarks achievable under standard operating conditions, reflecting our engineering focus on repeatability and thermal management:

Performance Parameter	Specification	Measurement Standard
Positioning Accuracy (X/Y/Z)	±0.0005 mm	ISO 230-2:2014
Repeatability (X/Y/Z)	±0.0002 mm	ISO 230-2:2014
Rotary Axis Accuracy (B/C)	±2 arc seconds	ISO 230-2:2014
Thermal Drift (8h operation)	< 2.0 µm	Internal Protocol
Volumetric Compensation	Full 3D (NMTBA)	Custom Lead System

This level of performance is non-negotiable for clients producing turbine blades, satellite components, or life-saving surgical instruments. It eliminates costly scrap, reduces secondary operations, and ensures seamless integration within complex global supply chains. Wuxi Lead Precision Machinery’s engineering heritage, proven in the most demanding applications, provides the assurance that your critical components will meet the exacting standards required for success in today’s advanced manufacturing landscape. Precision is not an option; it is the baseline from which we operate.

---

Precision Specs & Tolerances

Advanced 5-Axis CNC Machining Capabilities at Wuxi Lead Precision Machinery

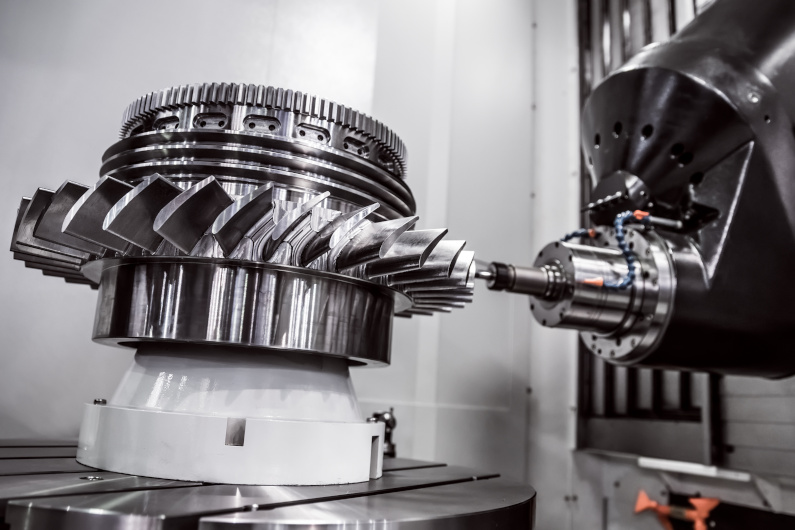

At Wuxi Lead Precision Machinery, our technical foundation is built upon state-of-the-art 5-axis CNC machining systems, enabling us to deliver complex, high-precision components for aerospace, medical, automotive, and industrial equipment sectors. Our 5-axis CNC platforms integrate simultaneous multi-axis motion, allowing tool access from virtually any direction. This capability eliminates the need for multiple setups, reduces cumulative error, and ensures superior geometric accuracy on intricate contours and deep cavities.

Our machining centers are equipped with high-speed spindles, rigid thermal compensation systems, and advanced tool monitoring, supporting continuous, unmanned operation with consistent repeatability. Materials ranging from aluminum alloys and titanium to hardened steels and engineering plastics are machined to exacting standards. The integration of high-precision rotary and tilt tables ensures ±0.001° angular accuracy, critical for complex freeform surfaces and tight-tolerance features.

Complementing our machining capacity is a comprehensive quality control infrastructure anchored by Coordinate Measuring Machine (CMM) inspection. Our Zeiss and Hexagon CMM systems provide full 3D metrology validation, capturing dimensional data with sub-micron resolution. Every critical feature—position, profile, flatness, concentricity, and angular relationships—is verified against engineering specifications. Inspection reports are generated in full compliance with ISO 9001 and customer-specific quality protocols, ensuring complete traceability and audit readiness.

All machining and inspection workflows are supported by integrated CAD/CAM/CAE systems, enabling seamless translation from digital design to physical part. We utilize Siemens NX, Mastercam, and SolidWorks for toolpath optimization, collision detection, and in-process simulation. This digital thread ensures first-time-right production and rapid iteration for prototype and production runs alike.

Our technical team comprises certified CNC programmers, process engineers, and QC specialists with over a decade of experience in high-mix, low-volume precision manufacturing. This expertise allows us to tackle challenging geometries, thin-wall structures, and multi-feature components while maintaining cycle time efficiency and cost control.

The following table outlines our standard machining tolerances and capabilities, reflecting our commitment to precision and consistency across all production batches.

Parameter	Standard Tolerance	High-Precision Capability
Linear Dimension (mm)	±0.01 mm	±0.005 mm
Angular Tolerance	±0.05°	±0.01°
Positional Accuracy	±0.01 mm	±0.003 mm
Surface Roughness (Ra)	1.6 µm	0.4 µm (polished finishes)
Feature-to-Feature Tolerance	±0.012 mm	±0.006 mm
Repeatability (5-axis)	±0.008 mm	±0.002 mm
Maximum Work Envelope (mm)	1200 x 800 x 750	Custom upon request

Wuxi Lead Precision Machinery maintains a continuous improvement culture, with annual equipment calibration, preventive maintenance schedules, and operator training programs. This disciplined approach ensures that our technical capabilities remain at the forefront of precision CNC manufacturing in China and beyond.

---

Material & Finish Options

Material Selection for Precision CNC Machining

Selecting optimal materials is critical for achieving performance, durability, and cost efficiency in precision CNC machining. At Wuxi Lead Precision Machinery, we prioritize material properties aligned with your application’s mechanical, thermal, and environmental demands. Below, we detail key considerations for aluminum, steel, and titanium alloys, alongside anodizing finishes essential for surface enhancement.

Aluminum Alloys dominate aerospace, automotive, and electronics due to their high strength-to-weight ratio, excellent thermal conductivity, and corrosion resistance. 6061-T6 and 7075-T6 are industry standards; the former offers weldability and moderate strength, while the latter delivers superior hardness for structural components. Aluminum’s low density reduces part weight without compromising rigidity, though its lower wear resistance necessitates protective finishes in high-friction applications.

Steel Alloys provide unmatched tensile strength and wear resistance for heavy-duty industrial machinery, tooling, and defense components. 4140 and 304 stainless steel are prevalent: 4140 excels in high-stress environments with heat-treatable hardness, while 304 offers robust corrosion resistance for medical or marine use. Steel’s higher density increases part mass but ensures longevity under extreme loads. Machinability varies significantly—free-machining steels like 12L14 improve production speed but may sacrifice strength.

Titanium Alloys such as Grade 5 (Ti-6Al-4V) are indispensable for aerospace and medical implants where extreme strength, biocompatibility, and corrosion resistance outweigh cost considerations. Titanium withstands temperatures up to 600°C and resists saltwater degradation, yet its low thermal conductivity challenges machining efficiency. Tool wear accelerates during titanium processing, demanding specialized CNC parameters and rigid machine setups to maintain precision.

Anodizing Finishes enhance surface properties of aluminum parts. Type II (sulfuric acid) anodizing delivers decorative, corrosion-resistant coatings in varied colors, ideal for consumer-facing components. Type III (hardcoat) anodizing produces thicker, harder layers (60-100 µm) with superior abrasion resistance for hydraulic systems or military hardware. Both processes improve adhesion for paints and lubricants while preserving dimensional accuracy—critical for tight-tolerance assemblies.

Material specifications guide informed decisions. Key properties are summarized below:

Material	Density (g/cm³)	Tensile Strength (MPa)	Machinability Rating	Thermal Conductivity (W/mK)
Aluminum 6061-T6	2.7	310	90	167
Steel 4140	7.85	655	65	42.6
Titanium Ti-6Al-4V	4.43	900	30	6.7

At Wuxi Lead Precision Machinery, our CNC expertise spans material-specific toolpath optimization and finish control. We rigorously validate material certifications and anodizing thickness per AMS 2469 or MIL-A-8625 standards, ensuring your components meet stringent operational requirements. Partner with us to transform material potential into precision-engineered reality.

---

Manufacturing Process & QC

Design: Engineering Precision from the Ground Up

At Wuxi Lead Precision Machinery, the foundation of flawless CNC production begins with meticulous design engineering. Our team of senior CNC engineers collaborates closely with clients to translate conceptual requirements into technically viable, manufacturable designs. Utilizing advanced CAD/CAM software such as Siemens NX and Mastercam, we perform comprehensive geometric modeling, tolerance analysis, and toolpath simulation. Every design is evaluated for material efficiency, structural integrity, and compliance with international standards including ISO 2768 and ASME Y14.5. Finite Element Analysis (FEA) is routinely applied to predict stress distribution and thermal behavior, ensuring that components will perform reliably under real-world conditions. This phase also integrates Design for Manufacturing (DFM) principles to eliminate unnecessary complexity, reduce cycle times, and prevent potential defects before any metal is cut.

Prototyping: Validating Performance and Precision

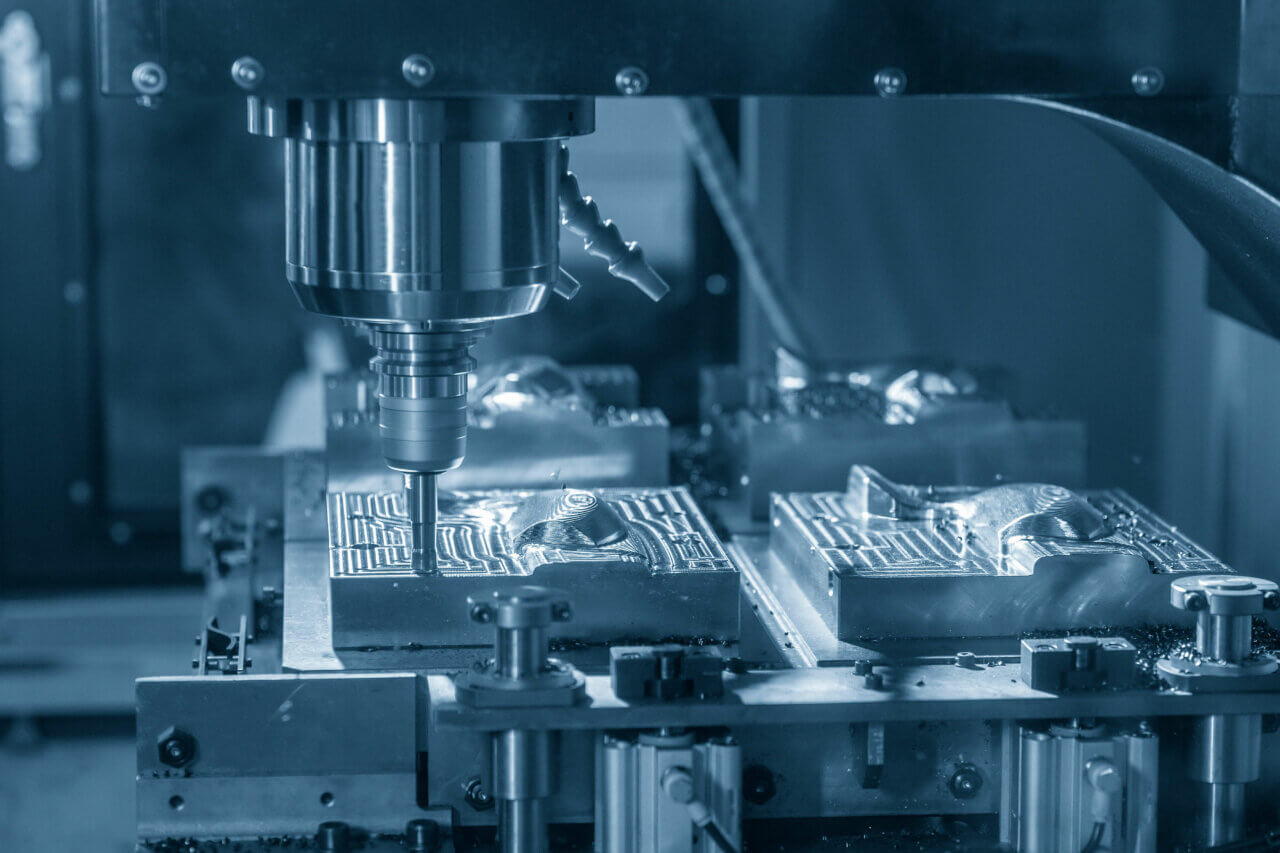

Once the design is finalized, we proceed to low-volume prototyping using high-precision 5-axis CNC machining centers. These machines, equipped with Renishaw probing systems and laser tool measurement, ensure micron-level accuracy during prototype fabrication. Each prototype undergoes full dimensional inspection via Coordinate Measuring Machines (CMM) and 3D scanning to verify conformity to design specifications. Functional testing—such as fit checks, assembly validation, and performance under load—is conducted to identify any hidden flaws. Feedback from this stage is systematically incorporated into process refinement, including adjustments to cutting parameters, fixturing strategies, and inspection protocols. This iterative validation loop ensures that the transition to mass production is seamless and defect-free.

Mass Production: Scalable Excellence with Zero Defects

With prototype approval, we initiate full-scale production under a rigorously controlled manufacturing environment. Our facility operates under ISO 9001-certified quality management systems, with real-time monitoring of machine performance, tool wear, and environmental conditions. Each production run employs Statistical Process Control (SPC) to detect deviations before they affect output quality. In-process inspections occur at defined intervals, supported by automated vision systems and surface finish testers. Final inspection includes 100% critical dimension checks and batch sampling for material certification and hardness verification.

To achieve zero defects, Wuxi Lead implements a closed-loop corrective action system. Any non-conformance triggers immediate root cause analysis using the 8D methodology, with corrective measures documented and applied across all relevant production lines. Operator training, machine calibration, and preventive maintenance schedules are all synchronized to sustain peak performance.

The following table outlines key specifications of our CNC production capabilities:

Parameter	Specification
Machine Types	3-axis, 4-axis, 5-axis CNC Machining Centers
Spindle Speed	Up to 24,000 RPM
Positioning Accuracy	±0.005 mm
Repeatability	±0.002 mm
Maximum Work Envelope	1200 x 800 x 600 mm
Materials Supported	Aluminum, Stainless Steel, Titanium, Inconel, Plastics
Surface Finish (Ra)	As low as 0.4 µm
Tolerance Range	±0.01 mm to ±0.001 mm (tight-tolerance options)
Quality Standards	ISO 9001, ISO 13485 (medical), ISO 14001
Production Capacity	50,000+ parts per month

Through disciplined execution across design, prototyping, and mass production, Wuxi Lead Precision Machinery delivers uncompromising quality—ensuring every component meets the highest standards of precision and reliability.

---

Why Choose Wuxi Lead Precision

Partner with Lead Precision for Uncompromised CNC Excellence

In the demanding landscape of precision manufacturing, selecting a CNC machining partner transcends mere equipment procurement. It requires aligning with an engineering team that operates at the intersection of advanced technology, unwavering quality control, and deep industry understanding. At Wuxi Lead Precision Machinery, we engineer solutions for mission-critical components where tolerances measured in microns directly impact your product’s performance, reliability, and market success. Our German-engineered CNC centers are not simply machines; they are the foundation of a partnership dedicated to eliminating your production bottlenecks and elevating your output to aerospace and medical-grade standards.

We recognize that downtime is revenue lost and quality failures carry significant reputational risk. This drives our commitment to engineering robustness into every spindle, linear guide, and control system. Our machines undergo rigorous 72-hour continuous load testing and thermal stability validation before shipment, ensuring they deliver consistent accuracy from the first part to the millionth. This operational reliability translates directly to your bottom line through reduced scrap rates, minimized unplanned maintenance, and predictable throughput. Our integrated Siemens or Fanuc controls are optimized for complex multi-axis operations, providing the stability needed for intricate geometries in hardened steels, titanium, and advanced composites without compromising surface finish.

The true differentiator lies in our collaborative engineering approach. We do not offer off-the-shelf solutions. Our application engineers engage deeply with your specific part requirements, material challenges, and production volume goals. This consultative process ensures the selected machine configuration – whether a high-speed 5-axis vertical machining center or a precision turning-milling center – is meticulously tailored to maximize your return on investment. We provide comprehensive process validation support, including fixture design consultation and initial program optimization, accelerating your path to first-article approval.

Consider the measurable performance advantages our core machine platforms deliver consistently across global manufacturing facilities:

Critical Performance Parameter	Lead Precision Standard	Typical Industry Benchmark
Positioning Accuracy (X, Y, Z)	±1.5 µm	±3.0 µm to ±5.0 µm
Repeatability (3σ)	≤0.8 µm	1.5 µm to 2.5 µm
Spindle Runout (TIR)	≤0.5 µm	≤1.0 µm
Thermal Growth Compensation	Active Dual-Sensor System	Basic Single-Sensor or None
Standard Lead Time (Configured)	8-10 Weeks	12-16+ Weeks

This level of precision and reliability is non-negotiable for industries where failure is not an option. Partnering with Lead Precision means gaining a committed engineering ally focused on your long-term operational success, not just a transactional equipment sale. We provide ongoing technical support, preventative maintenance protocols, and continuous process improvement insights to safeguard your investment.

Elevate your manufacturing capability with a partner who engineers for zero compromise. Contact our engineering team directly at [email protected] to initiate a confidential discussion about your specific precision machining challenges. Include your component specifications and target volumes for a tailored capability assessment and machine recommendation within 48 business hours. Let us demonstrate how Lead Precision becomes your strategic advantage in the global precision manufacturing arena. Your pursuit of perfection demands nothing less.

---
