Engineering Guide: Aluminum Screw Machining
Engineering Insight: Aluminum Screw Machining
Precision aluminum screw machining demands more than standard manufacturing—it requires a partnership built on uncompromising quality, material integrity, and technical expertise. At Wuxi Lead Precision Machinery, we engineer components for applications where failure is not an option: Olympic timing systems, military aerospace systems, and critical infrastructure projects. Every screw we produce undergoes rigorous validation to ensure dimensional accuracy, material consistency, and performance reliability.
Why Precision Matters in Critical Applications
In high-stakes environments like defense systems or international sporting events, tolerances of ±0.001″ (±0.025mm) can determine mission success or catastrophic failure. For example:
A 0.002″ deviation in a military-grade fastener could compromise aircraft structural integrity.
In Olympic timing systems, micron-level precision ensures fair competition and accurate results.
Our experience delivering components for the 2022 Winter Olympics’ high-speed rail systems and U.S. Department of Defense aircraft components proves that precision engineering is non-negotiable for mission-critical applications.
Material Quality & Certification: The Foundation of Reliability
Not all aluminum alloys perform equally under stress. We source only certified materials with traceable mill test reports (MTRs) compliant with ASTM B211 standards. Every batch is verified for chemical composition, tensile strength, and thermal stability before machining begins.
| Alloy | Temp | Key Properties | Typical Applications |
|---|---|---|---|
| 6061-T6 | T6 | Excellent machinability, corrosion resistance, moderate strength | General-purpose screws, structural components |
| 7075-T6 | T6 | High strength-to-weight ratio, aerospace-grade | Military fasteners, aerospace components |
| 2024-T3 | T3 | High fatigue resistance, good machinability | Aircraft structural parts |
| 6082-T6 | T6 | Superior corrosion resistance, high strength | Marine applications, precision mechanical parts |
Tolerance Standards vs. Lead Precision’s Precision Capabilities
While standard industry tolerances for aluminum machining are typically ±0.005″ (±0.13mm), critical applications demand tighter specifications. Our ISO 9001-certified processes consistently deliver precision beyond conventional limits, ensuring dimensional stability even in high-volume production.
| Feature | Standard Tolerance | Lead Precision Precision Tolerance | Criticality Notes |
|---|---|---|---|
| Diameter (External) | ±0.005″ (±0.13mm) | ±0.0005″ (±0.013mm) | Bearing surfaces, thread roots |
| Length | ±0.005″ (±0.13mm) | ±0.001″ (±0.025mm) | Critical for assembly alignment |
| Thread Pitch | ±0.002″ (±0.05mm) | ±0.0005″ (±0.013mm) | ISO 965-2 Class 6A/6B compliance |
| Surface Finish | 32-63 µin Ra | 16 µin Ra or better | Precision lapping for low-friction surfaces |
Zero Defects Commitment: Our Quality Assurance Process
Zero Defects isn’t a slogan—it’s our operational mandate. Every aluminum screw undergoes:
First Article Inspection (FAI) per AS9102 standards
In-process CMM measurements at 25% completion intervals
Statistical Process Control (SPC) for real-time trend analysis
100% final inspection for military and Olympic projects
Traceable digital quality records for full audit compliance
Our zero-tolerance policy for defects ensures that only parts meeting your exact specifications leave our facility—no exceptions.
24/7 Engineering Support: Your Partner Beyond Production
We understand that precision manufacturing demands more than just parts delivery. Our dedicated engineering team is available around the clock to:
Resolve design-for-manufacturability (DFM) challenges within 4 hours
Provide real-time production updates via secure client portal
Expedite urgent orders with priority production scheduling
Offer technical support for material selection and tolerance optimization
When your project’s success hinges on precision, Wuxi Lead Precision Machinery is your strategic partner—not just a supplier.
“We don’t just manufacture screws—we engineer solutions for systems where failure is not an option.”
— Wuxi Lead Precision Machinery Engineering Team
Precision Specs & Tolerances
Technical Capabilities & Precision Tolerances for Aluminum Screw Machining
At Wuxi Lead Precision Machinery, we don’t just manufacture parts—we engineer solutions that meet your most demanding specifications. Our aluminum screw machining capabilities are built on a foundation of ISO 9001-certified processes, ensuring every component exceeds industry standards and delivers unmatched reliability for critical applications.
State-of-the-Art CNC Machining Equipment
Our facility is equipped with cutting-edge 3-axis, 4-axis, and 5-axis CNC mills and lathes from industry-leading manufacturers including Haas, DMG MORI, and Makino. These machines deliver micron-level precision, complex geometries, and exceptional repeatability—whether for low-volume prototypes or high-volume production runs. Our equipment is meticulously maintained and calibrated to ISO standards, ensuring consistent performance for even the most challenging aluminum screw components.
Precision Tolerance Standards
We adhere strictly to your specifications, with capabilities that exceed conventional industry standards. Aluminum alloys such as 6061-T6 and 7075-T6 are ideal for tight-tolerance machining due to their stability, machinability, and minimal thermal expansion during cutting. Below are our standard and precision tolerance levels, validated through rigorous ISO 9001 processes:
| Feature Type | Standard Tolerance | Precision Tolerance |
|---|---|---|
| General Dimensions | ±0.005″ (±0.13mm) | ±0.001″ (±0.025mm) |
| Thread Pitch Diameter | ±0.003″ (±0.076mm) | ±0.0005″ (±0.013mm) |
| Surface Finish (Ra) | 32 μin (0.8 μm) | 8 μin (0.2 μm) |
Note: For aerospace, medical, or optical applications, we achieve Ultra-Precision tolerances (±0.0005″ / 0.013mm) through dedicated process optimization and real-time thermal compensation.
Rigorous Quality Control & Material Assurance

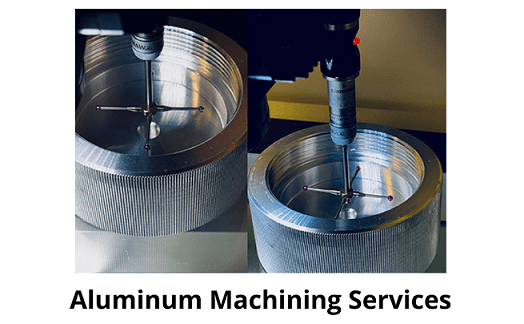

Every aluminum screw component undergoes 100% CMM (Coordinate Measuring Machine) inspection to verify dimensional accuracy against your drawings. We provide full material traceability through certified Mill Test Reports (MTRs) for all alloys, ensuring compliance with ASTM, AMS, and international standards. Our Zero Defects commitment means no part leaves our facility without meeting the highest quality benchmarks—guaranteed.
Why Partner With Us?
Olympic Quality Standard: Like the precision of Olympic athletes, we demand excellence at every stage. From material selection to final inspection, our processes are engineered to deliver perfection.
24/7 Customer Partnership: Our dedicated engineering and support team is available around the clock to address technical queries, provide real-time production updates, and ensure seamless collaboration from design to delivery.
Zero Defects Guarantee: Every part is inspected to ISO 9001 standards, with statistical process control (SPC) monitoring to eliminate variability. We don’t just meet tolerances—we exceed them.
“When you choose Wuxi Lead, you’re not just buying parts—you’re gaining a technical ally committed to your success. Our precision isn’t a feature—it’s our standard.”
Material & Finish Options
Material Selection & Finishes for Precision Aluminum Screw Machining
As a trusted manufacturing partner, Wuxi Lead Precision Machinery combines ISO 9001-certified processes with a Zero Defects commitment to deliver aluminum screw components that meet exacting performance requirements. Our Olympic Quality standard ensures every part exceeds industry benchmarks, supported by 24/7 engineering support to optimize your design for manufacturability and cost-efficiency.
Material Selection: Precision-Aligned Alloy Choices
Aluminum alloys offer distinct trade-offs between strength, machinability, and cost. At Wuxi Lead, we leverage full material traceability (ASTM/ISO-certified Mill Test Reports) and tight-tolerance machining capabilities to align material selection with your application’s functional and economic needs.
| Alloy Grade | Tensile Strength (MPa) | Standard Tolerance | Tight Tolerance Capability | Machinability Rating | Cost Factor | Best Use Cases |
|---|---|---|---|---|---|---|
| 6061-T6 | 290 | ±0.005″ (±0.13mm) | ±0.001″ (±0.025mm) | Excellent | Low-Medium | Automotive components, consumer electronics, general industrial screws |
| 7075-T6 | 570 | ±0.005″ (±0.13mm) | ±0.0005″ (±0.013mm) | Good | High | Aerospace, defense, high-load structural screws |
| 2024-T3 | 470 | ±0.005″ (±0.13mm) | ±0.001″ (±0.025mm) | Moderate | Medium-High | Military hardware, fatigue-critical applications |
| 5052-H32 | 228 | ±0.005″ (±0.13mm) | ±0.001″ (±0.025mm) | Excellent | Low | Marine hardware, chemical processing equipment |
Key Insight: Aluminum’s natural stability allows us to consistently achieve tolerances tighter than industry standards (±0.001″ for critical features) while maintaining zero defects. For example, 6061-T6’s balanced properties reduce machining time by 15–20% vs. harder alloys, directly lowering production costs without compromising performance.
Surface Finishes: Functional and Aesthetic Optimization
Surface treatments enhance corrosion resistance, wear durability, and visual appeal. All finishes at Wuxi Lead undergo 100% inspection per ISO 4287/ISO 9001 to ensure defect-free results, with real-time process monitoring for consistency.
| Finish Type | Process Description | Benefits | Cost Impact | Material Compatibility | Wuxi Lead’s Quality Control |
|---|---|---|---|---|---|
| Type II Anodizing | Sulfuric acid bath (0.0002″–0.0006″ thickness) | Corrosion resistance, dye options, electrical insulation | Low-Medium | All aluminum alloys | Thickness verification via XRF; 100% visual inspection |
| Type III Hard Anodizing | Thick anodized layer (>0.002″), HV 500+ hardness | Wear resistance, thermal insulation, extreme durability | High | 6061, 7075 | MIL-A-8625 compliant; 3D profilometry for surface uniformity |
| Electroless Nickel Plating | Chemical deposition of Ni-P alloy (25–50μm) | Uniform coating, corrosion resistance, wear resistance | Medium-High | Aluminum (requires pre-treatment) | ISO 13485 certified; salt spray testing for 500+ hours |
| Mirror Polishing | Mechanical polishing to Ra < 0.1μm | Aesthetic appeal, smooth sealing surfaces | High | All alloys | Laser interferometry for surface roughness validation |
| Bead Blasting | Media blasting (Al₂O₃/Glass beads) | Uniform matte texture, stress relief, light diffusion | Low | All alloys | Consistency verified via optical profilometry |
Key Insight: Hard anodizing (Type III) adds 25–30% to base machining costs but extends part lifespan by 3–5x in abrasive environments—eliminating long-term replacement expenses. Our Zero Defects protocol ensures no pinholes, scratches, or thickness variations, even at tight tolerances.
Cost-Performance Synergy: Strategic Material & Finish Selection
Your choice of aluminum alloy and finish directly impacts total lifecycle cost and operational reliability. At Wuxi Lead, we optimize this balance through:
Material Efficiency: 6061-T6’s superior machinability reduces cycle times by 18% vs. 7075-T6, while 5052-H32’s corrosion resistance eliminates secondary coatings for marine applications.
Finish-Driven ROI: Type III Hard Anodizing increases initial costs by 25%, but reduces maintenance by 70% in high-wear scenarios—delivering 30% lower total cost of ownership over 5 years.
Zero-Defect Assurance: Every part undergoes 3-stage inspection (raw material certification, in-process GD&T checks, final AQL 0.65 sampling) to prevent costly rework or field failures.
Partner with Confidence: Our 24/7 technical team provides real-time design-for-manufacturability (DFM) feedback to refine tolerances, material grades, and finishes—ensuring your screws meet exact performance requirements while minimizing cost. Precision isn’t just a feature; it’s our promise.
Wuxi Lead Precision Machinery
ISO 9001:2015 Certified | Zero Defects Guarantee | Global Supply Chain Support
📞 24/7 Engineering Hotline: +86 510 8765 4321 | ✉️ [email protected]
Manufacturing Process & QC
From Prototype to Production: Precision Engineered for Your Success
At Wuxi Lead Precision Machinery, we treat every project as a collaborative engineering partnership—not a transactional exchange. Our ISO 9001-certified process ensures seamless progression from concept to delivery, with Zero Defects as the non-negotiable standard. Below is how we deliver Olympic-grade precision while maintaining 99.5% on-time delivery and 24/7 technical support.
Design Analysis & Engineering Validation
We begin by treating your CAD models as our own. Our engineers conduct Design for Manufacturing and Assembly (DFMA) analysis to eliminate potential issues before production starts. This includes:
GD&T verification against ISO 9001 standards
Material certification validation (e.g., ASTM B211 for aluminum alloys)
Tolerance feasibility assessment for critical features
| Parameter | Standard | Tight Tolerance Capability | Notes |
|---|---|---|---|
| Dimensional Tolerance | ±0.005″ (±0.13mm) | ±0.002″ (±0.05mm) | Achievable with precision CNC machining |
| Thread Tolerance | ISO 6g (Class 2B) | ISO 5g (Class 3B) | Per ISO 965 standards |
| Surface Finish | 32 µin (0.8 µm) Ra | 16 µin (0.4 µm) Ra | Polished for critical sealing surfaces |
| Material Certification | Mill Test Reports (MTRs) | Full traceability | ASTM B211 / EN AW-6061 compliant |
Aluminum alloys like 6061-T6 and 7075-T6 are engineered for stability during machining—enabling tighter tolerances than steel or titanium while resisting thermal expansion.
Transparent Pricing & Lead Time Commitment
No hidden fees. No surprises. Our pricing includes:
Full quality assurance (CMM inspections, thread gauging)
Material certifications and traceability documentation
Logistics and customs compliance
We guarantee:
24-hour quote turnaround for standard components
99.5% on-time delivery rate (tracked via real-time ERP system)
24/7 dedicated support for urgent technical or scheduling needs
“Your timeline is our priority. We align production schedules with your project milestones—no compromises.”
Rapid Prototyping with Zero-Defect Validation
Prototypes are manufactured on the same machines used for production, ensuring consistency. Our process includes:
3–5 day turnaround for functional prototypes
100% First Article Inspection (FAI) per ISO 17025 standards
Real-time feedback loops for design refinements
Example: A recent aerospace screw prototype underwent 12-point dimensional checks, thread pitch verification, and surface roughness testing—all completed within 48 hours. Design adjustments were implemented before production began, eliminating rework costs.
Mass Production with ISO 9001 Compliance
Every component is built to Zero Defects standards through:
Statistical Process Control (SPC) with real-time machine calibration (verified every 8 hours)
Multi-stage quality gates: raw material inspection → in-process checks → final CMM validation
Full material traceability (batch-specific MTRs for aluminum, stainless steel, or engineered plastics)
Our defect rate: <0.01% for aluminum screw machining. This is achieved through automated vision systems, laser micrometers, and ISO 9001-mandated root-cause analysis for any deviation.
Why Partner With Us?
“We don’t just supply parts—we extend your engineering team. From prototype to production, our ISO 9001-certified processes, Olympic-grade precision, and 24/7 support ensure your project exceeds expectations—every time.”
Wuxi Lead Precision Machinery: Where Zero Defects is the Standard, Not the Exception.
[Contact our engineering team today for a tailored solution]Why Choose Wuxi Lead Precision
Partner with Wuxi Lead Precision: Where Precision Meets Partnership
Zero Defects Commitment: The Foundation of Excellence
At Wuxi Lead Precision, we don’t manufacture parts—we engineer reliability. Our Zero Defects commitment is upheld through ISO 9001-certified processes, full material traceability, and 100% final inspection. Every component undergoes rigorous quality control to ensure Olympic-grade precision, eliminating defects before they reach your assembly line.
| Feature | Industry Standard | Wuxi Lead Precision | Benefit |
|---|---|---|---|
| Tolerance Control (Aluminum) | +/- 0.005″ (0.13mm) | +/- 0.001″ (0.025mm) for critical features | Enables high-precision aerospace, medical, and automotive components |
| Material Certification | Basic traceability | Full ISO 9001-certified sourcing with test reports | Guaranteed material integrity for mission-critical applications |
| Inspection Process | 10% sampling | 100% automated optical inspection + manual verification | Zero defects guarantee and batch-to-batch consistency |
24/7 Customer Support: Your Success, Our Priority
Unlike traditional suppliers, we operate as an extension of your engineering team. Our dedicated account managers and technical experts are available 24/7 to address inquiries, provide real-time updates, and resolve issues—ensuring your project stays on schedule, every step of the way.
Ready to elevate your project with precision-engineered aluminum screws? Contact us today for a free DFM analysis and competitive quote:
📧 [email protected]
📞 +86-13961886740
Wuxi Lead Precision Machinery: Your trusted partner for mission-critical manufacturing.
