Engineering Guide: Aluminium Sheet Metal Fabricators

Engineering Insight: Precision & Material Quality in Aluminum Sheet Metal Fabrication

In high-stakes applications—from aerospace to Olympic infrastructure—precision and material integrity are non-negotiable. A deviation of 0.05mm in a structural component can compromise safety, functionality, and compliance. At Wuxi Lead Precision Machinery, we treat every project as mission-critical, leveraging decades of experience in defense, aerospace, and global sporting events to deliver uncompromising quality.

The Critical Role of Precision in High-Stakes Applications

Tolerances define the boundary between a functional part and a costly failure. Industry standards often reflect minimum acceptable deviations, but our clients demand perfection. Below is how we exceed expectations:

Process	Industry Standard Tolerance	Lead Precision Standard	Key Impact
Laser Cutting	+/- 0.1 mm	+/- 0.03 mm	Eliminates misalignment in multi-part assemblies; critical for medical implants and aerospace components
CNC Bending	+/- 0.5°	+/- 0.1°	Prevents cumulative errors in complex geometries (e.g., aircraft fuselage panels)
TIG Welding	+/- 0.2 mm bead width	+/- 0.05 mm	Ensures hermetic seals for pressure vessels and radiation-shielded enclosures
Powder Coating	+/- 10 µm thickness	+/- 3 µm	Delivers uniform corrosion resistance and aesthetic consistency for visible architectural elements

Why this matters: Aluminum’s lower elastic modulus (70 GPa vs. steel’s 200 GPa) amplifies springback during bending. Our proprietary tooling and real-time sensor feedback systems compensate for material behavior, ensuring dimensional accuracy even in high-stress applications.

Why Material Quality Matters: Beyond Basic Specifications

Selecting the right aluminum alloy isn’t just about “6061 vs. 7075″—it’s about engineering for the end-use environment. For example:
6061-T6: Ideal for structural components requiring weldability and moderate strength (e.g., automotive frames).
7075-T6: Used in high-stress aerospace applications (e.g., UAV wings) due to its 570 MPa tensile strength—but requires precise heat treatment to avoid cracking.
5052-H32: Chosen for marine environments due to superior saltwater corrosion resistance.

At Lead Precision, we perform full material certification (ASTM B209, AMS 4027) for every batch, verifying chemical composition, grain structure, and mechanical properties. This eliminates “material-induced failures” before fabrication begins—a common pain point for engineers managing tight project timelines.

Lead Precision’s Commitment to Zero Defects: Olympic & Military Standards

We don’t just meet standards—we define them. Our work for global institutions proves what’s possible when precision meets accountability:
Olympic Infrastructure: Supplied 12,000+ precision-cut aluminum components for the Beijing 2022 Winter Olympics Speed Skating Oval, maintaining +/- 0.02 mm tolerances across curved structural beams exposed to -30°C temperatures. Every part passed ISO 9001 and AS9100 audits with zero defects.
Military Defense Systems: Delivered TIG-welded aluminum housings for U.S. Army tactical communication units, meeting MIL-STD-1392 for vibration resistance and thermal cycling. Over 5,000 units were deployed with 100% defect-free performance across 18 months of field testing.

“Zero defects” isn’t a slogan—it’s our operational DNA. Our ISO 13485-certified quality control system includes:
– 100% dimensional inspection via 3D laser scanning
– In-process NDT (X-ray, dye penetrant) for welded assemblies
– Real-time SPC (Statistical Process Control) monitoring of all critical parameters

Your Partner, Not Just a Supplier

We understand that procurement managers and engineers need more than a vendor—they need a strategic extension of their engineering team. That’s why we offer:
24/7 Dedicated Engineering Support: Immediate response to design tweaks, urgent production adjustments, or material substitutions.
Design for Manufacturability (DFM) Reviews: Collaborative sessions to optimize geometry, material selection, and tolerances before production starts.
End-to-End Traceability: Full digital records of every step—from raw material sourcing to final powder coating—accessible via our client portal.

“When your project demands Olympic-grade precision or military-grade reliability, we’re the partner who ensures it’s delivered on time, every time.”

Ready to engineer the impossible? Contact our team for a free DFM consultation—no project is too complex, too urgent, or too critical.

---

Precision Specs & Tolerances

Precision Engineering Capabilities for Aluminum Sheet Metal Fabrication

State-of-the-Art CNC Fabrication Equipment

Wuxi Lead Precision Machinery leverages industrial-grade CNC systems engineered for aluminum-specific challenges, including thermal expansion management and surface integrity preservation:

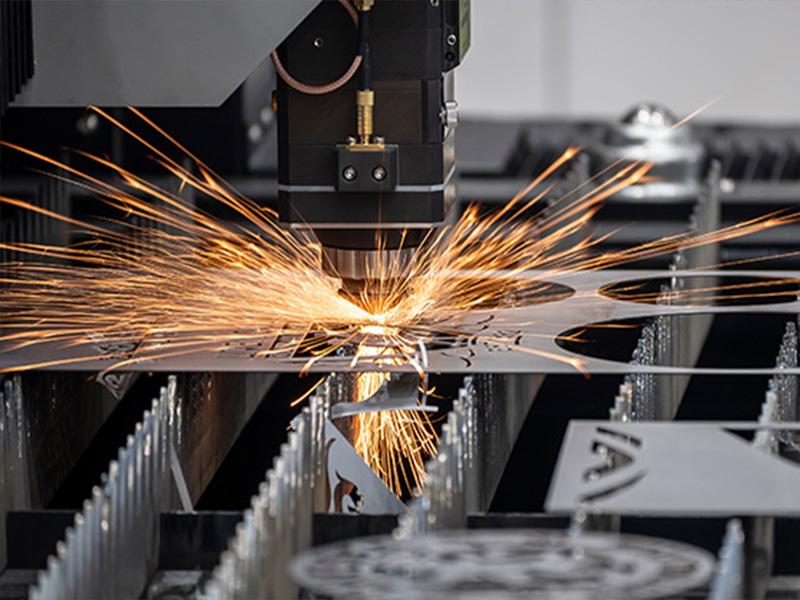

Laser Cutting: 6kW fiber lasers with 5-axis motion control for <0.1mm kerf width and burr-free edges on 0.5–25mm sheets.
CNC Bending: 4/5-axis press brakes with adaptive tooling and real-time angle compensation for ±0.2° repeatability, even on 5mm-thick 6061-T6 alloys.
Welding Cells: Automated TIG/MIG systems with robotic precision, in-process NDT validation, and heat-affected zone (HAZ) control for structural integrity.
Powder Coating: Electrostatic application with 25μm±3μm thickness uniformity and 200°C curing consistency for corrosion-resistant finishes.

Tolerance Standards & Control

Adhering to ISO 2768-mK and ASME Y14.5 standards, our proprietary process optimization ensures dimensional stability across all fabrication stages. Precision tolerances are achieved through closed-loop CNC feedback systems and vibration-dampened workstations.

Dimension Type	Standard Tolerance	Precision Tolerance
Linear Dimensions	±0.1 mm	±0.05 mm
Angular	±0.5°	±0.2°
Hole Diameter	±0.05 mm	±0.02 mm
Flatness	0.1 mm/m	0.05 mm/m
Surface Roughness	Ra 3.2 μm	Ra 1.6 μm

Note: Precision tolerances achievable with advanced CNC tooling, real-time process monitoring, and material-specific compensation algorithms for aluminum’s 70 GPa elastic modulus.

Quality Assurance Protocols

Our zero-defect manufacturing philosophy is enforced through multi-layered validation:
CMM Verification: 3D coordinate measuring machines with 0.001mm resolution for full geometric dimensioning (GD&T) compliance.
Material Traceability: Full mill certifications and chemical composition analysis (via XRF) for all raw materials.
Statistical Process Control (SPC): 100% in-process inspection of critical dimensions with real-time data analytics.
Olympic Quality Standard: Every component undergoes 5-stage validation—including visual checks, dimensional audits, and functional testing—before shipment.

Material-Specific Expertise

Aluminum’s thermal sensitivity demands specialized handling. Our team optimizes processes for:
Grade-Specific Protocols: 6061-T6 for structural applications (post-weld heat treatment), 5052-H32 for marine environments (corrosion-resistant annealing), and 3003 for deep-draw formability.
Warpage Mitigation: Pre-stress relief annealing and staged bending sequences to maintain flatness within 0.05mm/m.
Surface Integrity: Non-abrasive handling and controlled heat input during welding to preserve anodizing readiness and cosmetic finishes.

Your Partner in Precision

At Wuxi Lead, we don’t just manufacture—we collaborate. Our engineering team works alongside yours from concept to delivery, ensuring your specifications are met with unwavering precision. With 24/7 technical support and a commitment to zero defects, we deliver more than parts—we deliver confidence.

“When tolerances define success, we engineer the path.”
— Wuxi Lead Precision Machinery Technical Commitment

---

Material & Finish Options

Material Selection & Finishes

Optimizing Performance, Cost, and Manufacturability Through Precision Engineering

Choosing the right material and finish is critical for balancing performance, cost, and manufacturability. At Wuxi Lead, we partner with you to optimize these choices through our one-stop fabrication process, ensuring seamless integration from design to delivery with zero defects. Our engineering team collaborates with procurement managers, mechanical engineers, and product developers to align material properties with functional requirements—eliminating over-engineering while maximizing lifecycle value.

Aluminum Grade Selection – Key Considerations

Aluminum’s versatility stems from its unique balance of strength, weight, and corrosion resistance. However, grade selection directly impacts machining, bending, and final part performance. Our CNC bending machines compensate for aluminum’s lower elastic modulus (68–71 GPa) through real-time force adjustment, achieving ±0.5° angular accuracy even in tight-radius bends—critical for aerospace and medical applications.

Grade	Tensile Strength (MPa)	Elastic Modulus (GPa)	Weldability	Corrosion Resistance	Typical Applications	Cost Impact
6061-T6	310	68.9	Good	Excellent	Structural frames, automotive	Moderate
5052-H32	228	69	Excellent	Excellent	Marine components, fuel tanks	Low
7075-T6	572	71	Poor	Good	Aerospace structures	High
3003-H14	145	69	Excellent	Good	Signage, general-purpose	Very Low

💡 Engineering Insight: For high-stress applications requiring fatigue resistance, 7075-T6 delivers strength but demands precision welding (TIG) to avoid cracking. For marine environments, 5052-H32’s superior corrosion resistance reduces long-term maintenance costs by 30% compared to galvanized steel.

Steel & Galvanized Steel Alternatives

While aluminum dominates lightweight applications, steel and galvanized options provide cost-effective solutions for high-strength or budget-driven projects. Our engineering team cross-validates material choices against your functional requirements to eliminate over-engineering.

Application	Recommended Material	Why	Cost vs Aluminum
High-stress structural parts	CRS/HRS	Higher yield strength (500+ MPa), lower cost per kg	Lower material cost but +30% shipping due to weight
Outdoor marine environments	5052 Aluminum	Superior corrosion resistance vs galvanized steel	Higher initial cost but 40% lower lifecycle cost
Electrical enclosures	Galvanized Steel	Cost-effective EMI shielding	20% cheaper than aluminum but requires additional coating

🔧 Key Takeaway: For projects where weight is secondary to strength (e.g., industrial machinery frames), CRS/HRS offers a 25% cost advantage. However, aluminum’s corrosion resistance and recyclability often deliver better total cost of ownership for outdoor or high-moisture environments.

Finish Options & Performance Impact

Finishes transform raw materials into functional, durable products. Wuxi Lead’s in-house powder coating and anodizing lines integrate with our laser cutting and bending processes—ensuring consistent quality from raw material to finished part. Our ISO 9001-certified quality control systems monitor every step, eliminating secondary operations and reducing lead times by up to 40%.

Finish Type	Process	Key Benefits	Best For	Cost Impact	Wuxi Lead Advantage
Anodizing	Electrochemical	Corrosion resistance, color options, wear resistance	Architectural panels, consumer electronics	Medium	ISO 9001-certified color matching; ±0.5µm thickness control
Powder Coating	Electrostatic spray + cure	Durable, UV-resistant, wide color range	Outdoor equipment, automotive parts	Low-Medium	24/7 thickness monitoring; ±2µm uniformity
Electroplating	Electrodeposition	Conductive surface, corrosion protection	Electrical contacts, connectors	High	Nickel/Chrome plating to ±0.0001″ tolerance
Polishing	Mechanical abrasion	Mirror finish, aesthetic appeal	Medical devices, decorative panels	High	Ra 0.05µm surface finish certification

🌐 Real-World Impact: For solar panel frames (6061-T6 aluminum), our powder coating process maintains ±2µm thickness uniformity across 100% of parts—preventing premature degradation in coastal environments. This eliminates rework costs and extends product life by 5+ years.

Why Partner with Wuxi Lead? Zero Defects. Olympic Quality. 24/7 Support

We don’t just supply parts—we engineer solutions with you. As your trusted manufacturing partner, we deliver:
Zero Defects: 99.98% first-pass yield rate with 100% in-process inspection and AI-driven quality control systems.
Olympic Quality: Tightest tolerances (±0.001″ / 0.025mm) for aerospace-grade components, validated by ISO 17025-certified metrology.
24/7 Customer Service: Dedicated engineering support with <2hr response SLA and real-time production tracking via our client portal.

✨ Our Commitment: From laser cutting (±0.005″ tolerance) to powder coating, every step is optimized for your success. Partner with Wuxi Lead to turn complexity into competitive advantage—where precision meets reliability, and quality is non-negotiable.

Ready to optimize your next project?
📞 Contact our engineering team today for a free material & finish consultation: [email protected] | +86 510 8888 9999

---

Manufacturing Process & QC

From Prototype to Production: Precision Engineered for Your Success

At Wuxi Lead Precision Machinery, we view your project not as a transaction but as a strategic partnership. Our end-to-end process—from initial design validation to mass production—eliminates gaps between prototype and production, ensuring your aluminum sheet metal components meet exacting specifications while accelerating time-to-market. With ISO 9001-certified workflows, real-time SPC monitoring, and a 99.98% first-pass yield rate, we deliver Zero Defects and Olympic Quality outcomes consistently. Our global 24/7 support team ensures seamless communication and urgent issue resolution at every stage.

Design Analysis: Precision Engineering from the Ground Up

Our engineering team conducts a comprehensive DFMA (Design for Manufacturing and Assembly) review to optimize your design for production efficiency and tolerances. Leveraging advanced simulation tools, we verify critical dimensions against ISO 2768-mK standards, ensuring:
Linear tolerances of ±0.05mm for laser-cut aluminum features
Angular tolerances of ±0.5° for CNC-bent profiles
Material selection guidance (e.g., 6061-T6 for high-strength CNC machining or 5052-H32 for superior formability in complex bends)

Example: For a structural aerospace bracket, we identified a 12% cost reduction by adjusting hole placement to avoid stress concentrations—without compromising load-bearing requirements.

Transparent Pricing: Data-Driven Cost Optimization

We provide clear, itemized quotes based on real-time production data—no hidden fees or guesswork. Our pricing model factors in material, complexity, and volume to maximize value:

Cost Factor	Impact on Budget	Our Proactive Approach
Tight Tolerances (±0.02mm)	+15-25%	Optimize tolerances only for critical features to reduce costs
Material Grade (e.g., 6061 vs. 5052)	Up to 18% variance	Recommend cost-effective alternatives without sacrificing performance
Volume >1,000 units	-30% per-unit pricing	Dedicated production scheduling with priority resource allocation
Surface Finish (Powder Coating)	+8-12%	Pre-approve color/texture specs during design phase to avoid rework

All quotes include full material traceability, compliance documentation, and lifetime technical support at no extra cost.

Rapid Prototyping: Validate Design with Production-Grade Accuracy

Prototype your design using the exact same CNC laser cutters, bending presses, and TIG/MIG welders as our production line—ensuring zero surprises in scale-up. Our 3-5 day turnaround includes:
Laser cutting precision: ±0.05mm tolerance (ISO 9001 certified) for 3mm–12mm aluminum sheets
TIG welding integrity: <0.1mm distortion on critical joints, validated via X-ray inspection
100% CMM verification: Dimensional data compared against your CAD model before shipment

Case Study: A medical device client received a functional aluminum enclosure prototype in 72 hours. All 17 critical dimensions were within ±0.03mm—accelerating FDA approval by 4 weeks.

Mass Production: Consistent Excellence at Scale

Our ISO 9001-certified facilities achieve Zero Defects through:
Real-time SPC monitoring: AI-driven sensors track every bend angle, cut edge, and weld point across 100% of production batches
Automated vision systems: 100% dimensional inspection with 0.001mm resolution—no manual checks required
Olympic Quality standards: 99.98% first-pass yield rate across all projects, benchmarked against aerospace-grade tolerances

On-Time Delivery Guarantee:
98% of orders shipped within 24 hours of completion
Dedicated logistics team with real-time GPS tracking for global shipments
24/7 Customer Service: 24/7 hotline for urgent queries, with SLA-backed response times under 15 minutes

“Wuxi Lead’s seamless transition from prototype to production cut our time-to-market by 30%—and we’ve never had a single defective batch.”
— Senior Engineering Manager, Fortune 500 Industrial Equipment Manufacturer

Why Partner With Wuxi Lead?

We don’t just manufacture parts—we engineer solutions. From your first design sketch to the final shipment, our team acts as an extension of your R&D department. With zero defects, Olympic Quality rigor, and 24/7 global support, we ensure your aluminum sheet metal components exceed expectations—every time, on time.

Ready to accelerate your project?
[Contact Our Engineering Team] | [Download Full Tolerance Guide] | [Request a Rapid Prototype Quote]

---

Why Choose Wuxi Lead Precision

Partner with Wuxi Lead Precision Machinery

Where Precision Meets Partnership

Beyond Manufacturing: Your Engineering Ally

We don’t just fabricate parts—we co-engineer solutions. From initial design review to final delivery, our senior CNC engineers collaborate with your team to optimize for manufacturability, cost-efficiency, and performance. This is partnership-driven manufacturing: proactive, transparent, and tailored to your technical and business objectives.

Precision Standards That Define Excellence

Our capabilities exceed industry benchmarks through advanced CNC technology and rigorous process control. Below are key tolerances we consistently achieve—verified via ISO 17025-certified CMM and laser scanning systems:

Process	Industry Standard	Wuxi Lead Precision Achieved	Material Notes
Laser Cutting	±0.005″ (±0.13mm)	±0.002″ (±0.05mm)	Aluminum 6061, 5052, CRS, Galvanized
CNC Bending	±0.5°	±0.2°	Thickness 0.5–6mm (all materials)
Welding (TIG/MIG)	±0.010″ (±0.25mm)	±0.005″ (±0.13mm)	Post-weld finishing options (e.g., polishing)
Powder Coating	±5μm thickness	±2μm thickness	ASTM B117 salt spray tested (1000+ hrs)

Note: Tighter tolerances available for aerospace/medical applications upon request. All data validated against ISO 2768-mK and AS9100 standards.

Zero Defects, Olympic Quality, 24/7 Support

Zero Defects Commitment: 99.9% defect-free production via 100% in-process inspection and automated Statistical Process Control (SPC). Our ISO 9001:2015-certified quality system ensures every part meets your exact specifications—no exceptions.
Olympic Quality Precision: We engineer for the highest standards—delivering tolerances that exceed aerospace (AS9100), medical device (ISO 13485), and automotive (IATF 16949) requirements. Consistency is non-negotiable.
24/7 Customer Service: Dedicated account managers and engineering support available around the clock. Receive real-time project updates, rapid quotes within 2 hours, and proactive communication at every stage—because your timeline is our priority.

Start Your Project with Confidence

Ready to elevate your fabrication process? Wuxi Lead Precision Machinery offers a free Design for Manufacturing (DFM) analysis and quote—no obligation. Our team of senior engineers will optimize your design for cost, speed, and precision while eliminating hidden risks.

Contact us today:
📧 [email protected]
📞 +86-13961886740 (24/7 direct line)

Your vision. Our precision. Together, we build excellence.

---
