Engineering Guide: 4140 Steel Bar

Engineering Insight: 4140 Steel Bar – The Benchmark of Precision in High-Performance Manufacturing

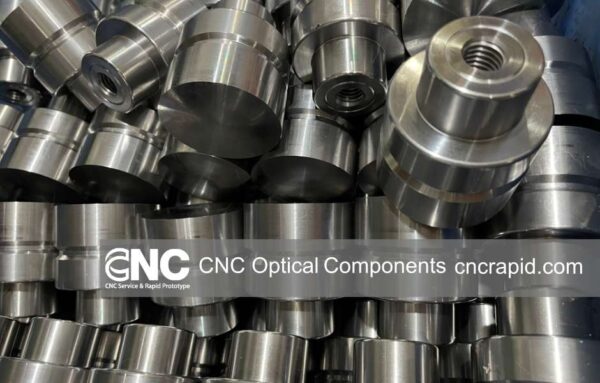

In the realm of custom metal manufacturing, few materials command the respect and widespread application of 4140 steel bar. Known for its balanced combination of strength, toughness, and machinability, 4140 alloy steel serves as a cornerstone in industries where failure is not an option—such as aerospace, defense, oil and gas, and high-performance automotive systems. At Wuxi Lead Precision Machinery, we recognize that the true value of 4140 steel lies not only in its chemical composition but in the precision with which it is machined, heat-treated, and integrated into mission-critical components.

Precision is not merely a manufacturing goal—it is an engineering imperative. The performance of 4140 steel under high stress, cyclic loading, or extreme environments is directly influenced by dimensional accuracy, surface integrity, and consistency in heat treatment. Even minor deviations in tolerance or microstructure can lead to premature fatigue, stress concentration, or component failure. This is why our machining processes are engineered to exceed international standards, ensuring that every bar we process delivers uniform mechanical properties and geometric fidelity.

Wuxi Lead Precision Machinery brings over a decade of specialized experience in handling 4140 steel for high-stakes applications. Our work has contributed to structural components for Olympic-grade sports infrastructure, where safety and longevity are paramount, and to subsystems used in military-grade equipment, where operational reliability under duress is non-negotiable. These projects demand more than technical capability—they require a culture of precision that permeates every stage of production, from raw material sourcing to final inspection.

Our facility employs advanced CNC turning, grinding, and milling technologies, all calibrated to maintain tolerances within ±0.005 mm. We conduct rigorous in-house testing, including ultrasonic inspection, hardness profiling, and microstructural analysis, to validate material integrity. Each 4140 steel bar is traceable to its mill certificate, and every machining run is documented for full quality traceability.

The following table outlines the typical mechanical and physical properties of normalized and heat-treated 4140 steel, as processed under our controlled manufacturing environment:

Property	Value
Tensile Strength (Ultimate)	950–1200 MPa
Yield Strength	750–1000 MPa
Hardness (HRC)	28–34 (after quench & temper)
Elongation at Break	15–20% (in 50 mm)
Reduction of Area	50–60%
Modulus of Elasticity	205 GPa
Density	7.85 g/cm³
Machinability Rating	65% (relative to AISI 1212)

At Wuxi Lead Precision Machinery, we treat every 4140 steel bar not as raw stock, but as the foundation of a high-performance system. Our clients rely on us not just for machining, but for engineering partnership—ensuring that precision is built in, not inspected in.

---

Precision Specs & Tolerances

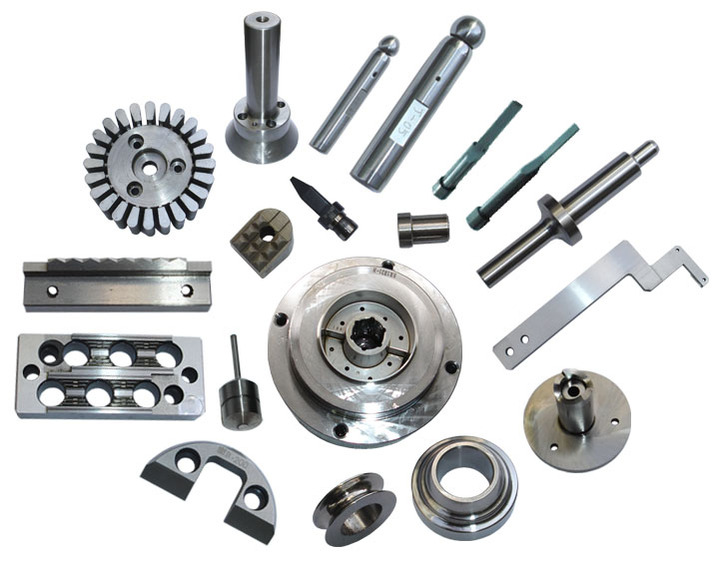

Advanced Machining Capabilities for 4140 Steel Bar Components

Wuxi Lead Precision Machinery delivers uncompromising precision for mission-critical 4140 steel bar applications. Our technical foundation integrates deep material science expertise with state-of-the-art manufacturing infrastructure. 4140 alloy steel presents unique challenges due to its high hardenability and susceptibility to thermal distortion during machining. We address this through proprietary thermal stability protocols, including stress-relieved material sourcing, controlled pre-heat treatment cycles, and in-process temperature monitoring. Every bar undergoes rigorous chemical composition verification to ensure consistent chromium-molybdenum content, directly impacting final component strength and fatigue resistance.

Our primary machining platform comprises 12 DMG MORI 5-axis CNC milling centers, featuring Heidenhain iTNC 640 controls and 24,000 RPM spindles. This configuration eliminates secondary operations by enabling complex geometries—such as contoured aerospace fittings or hydraulic manifold blocks—to be completed in a single setup. The simultaneous 5-axis motion ensures optimal tool engagement angles, minimizing chatter and surface imperfections inherent in 4140’s dense microstructure. Integrated Renishaw probes perform on-machine part validation, compensating for bar diameter variations and thermal drift in real time. This reduces cumulative error potential by up to 70% compared to conventional 3-axis workflows.

Quality assurance is anchored by Zeiss CONTURA G3 Coordinate Measuring Machines (CMM) operating under ISO 17025 accreditation. All critical features undergo full 3D geometric dimensioning and tolerancing (GD&T) analysis, with inspection reports traceable to NIST standards. Surface roughness is quantified via Taylor Hobson profilometers, ensuring Ra values meet stringent aerospace or defense specifications. Our AS9100-compliant documentation package includes material test reports, first-article inspection data, and heat-treatment certificates, providing auditable proof of conformance.

The following table details achievable tolerances for 4140 steel bar components under standard production conditions. These values reflect our capability to exceed ISO 2768 medium-class standards through process optimization:

Tolerance Category	Standard Capability	Tight Tolerance Option	Measurement Method
Geometric (Flatness)	±0.02 mm/m	±0.005 mm/m	CMM / Optical Flat
Dimensional (Holes)	±0.01 mm	±0.003 mm	Air Gage / CMM
Positional (True Position)	±0.03 mm	±0.01 mm	CMM (GD&T Analysis)
Surface Roughness (Ra)	1.6 µm	0.4 µm	Profilometer
Thread Class	6g/6H	4g/4H	Thread Plug/Ring Gage

This precision ecosystem enables clients to achieve significant cost avoidance through reduced scrap rates and elimination of post-process rectification. Our engineering team collaborates directly with customers during DFMA reviews to optimize 4140 component designs for manufacturability, leveraging bar stock utilization analytics to minimize material waste. For high-value applications demanding zero-defect performance, we implement enhanced process controls including 100% in-process CMM checks and microstructure validation via metallographic sampling. Contact our technical sales group to discuss specific project requirements and receive a capability assessment tailored to your 4140 steel bar component.

---

Material & Finish Options

Material Selection Guide: 4140 Steel Bar and Alternatives for Precision Manufacturing

When selecting materials for high-performance custom manufacturing applications, 4140 steel bar stands out as a preferred choice for engineers and designers requiring strength, toughness, and wear resistance. At Wuxi Lead Precision Machinery, we specialize in precision machining of 4140 alloy steel, delivering components that meet stringent industrial demands across oil and gas, aerospace, automotive, and heavy equipment sectors.

4140 steel is a chromium-molybdenum alloyed steel known for its deep hardenability, high fatigue strength, and excellent response to heat treatment. In its annealed condition, it offers good machinability, allowing for complex geometries to be achieved before final hardening. When quenched and tempered, 4140 achieves tensile strengths ranging from 900 to 1200 MPa, making it ideal for shafts, spindles, hydraulic components, and tooling applications subjected to high stress and impact.

While 4140 steel excels in durability and load-bearing performance, alternative materials such as aluminum, titanium, and other steel alloys may be more suitable depending on application-specific requirements. Aluminum, particularly 6061 and 7075 grades, offers a high strength-to-weight ratio and excellent corrosion resistance, making it ideal for aerospace and transportation applications where weight reduction is critical. However, aluminum lacks the wear resistance and thermal stability of 4140 steel in high-load environments.

Titanium alloys, such as Ti-6Al-4V, provide exceptional strength-to-density ratios and outstanding resistance to corrosion, especially in marine and chemical environments. While titanium is more expensive and challenging to machine, its performance in extreme conditions justifies its use in critical aerospace and medical components. Compared to 4140 steel, titanium offers lower thermal conductivity and reduced wear resistance without surface treatments.

For applications requiring enhanced surface properties, finish treatments play a crucial role. While anodizing is commonly associated with aluminum to improve wear and corrosion resistance, it is not applicable to steel or titanium in the same manner. For 4140 steel, surface treatments such as nitriding, chrome plating, or phosphate coating are used to increase hardness, reduce friction, and improve fatigue life. These processes complement the inherent strength of 4140, extending service life in demanding operational conditions.

Below is a comparative overview of key materials used in precision manufacturing:

Material	Tensile Strength (MPa)	Density (g/cm³)	Key Properties	Common Applications
4140 Steel	900–1200	7.85	High strength, wear resistance, toughness	Shafts, tooling, structural parts
Aluminum 6061	310	2.70	Lightweight, corrosion resistant	Aerospace frames, enclosures
Aluminum 7075	570	2.81	High strength, good fatigue resistance	Aircraft structures, military
Titanium Ti-6Al-4V	900–950	4.43	Excellent strength-to-weight, corrosion resistant	Medical implants, aerospace

At Wuxi Lead Precision Machinery, we support clients in selecting the optimal material and finish combination based on functional requirements, environmental exposure, and cost efficiency. Our engineering team provides end-to-end consultation, ensuring that every machined component meets the highest standards of precision and reliability.

---

Manufacturing Process & QC

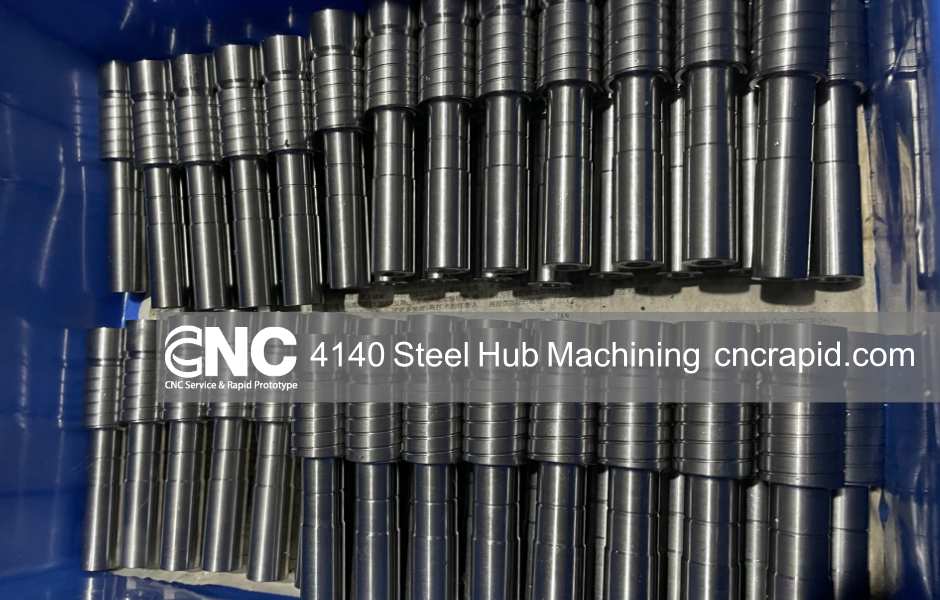

4140 Steel Bar Production Process: Precision Engineering from Concept to Volume

At Wuxi Lead Precision Machinery, our production process for custom 4140 steel bar components is engineered for absolute reliability, ensuring zero defects from initial concept through to high-volume delivery. This rigorous methodology integrates advanced metallurgical control with systematic validation, forming the cornerstone of our high-end manufacturing capability for demanding industrial applications.

The process begins with collaborative engineering during the Design phase. Our technical team works directly with client specifications to define critical parameters including dimensional tolerances, surface finish requirements, and the precise heat treatment profile necessary for the component’s end-use environment. Material certification is paramount; we source premium 4140 alloy steel bars with full mill test reports, verifying chemical composition (particularly carbon, chromium, and molybdenum content) and initial mechanical properties. This foundational step ensures the raw material meets the stringent baseline required for subsequent processing and final performance. Every design input is meticulously documented within our traceability system, establishing the blueprint for consistent execution.

Prototyping is not merely a validation step but a critical process qualification stage. Utilizing the exact production tooling and CNC machining centers intended for volume runs, we manufacture initial sample components. These prototypes undergo comprehensive destructive and non-destructive testing per ASTM standards. This includes tensile testing, hardness mapping across critical sections, microstructure analysis to confirm proper grain structure post-heat treatment, and dimensional verification using calibrated CMM equipment. Any deviation triggers immediate root cause analysis and process refinement before progression. This phase validates the entire manufacturing sequence – machining parameters, heat treatment cycles (austenitizing, quenching, tempering), and finishing operations – proving the process capability to consistently achieve the target specifications under controlled conditions.

Transitioning to Mass Production, the validated process is executed with unwavering discipline under our Zero Defects framework. Full material traceability is maintained from bar stock heat number through every operation. In-line process controls are stringent: real-time monitoring of CNC machine parameters, automated hardness testing at defined intervals during heat treatment, and 100% dimensional verification of critical features using vision systems or CMMs on a defined sampling plan per AS9100 principles. Statistical process control (SPC) charts track key variables, enabling proactive adjustments. Final inspection encompasses full dimensional conformance, surface integrity checks, and verification of all certified mechanical properties. Non-conforming material is immediately segregated, and closed-loop corrective actions prevent recurrence. This integrated approach guarantees that every 4140 steel bar component shipped meets the exacting standards required for mission-critical applications.

Critical 4140 Steel Mechanical Properties After Heat Treatment

Property	Typical Value Range	Test Standard
Tensile Strength	950 – 1200 MPa	ASTM A370
Yield Strength (0.2% offset)	800 – 1050 MPa	ASTM A370
Hardness (HRC)	28 – 36	ASTM E18
Elongation in 2″ (%)	15 – 22	ASTM A370
Reduction of Area (%)	50 – 65	ASTM A370

---

Why Choose Wuxi Lead Precision

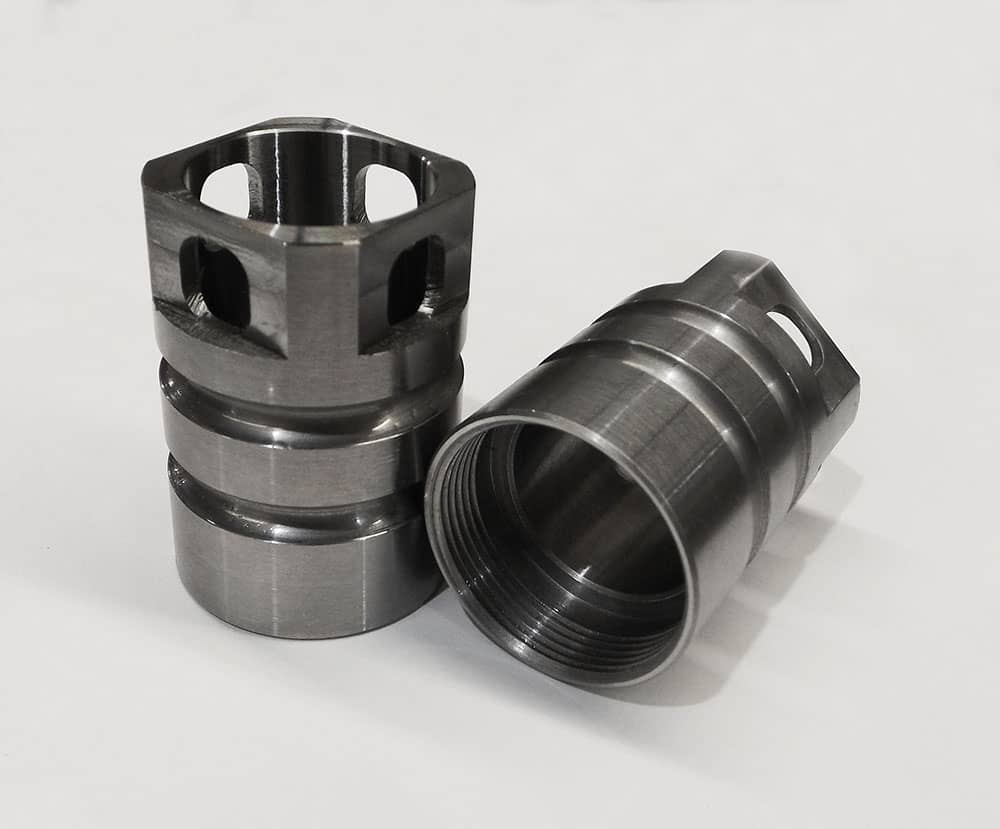

When it comes to precision manufacturing with high-performance materials, the choice of alloy and the expertise behind its processing are equally critical. At Wuxi Lead Precision Machinery, we specialize in custom metal manufacturing using 4140 steel bar—a chromium-molybdenum alloy renowned for its high fatigue strength, toughness, and wear resistance. Whether your application demands aerospace components, oil and gas tooling, or heavy-duty industrial shafts, partnering with us ensures your parts meet the most exacting standards.

4140 steel is a workhorse in demanding engineering environments, but unlocking its full potential requires advanced machining capabilities, precise heat treatment control, and a deep understanding of material behavior under stress. Our facility in Wuxi, China, is equipped with state-of-the-art CNC lathes, milling centers, and grinding systems, all operated by a team of seasoned engineers and machinists. We don’t just cut metal—we engineer solutions tailored to your technical requirements, dimensional tolerances, and production volumes.

We understand that every project has unique challenges. That’s why our process begins with consultation. We work closely with your engineering team to review design specifications, recommend optimal heat treatment cycles (such as quenching and tempering to achieve desired hardness), and suggest design improvements for manufacturability. From prototype development to full-scale production runs, we maintain rigorous quality control, including material traceability, in-process inspections, and final dimensional and metallurgical verification.

Our commitment to excellence is reflected not only in our machinery but in our certifications and processes. We adhere to international quality standards and provide full documentation, including material test reports (MTRs) and inspection certificates, ensuring your components meet regulatory and compliance requirements.

Below are typical specifications we support for 4140 steel bar machining:

Specification	Detail
Material Grade	AISI 4140, SCM440, 42CrMo4
Diameter Range	10 mm – 500 mm
Length	Up to 6,000 mm (custom lengths available)
Tolerance	As per ISO 2768 or customer drawing
Heat Treatment	Annealed, Q&T (custom hardness)
Surface Finish	Ra 0.8 μm to Ra 6.3 μm (customizable)
Machining Capabilities	Turning, milling, drilling, grinding, threading
Certifications	ISO 9001:2015, Material Traceability (MTR)

Partnering with Wuxi Lead Precision Machinery means gaining a reliable, technically proficient manufacturing ally in China. We bridge the gap between design intent and physical performance, delivering components that stand up to the most rigorous operational demands.

For expert machining of 4140 steel bar tailored to your project needs, contact us today. Send your drawings and inquiries to [email protected] and discover how we can support your next precision manufacturing challenge.

---
